4.2.1 Install AC Charger

※ 4.2InstallationSteps

4.2.1.1ECA-S07/11K-BS0

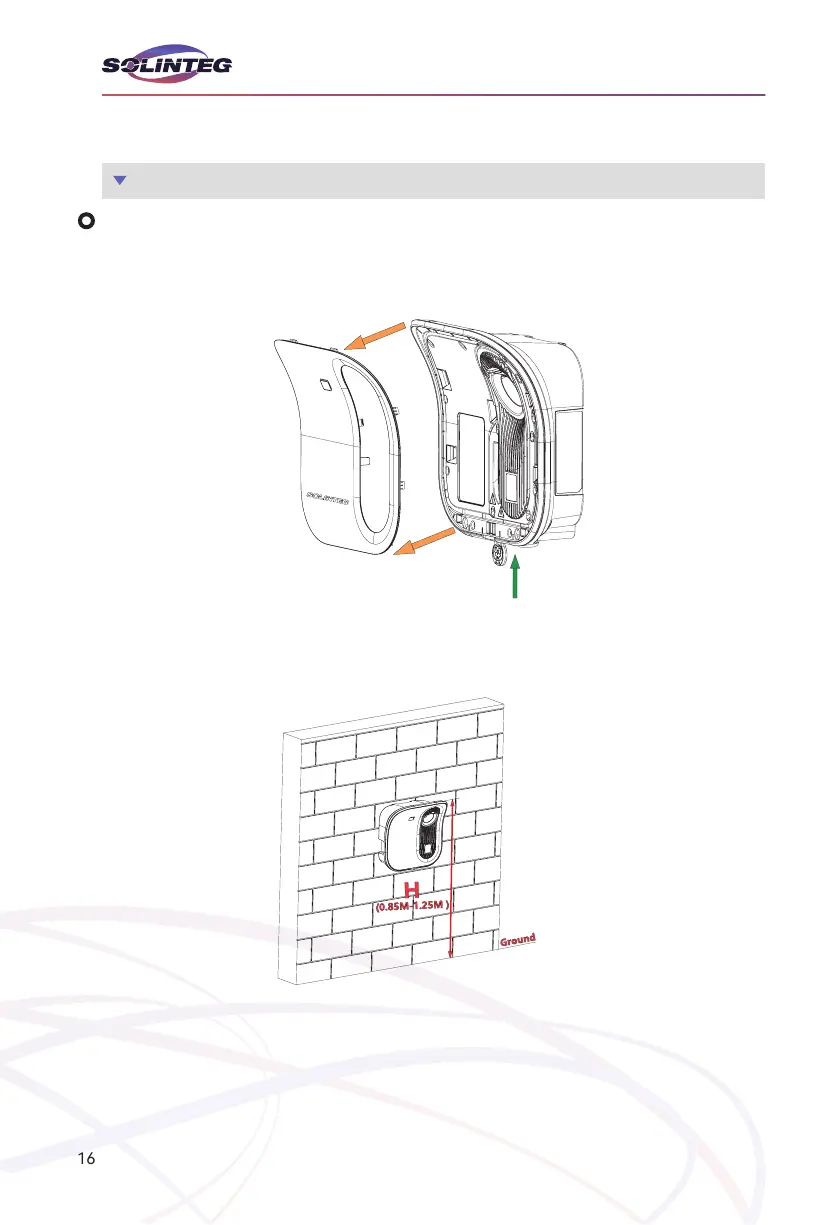

Step1. No matter wall mounting one or pole mounting one, use the key to open the decora-

tive cover of the pole.

•If Wall Mounting

Step2. Please conrm and mark the installation position of the charging pole. The central po-

sition of the charging pole should be at least 0.85m above the ground.

Step3. Use a Ф8 drill bit for the wall holes with 40mm deep, and inse 4 ф 8*60 expansion

tubes, then put the top two expansion tubes into self-tapping screws (note: the top two

self-tapping screws ange end distance is reseed about 6mm distance from the wall, can

be used to open the key auxilia calibration distance).
