23
User Manual
ECA-B Series

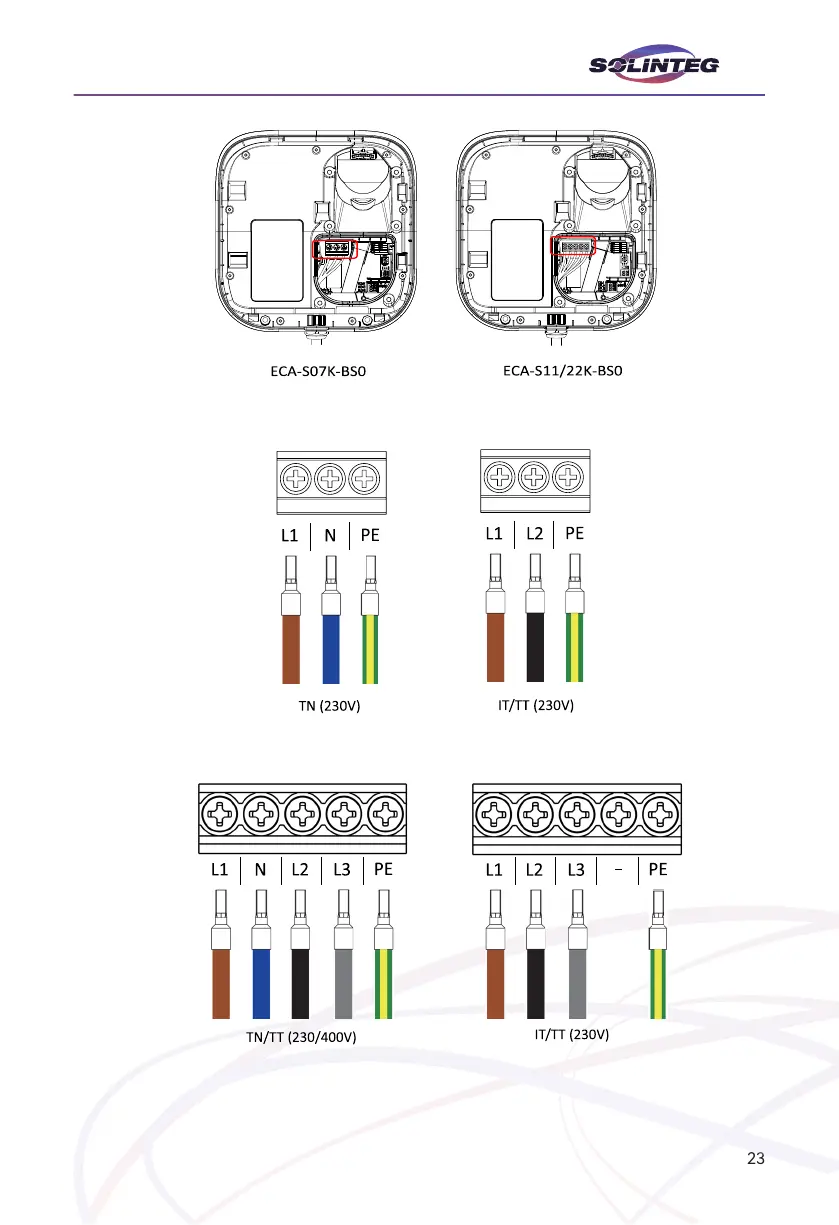

Dierent wiring modes of ECA-S07K-BS0 inlet lines are shown as below.
Dierent wiring modes of ECA-S11/22K-BS0 inlet lines are shown as below.
