21
User Manual
ECA-B Series

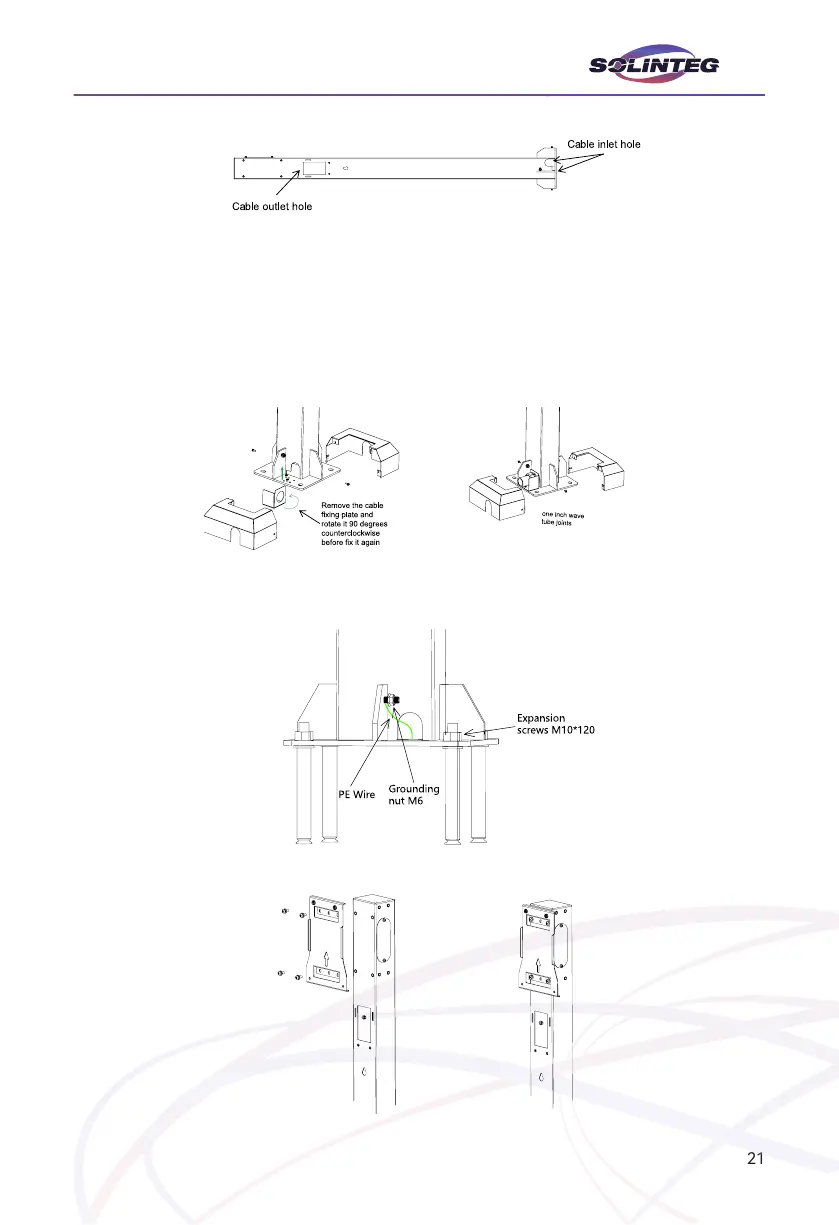

This pole suppos bottom and side incoming cables. When entering from the side, it is nec-
essa to remove the cable xing plate and rotate it 90 degrees counterclockwise, and then
install it on the column bottom plate. The cable xing plate suppos the installation of one
inch wave tube joints. (If threading from the bottom of the pole, the above steps are not re-
quired)
Step3. Fix the pole to the ground using M10*120 expansion screws, and tighten the ground-
ing nut M6 to tighten the PE wire.
Step4. Fix the Mounting Accesso to the pole using M6*16 To screws.
