User Manual
ECA-B Series
Step4. Hang the charger on the two extended screws at the top of the mounting accesso,
and inse the two M6*16 screws at the bottom through the front screw mounting hole of
the charger to x the charger.
•If Pole Mounting

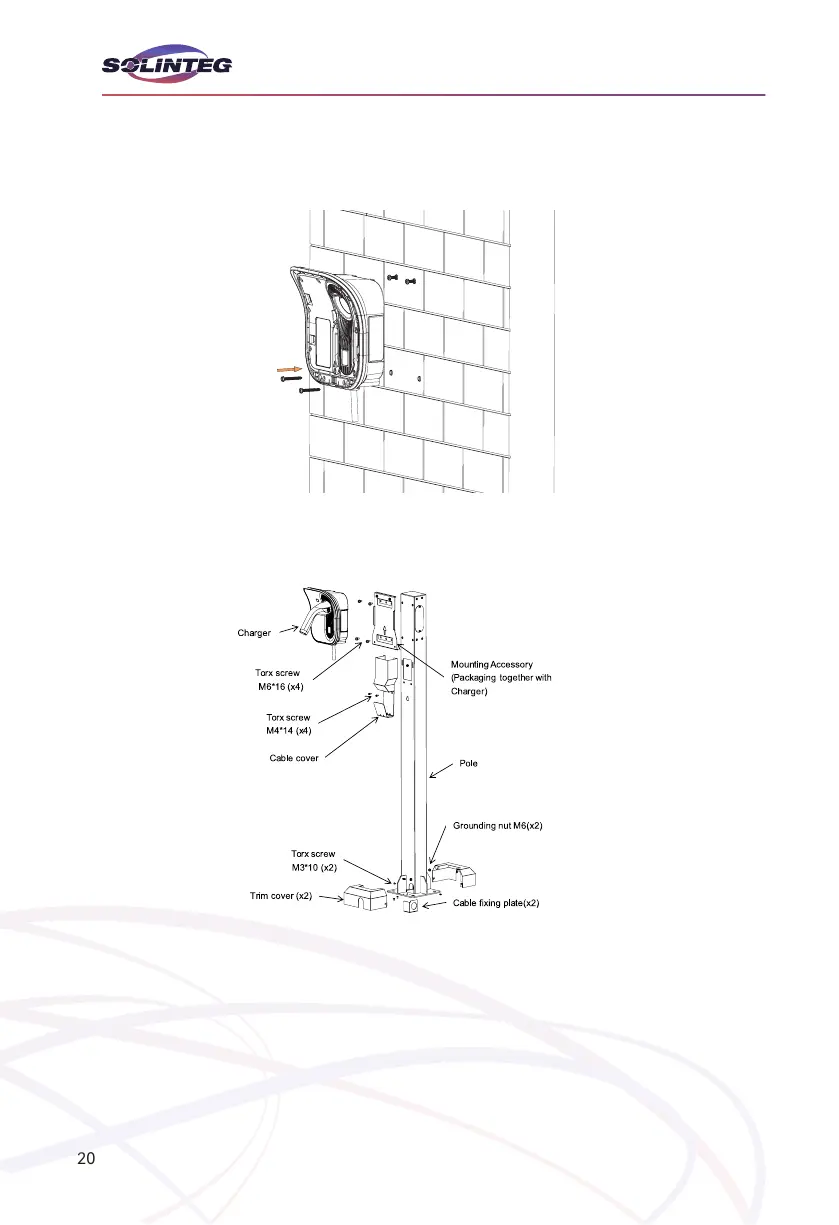

The general assembly drawing is shown as below.
Tool list：Percussion drill, Cross Screwdriver, Tool hammer, Adjustable wrench, A set of
To screwdriver with pillar core.
Step2. Before installing the pole, remove the trim cover and cable cover, and place the pole
at on the ground, put the charging cable through the cable inlet hole and the cable outlet
hole.
