User Manual

ECA-B Series

4.2.1.2ECA-S022K-BS0

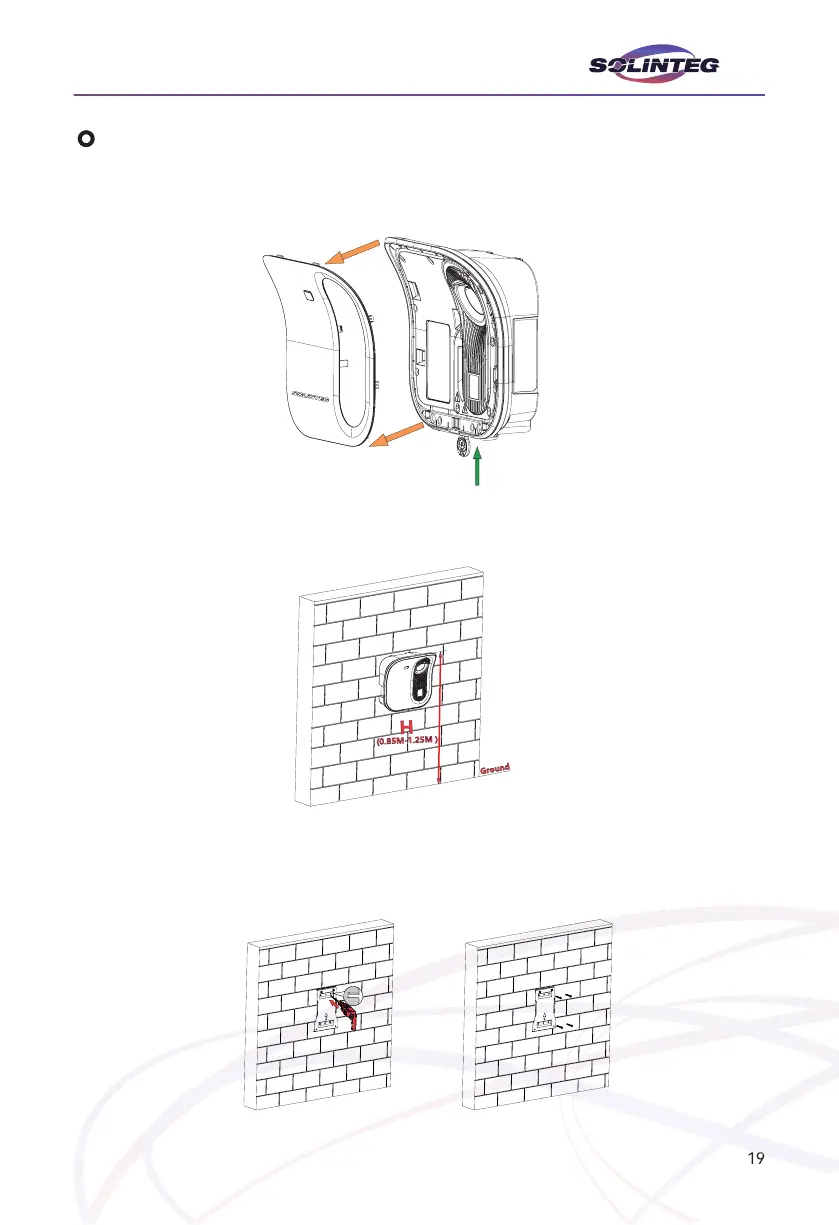

Step1. No matter wall mounting one or pole mounting one, use the key to open the decora-

tive cover of the pole.

•If Wall Mounting

Step2. Please conrm and mark the installation position of the charging pole. The central po-

sition of the charging pole should be at least 0.85m above the ground.

Step3. Use a marking pen to mark the 4 installation hole positions of the mounting accesso

on the wall, and then drill 4 holes with a diameter of 8mm and a depth of 50mm on the wall

using an impact drill, and nally use 4 M6 * 50 expansion screws to x the mounting acces-

so to the wall.

50�mm
