18
User Manual
ECA-B Series
Tool list：Percussion drill, Cross Screwdriver, Tool hammer, Adjustable wrench, A set of
To screwdriver with pillar core.

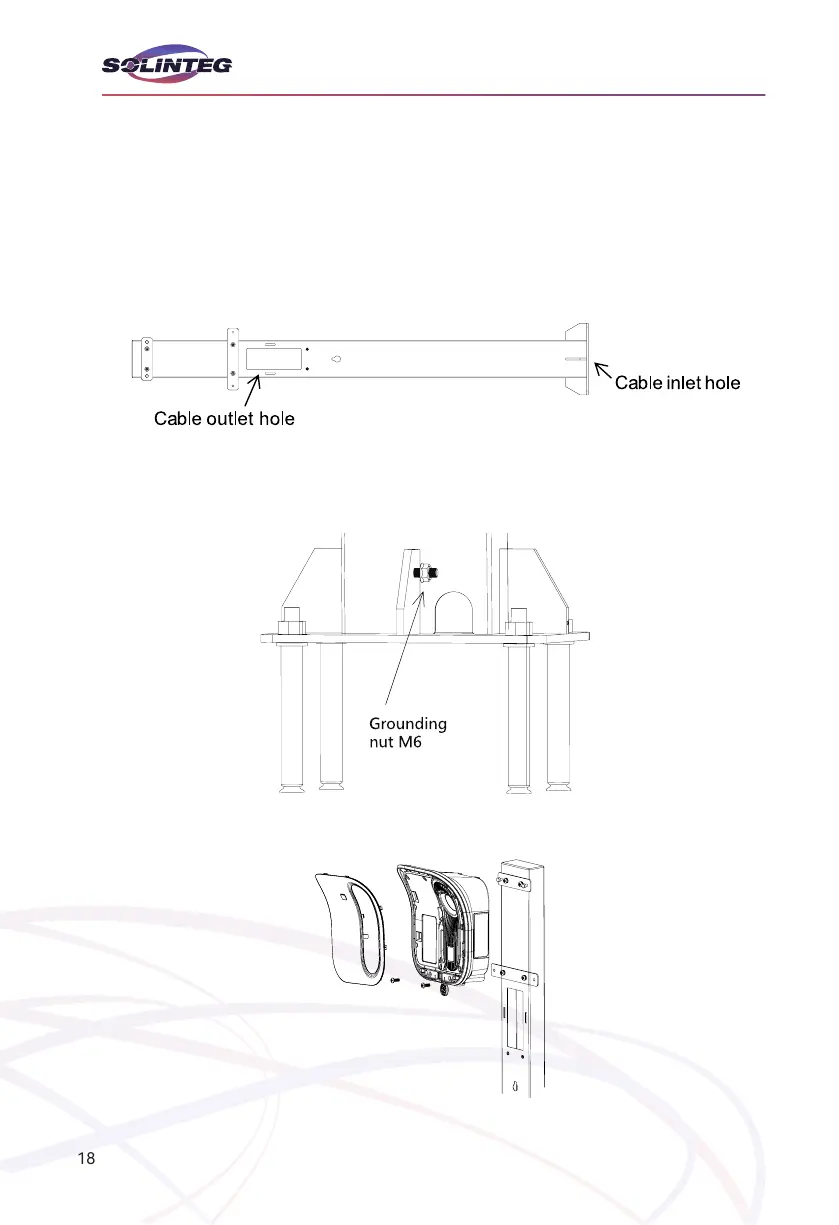

Step2. Before installing the pole, remove the trim cover and cable cover, and place the pole
at on the ground, put the charging cable through the cable inlet hole and the cable outlet
hole.
Step3. Fix the pole to the ground using M10*120 expansion screws, and tighten the ground-
ing nut M6.
Step4. Hang the charger on the screws above the pole, and then drive two screws from the
front to x the charger.
