3. Installation
3.1.1.1 Examples of correct and incorrect installations
3.1.2 Other environmental considerations
3.1.2.1 Consult technical data
Consult the specifications section (section 9) for additional environmental conditions
(protection rating, temperature, humidity, altitude, etc.).
3.1.2.3 Vertical wall installation
For vertical installation, this model of Solis inverter should be mounted vertically
(90 degrees or backwards in less than or equal to 15 degrees).

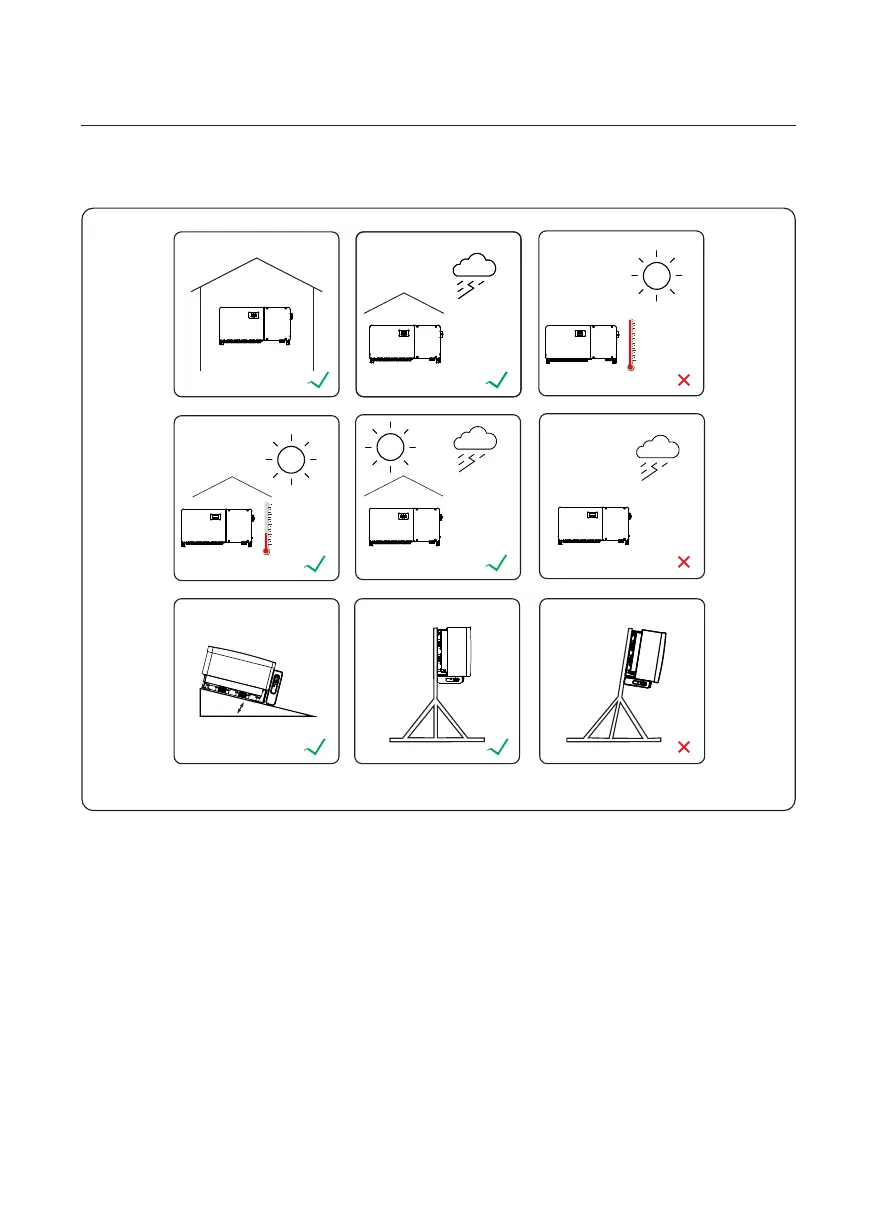

Figure 3.1 Recommended Installation locations
≥15°
3.1.2.2 Horizontal installation
For horizontal installation, this model of Solis inverter should be mounted horizontally
(upwards in more than 15 degrees off the horizontal plane).
9
Indoor
Direct Sun
Shade Cover
Shade Cover
Direct Rain
Shade Cover
Rating
NEMA 4X
