4. Installation4. Installation
2.5~6.0
6.0
Cable type
Cross section（mm²）
Range
Industry generic grid cable
Recommended value
Table 4.2 Grid cable size

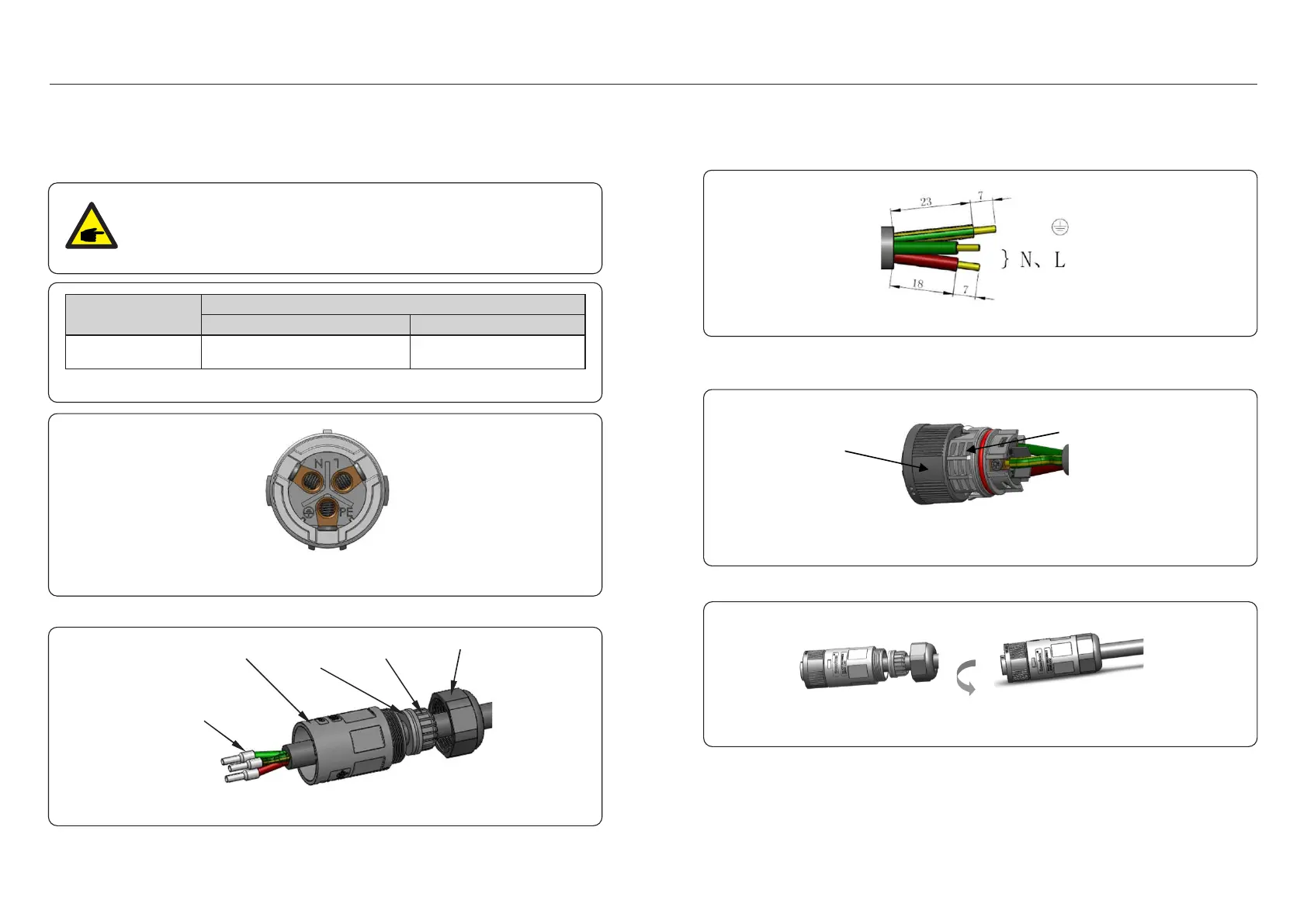

Figure 4.13 AC Grid Terminal Connector Inside
Each Solis S6 Single Phase Inverter is supplied with an AC grid terminal connector.
Figure 4.14 AC Grid Terminal Connector
The steps to assemble the AC grid terminal connectors are listed as follows:
1. Disassemble the AC connector. Strip the AC wires about 7mm.
Figure 4.15 Stripped AC Wires
Figure 4.16 Connect Wires to the Terminal
Figure 4.17 Tighten up the Cap on the Terminal
4.3.2 Connect grid side of inverter
For all AC connections, 2.5- 6mm cable is required to be used. Please make sure the
2
resistance of cable is lower than 1 ohm. If the wire is longer than 20m, it's recommended
to use 6mm cable.
2
There are"L","N","PE"symbols marked inside the connector, the Line
wire of grid must be connected to“L”terminal, the Neutral wire of grid must
be connected to "N" terminal and Earth wire must be connected to "PE".
2. Fix the wires into the correct postion. Torque 0.8N.m
Please try to pull out the wire to make sure the it’s well connected.
3. Insert Seal and Clamp Finger into body ,then tighten the nut, torque 2.5+/-0.5N·m.
Code end terminal
Body
Seal body
Claw
Nut
Locker
Housing
.17..16.
