3. Goods Supplied
The SOLO 433 High Pressure Pump is supplied complete with the following equipment:
• Basic unit
o Complete unit but without spray wand
• Spray wand with pre-assembled nozzle set
• Instruction manual
4. Important functional assemblies
Engine unit:
1. Choke lever
2. Spark plug cap
3. Muffler
4. Fuel tank lid
5. Starter handle
6. Air filter
7. Primer
8. Throttle adjustment lever
9. Stop button
10. Pressure regulator
Spray equipment:
11. Liquid tank
12. Tank lid -
Opening to fill liquid into tank
(Removable filter basket is
supplied in the filler opening.)
13. Lid for drainage of spray liquid
14. Pressure hose
15. Trigger handle
16. Pressure gauge
17. Spray wand
18. Nozzle insert

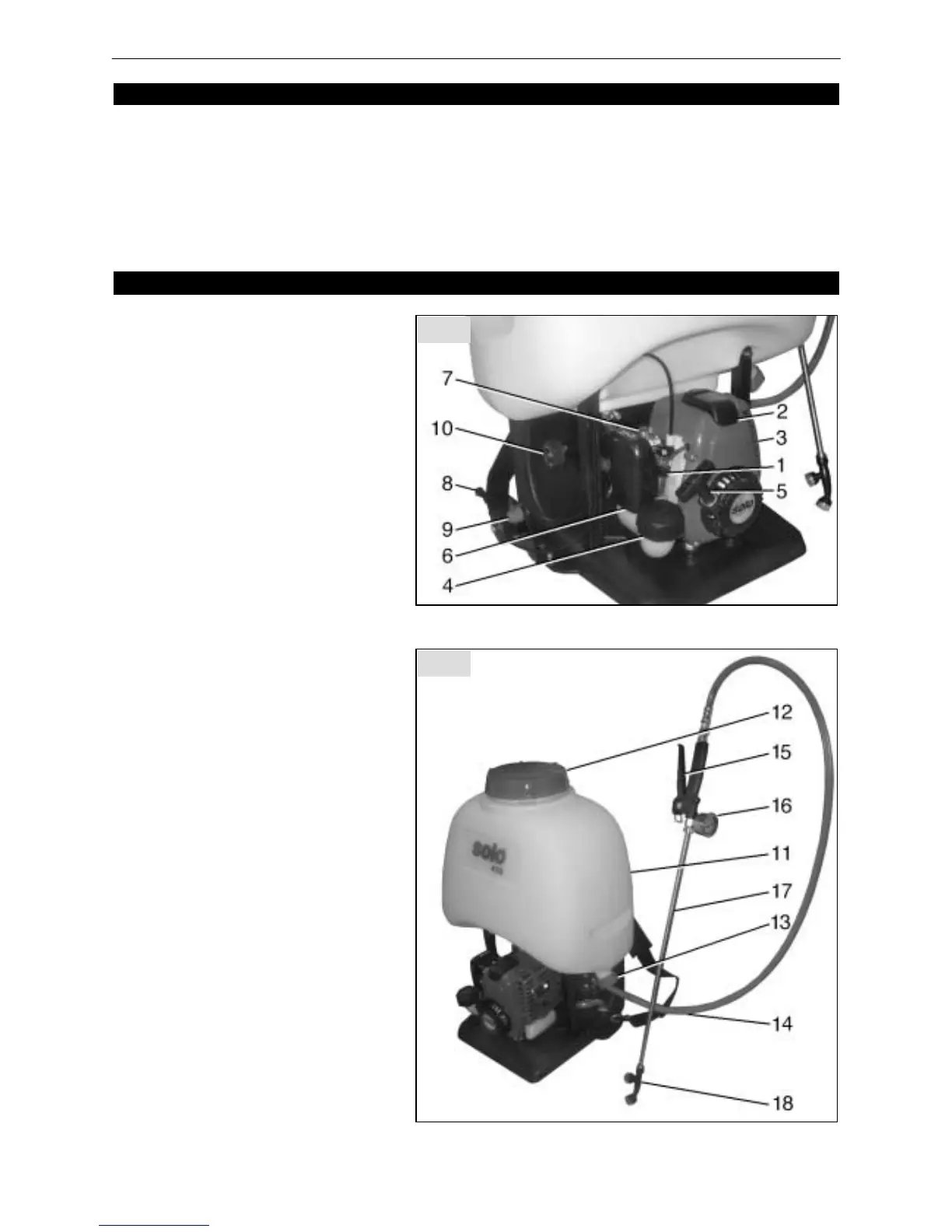

Fig. 1
Fig. 2
