soloprotect ID - Figure 16: LCD Symbols; Table 3: LED;LCD Indication Table

DISTRIBUTION: INTERNAL + SOLOPROTECT CUSTOMERS
SoloProtect ID US: User Guide
US SoloProtect ID User Guide v2.0 d1909189
© SoloProtect Ltd, 2018 Page 24 of 31
Device state
Symbol
LED
Meaning
2 signal bars
Amber
Signal quality medium
1 signal bar
Red
Signal quality low
0 signal bars
Red
Signal quality – none or critical
Alert
Amber (2 secs)
An Amber Alert is in progress
(Device Check in the USA and
Canada)
Alert
Red (2 secs)
A Red Alert is in progress
GNSS
Blue (flash)
Searching for a valid GNSS
location fix
GNSS
Blue (5 secs)
A valid GNSS location fix was
found
Amber Alert
(Device Check
In the USA and
Canada)
Alert
Amber
Call being connected, and then
also for last 10 seconds of call
Alert
Amber (flash)
Call connected (until last 10
seconds)
Red Alert
Alert
None
Red alert active
Incapacitation
(Mandown)
Alert
Red
Pre Alert and subsequent
Incapacitation alarm active
Multi-Function
Call
(Ready2Talk)
None
Blue
Call being connected, and then
also for last 10 seconds of call
None
Blue (flash)
Call connected (until last 10
seconds)
At power on
All symbols, then
battery/signal (flash)
Cycle through colours,
then Red (flash)
Critical Battery or Signal
battery/signal (alternate
flash)
Red (alternate flash),
then device power off
Signal Fault or Issue

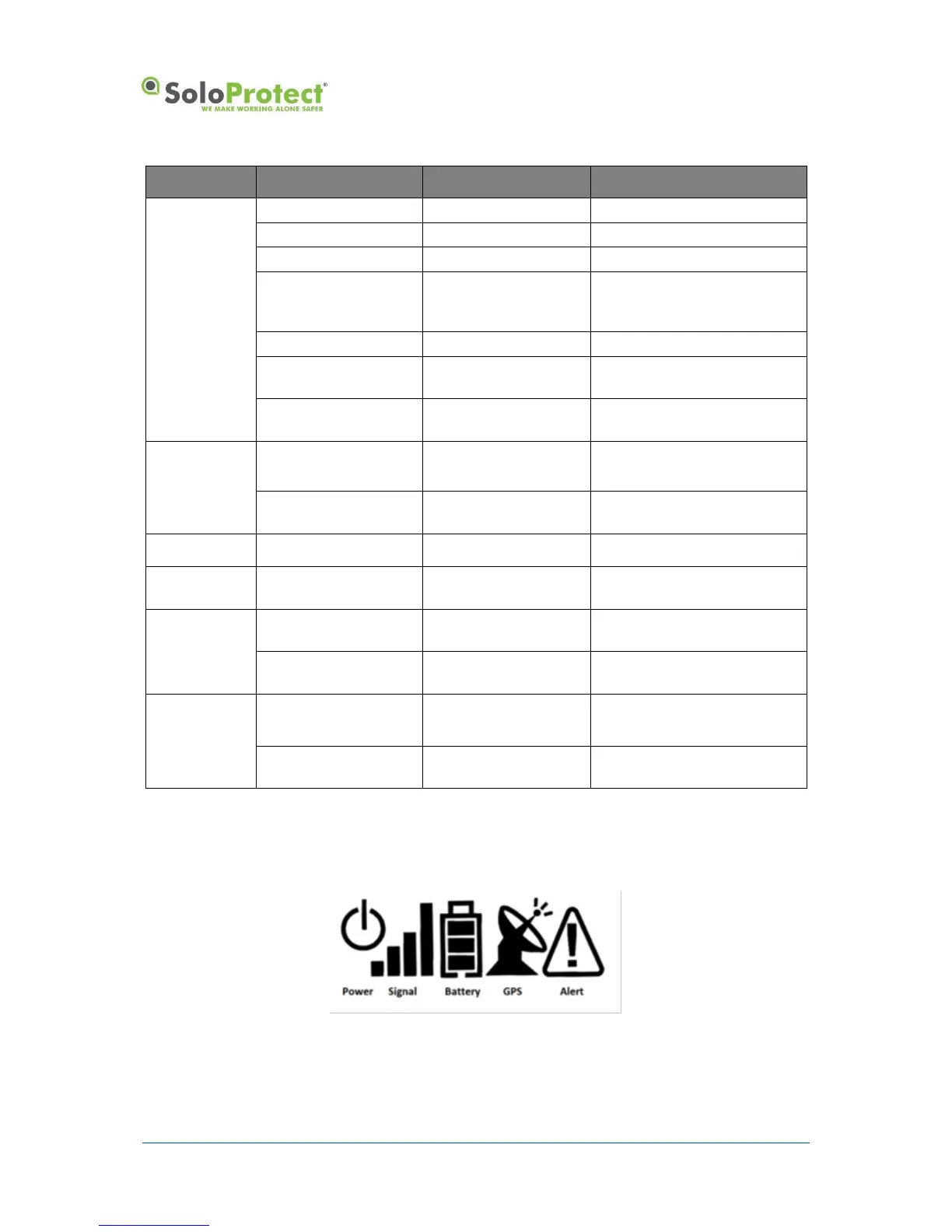

Table 3: LED/LCD Indication Table
Figure 16: LCD Symbols
