12
IMPORTANT At this point, you will need to determine if there is enough room to install the motor on the end
of the headrail, or if it needs to be installed in the center.

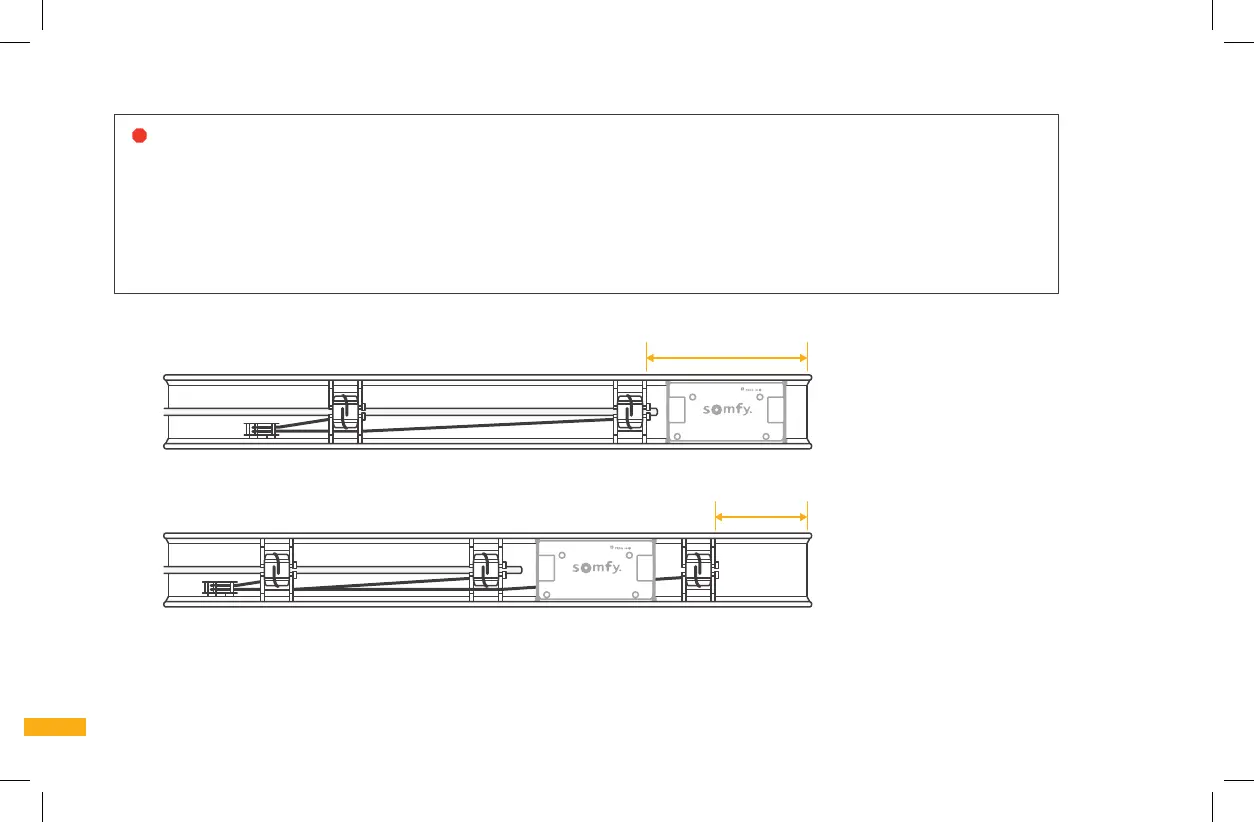

If the distance between the end of the headrail to the edge of the tilt tumbler is 5 inches (127mm) or more, follow
the instructions for an end-mount installation (Step 3).
If the distance is shorter than 5 inches (127mm) proceed to Step 4 for a center-mount installation.
Also, ensure that the tilt rod will pass through the full length of the motor assembly before proceeding.
5” (127mm)
or more
less than
5” (127mm)
END-MOUNT INSTALLATION
CENTER-MOUNT INSTALLATION
EN
