7.7.5.2 BACKUP FLIGHT DISPLAY
The S201 is equipped by a backup flight instrument display on the right side of
the instrument panel.
The KI 300 Electronic Attitude Indicator is a panel mounted attitude, airspeed,
altitude, vertical speed and slip instrument. The instrument is self-contained and
directly incorporates all of the sensors required to measure and display the listed
flight parameters.
All information is displayed on a color 3.5” diagonal LCD display in traditional
aerospace symbology. The unit also contains a rechargeable battery capable of
providing continued operation in the event of aircraft electrical failure.

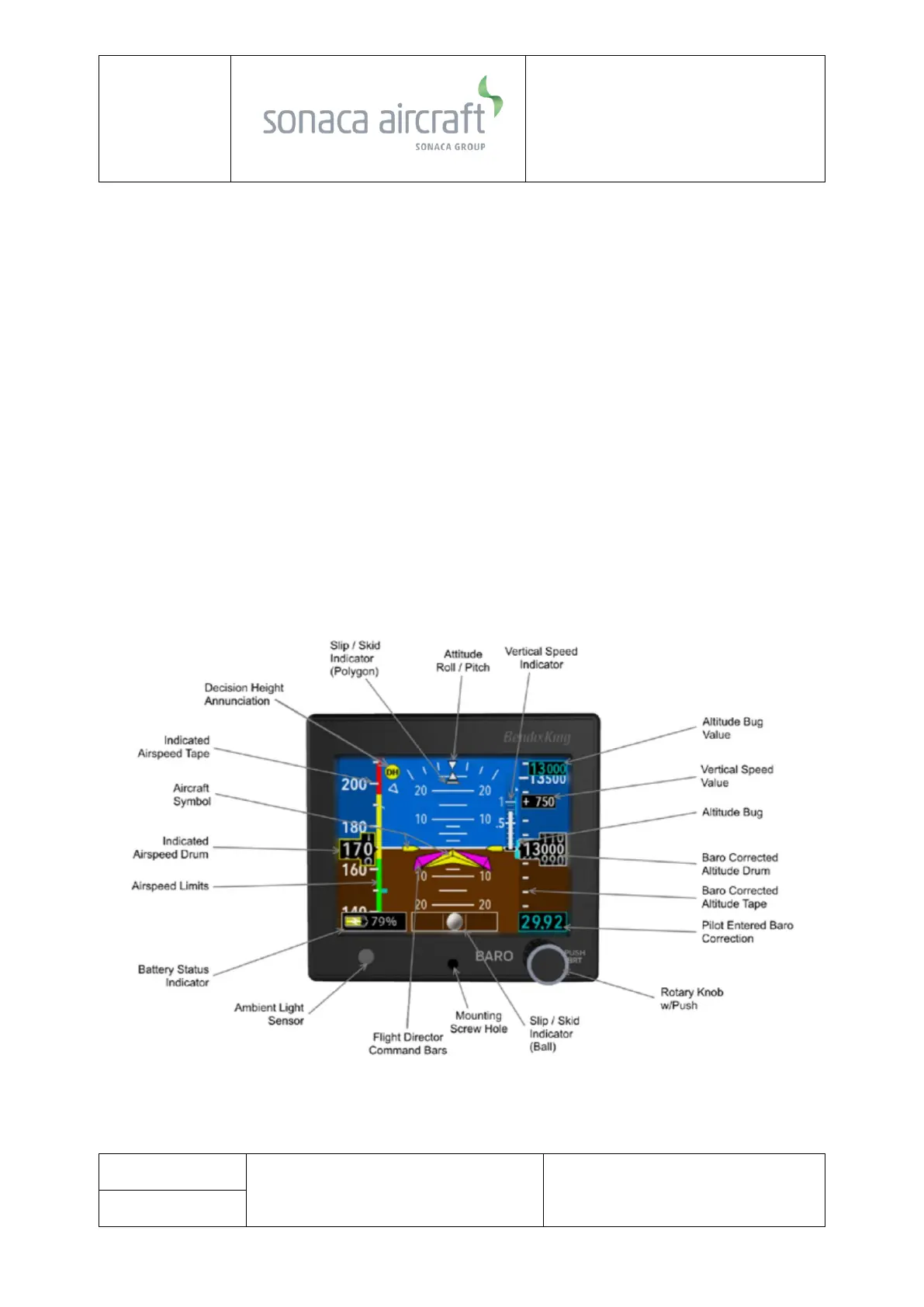

The following shows the on-screen functions and pilot controls once the system
has stabilized:
