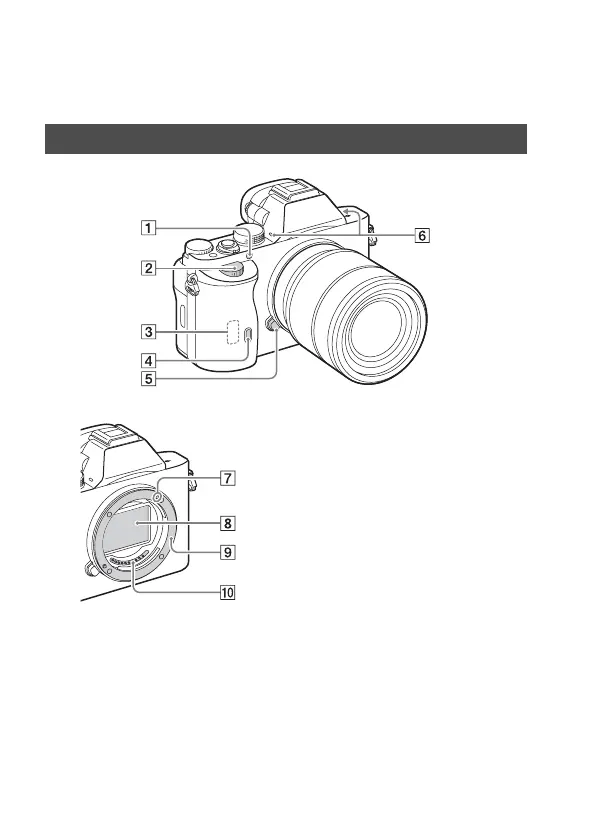

Identifying parts
See the pages in parentheses for details on operation for the parts.
When the lens is removed
A AF illuminator (35)/Self-timer
lamp
B Front dial
C Wi-Fi sensor (built-in)
D Remote sensor
E Lens release button
F Built-in microphone*
1
G Mount index
H Image sensor*
2
I Mount
J Contacts*
2
*1 Do not cover this part during movie
recording.
Doing so may cause noise or lower
the volume.
*2 Do not directly touch these parts.
Front side
