Sony BDP-S301 - Disassembly and Reassembly; Disassembly; Disassembly Flow; Upper Case

2-1
SECTION 2
DISASSEMBLY AND REASSEMBLY
BDP-S300/S301
2-1. DISASSEMBLY
•This set can be disassembled in the order shown below.
2-1-1. DISASSEMBLY FLOW
2-1-2. UPPER CASE
(Page 2-1)
2-1-5. MAIN BOARD
(Page 2-3)
2-1-6. AU-258 BOARD
(Page 2-3)
2-1-7. POWER BLOCK
(Page 2-4)
2-1-3. TRAY COVER ASSY
(Page 2-2)
2-1-4. BD DRIVE (SERVICE USE)
(Page 2-2)
SET
Note: Follow the disassembly procedure in the numerical order given.

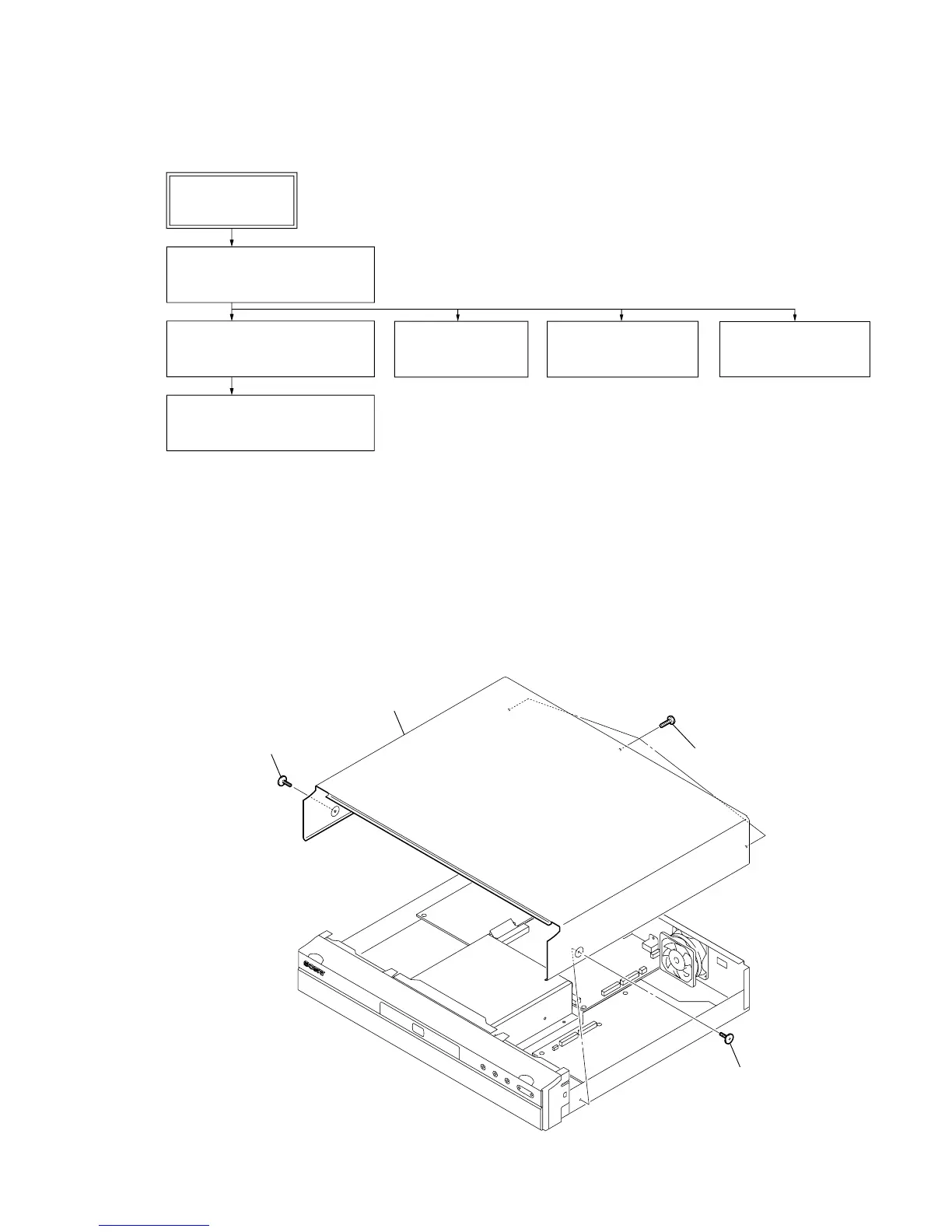

2-1-2. UPPER CASE
1 tapping screw
1 tapping screw
2 three screws
3 upper case
