Sony BDP-S301 - Repair Parts List; Exploded Views; Case Assy

6-1
1
2
3
A001
5
not supplied
5
main chassis block
4
7
BDP-S300/S301
NOTE:
• -XX and -X mean standardized parts, so they may
have some difference from the original one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
• Items marked “*” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
• The mechanical parts with no reference number in
the exploded views are not supplied.
• Accessories and packing materials are given in the
last of the electrical parts list.
•Abbreviation
AUS: Australian model
CND : Canadian model
E32 : Latin American model
RUS: Russian model
SP : Singaporean model
TH : Thai model
SECTION 6
REPAIR PARTS LIST

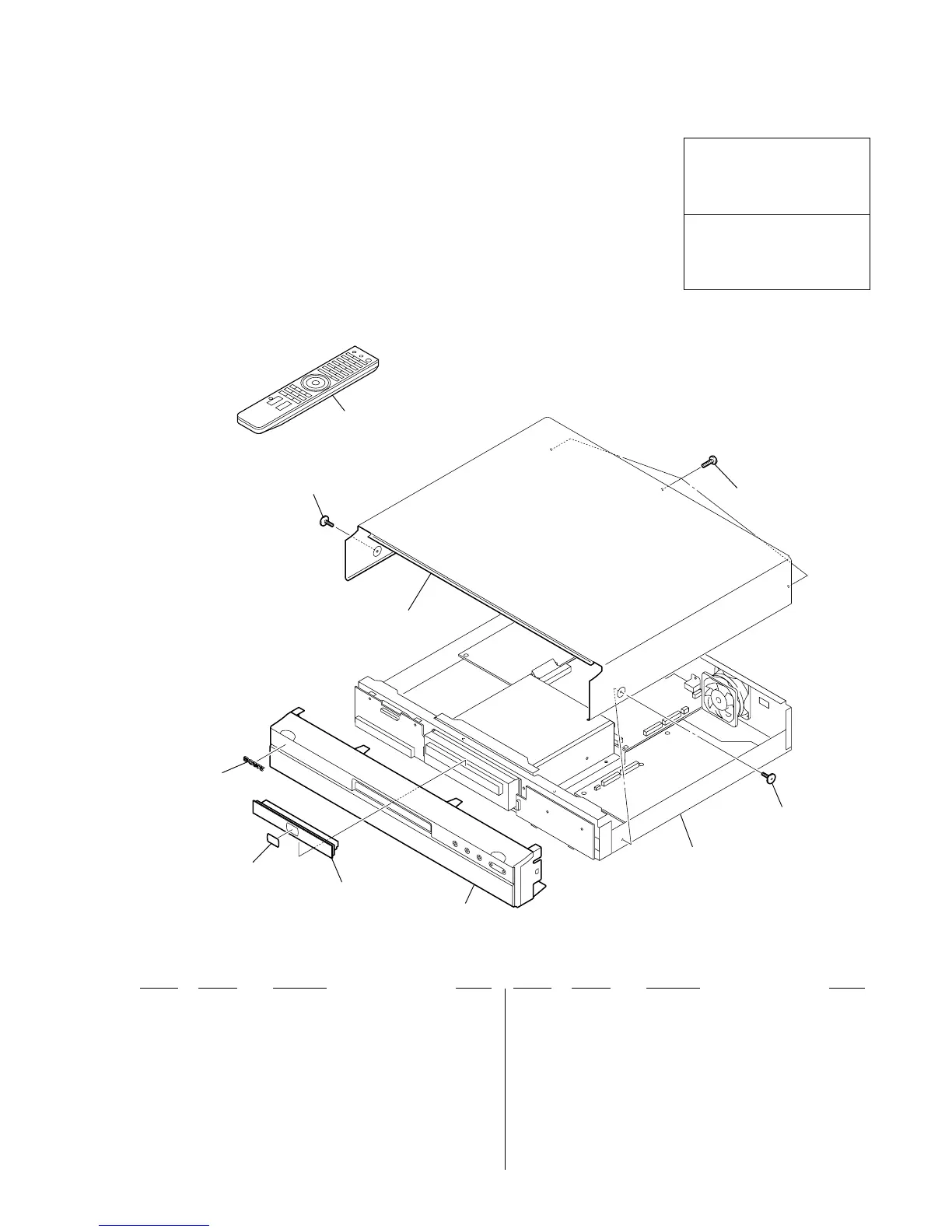

6-1. EXPLODED VIEWS
6-1-1. CASE ASSY
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 X-2177-651-1 PANEL ASSY, FRONT
(S300BJ/S300BJP/S300BM)
1 X-2178-128-1 PANEL ASSY, FRONT (S301BJ/S301BM)
2 X-2177-652-1 COVER ASSY, TRAY
(S300BJ/S300BJP/S301BJ)
2 X-2186-585-1 COVER ASSY, TRAY (S300BM/S301BM)
3 2-686-188-02 PLATE, BD INDICATION
4 4-942-568-41 EMBLEM (NO.5), SONY
5 3-070-883-71 SCREW, TAPPING
7 A-1267-558-A CASE BLOCK ASSY (SERVICE USE SKZ)
(S300BJ/S300BJP/S301BJ)
7 A-1313-101-A CASE BLOCK ASSY (SERVICE USE SOEM)
(S300BM/S301BM)
A001 1-479-848-31 REMOTE COMMANDER (RMT-B101A)
(S300BJ/S300BJP/S300BM: US, CND/
S301BJ/S301BM)
A001 1-479-848-41 REMOTE COMMANDER (RMT-B101A)
(S300BM: E32)
A001 1-480-207-21 REMOTE COMMANDER (RMT-B101P)
(S300BM: AEP, UK, RUS, SP, TH, AUS)
Les composants identifiés par une
marque 0 sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
The components identified by mark
0 or dotted line with mark 0 are
critical for safety.
Replace only with part number
specified.
