Sony BDP-S301 - Main Chassis Block

6-2

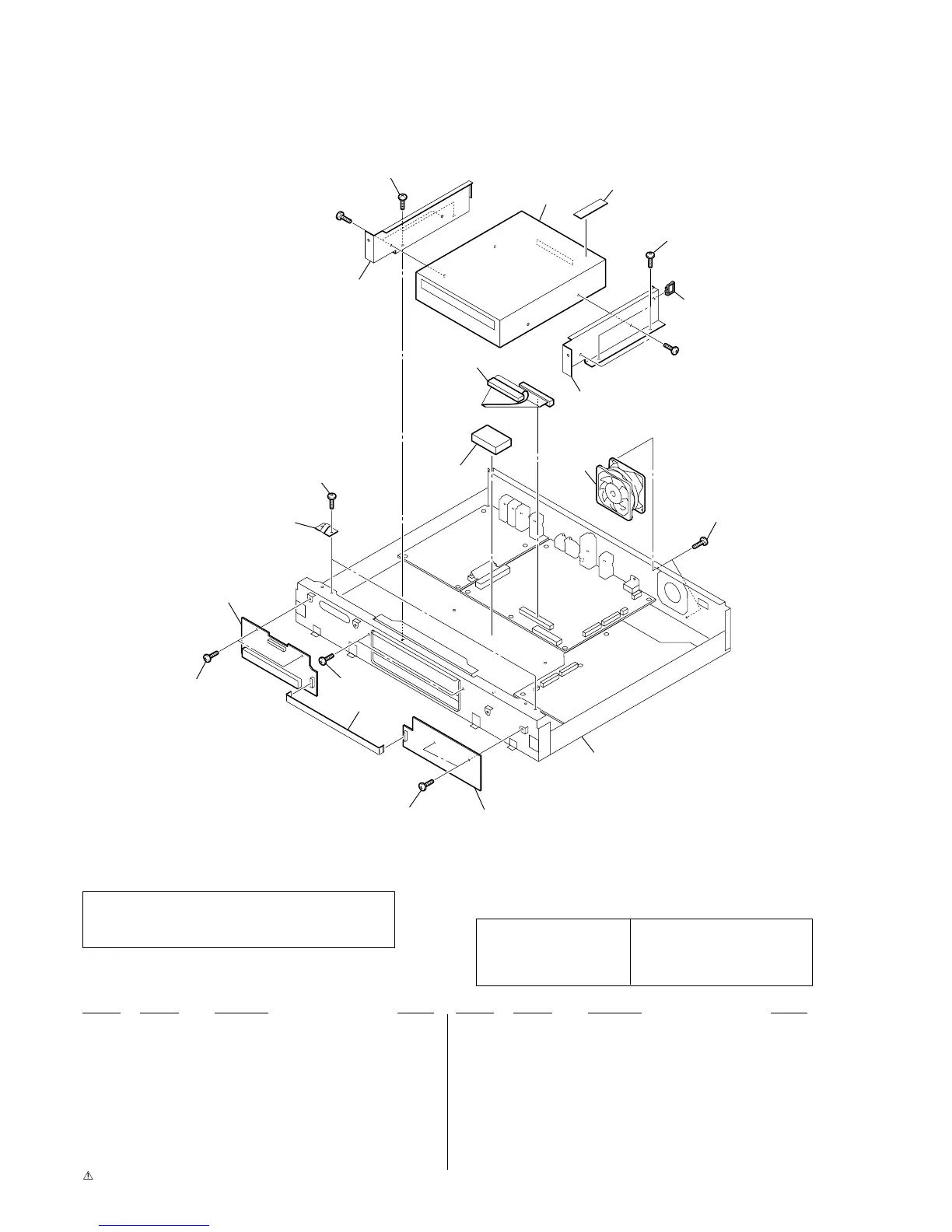

6-1-2. MAIN CHASSIS BLOCK
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
51 3-077-331-01 +BV3 (3-CR)
* 53 4-099-553-01 REUSE CLAMP
* 54 1-965-333-11 HARNESS (MBD-003)
(S300BJ/S300BJP/S301BJ)
* 54 1-965-684-11 HARNESS (MBD-007)
(S300BM: US, CND/S301BM)
* 54 1-965-688-11 HARNESS (MBD-008)
(S300BM: AEP, UK, RUS, E32, SP, TH, AUS)
055 A-1337-670-A DRIVE (P (SERVICE USE R1)) (US, CND)
055 A-1337-677-A DRIVE (SOEM (SERVICE USE R2)) (AEP, UK)
055 A-1337-678-A DRIVE (SOEM (SERVICE USE R4)) (AUS)
055 A-1382-235-A DRIVE (SOEM (SERVICE USE R3)) (SP/TH)
055 A-1382-236-A DRIVE (SOEM (SERVICE USE R5)) (RUS)
56 1-787-625-21 FAN, DC
57 3-077-331-31 +BV3 (3-CR)
58 3-087-220-01 TAPE, NON-HALOGENE
59 2-348-685-01 SPRING, EARTH (FRONT)
#1 7-682-544-09 +B 3X3
not supplied
not supplied
#1
#1
not supplied
not supplied
main block
not supplied
(FL-176 board)
not supplied
(FR-271 board)
51
51
51
51
51
58
53
54
56
57
55
59
51
The components identified by
mark 0 or dotted line with
mark 0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
Note: Please use A-1337-670-A for BD drive with priority. (US, CND)
Note: Please install it when Ref. No. 58 or 59 parts have
not adhered when drive is exchanged. Please refer
to SERVICE NOTE for the installation method.
55 A-1337-673-A DRIVE (SKZ (SERVICE USE R1)) (US, CND)
