A EXT slot (page 25)
B RS232C port
Used for maintenance and service.
C AUDIO OUT (L/R) jacks (page 18,
24)
D MULTI CHANNEL OUTPUT
(FRONT L/R, SURROUND L/R,
SUR BACK L/R, CENTER, SUB
WOOFER) jacks (page 23)
E DIGITAL OUT (OPTICAL/
COAXIAL) jacks (page 22)
F HDMI OUT jack (page 15, 21)
G Ventilation holes
The ventilation fan is inside the player.
H AC IN terminal (page 27)
I COMPONENT VIDEO OUT
(Y, P
B, PR) jacks (page 17)
J VIDEO OUT (VIDEO/S VIDEO)
jacks (page 18)
K CONTROL S IN/IR IN jack
If you have a CONTROL S-compatible
Sony TV or AV amplifier (receiver), use
a Control S cable (not supplied) to
connect to the Control S (output) jack.
Refer to the operating instructions
supplied with your TV or AV amplifier
(receiver).
L LAN (100) terminal (page 26)

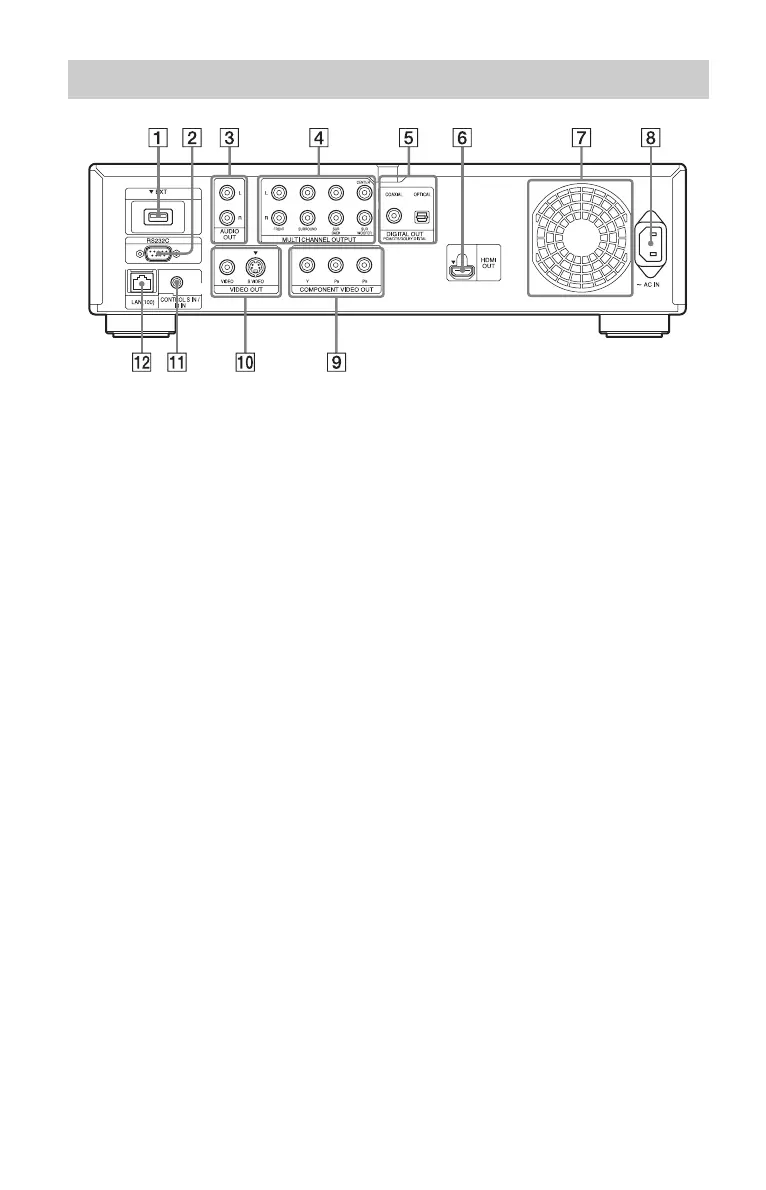

Rear panel
