Capstan motor (M902)
Relay gear
Change gear

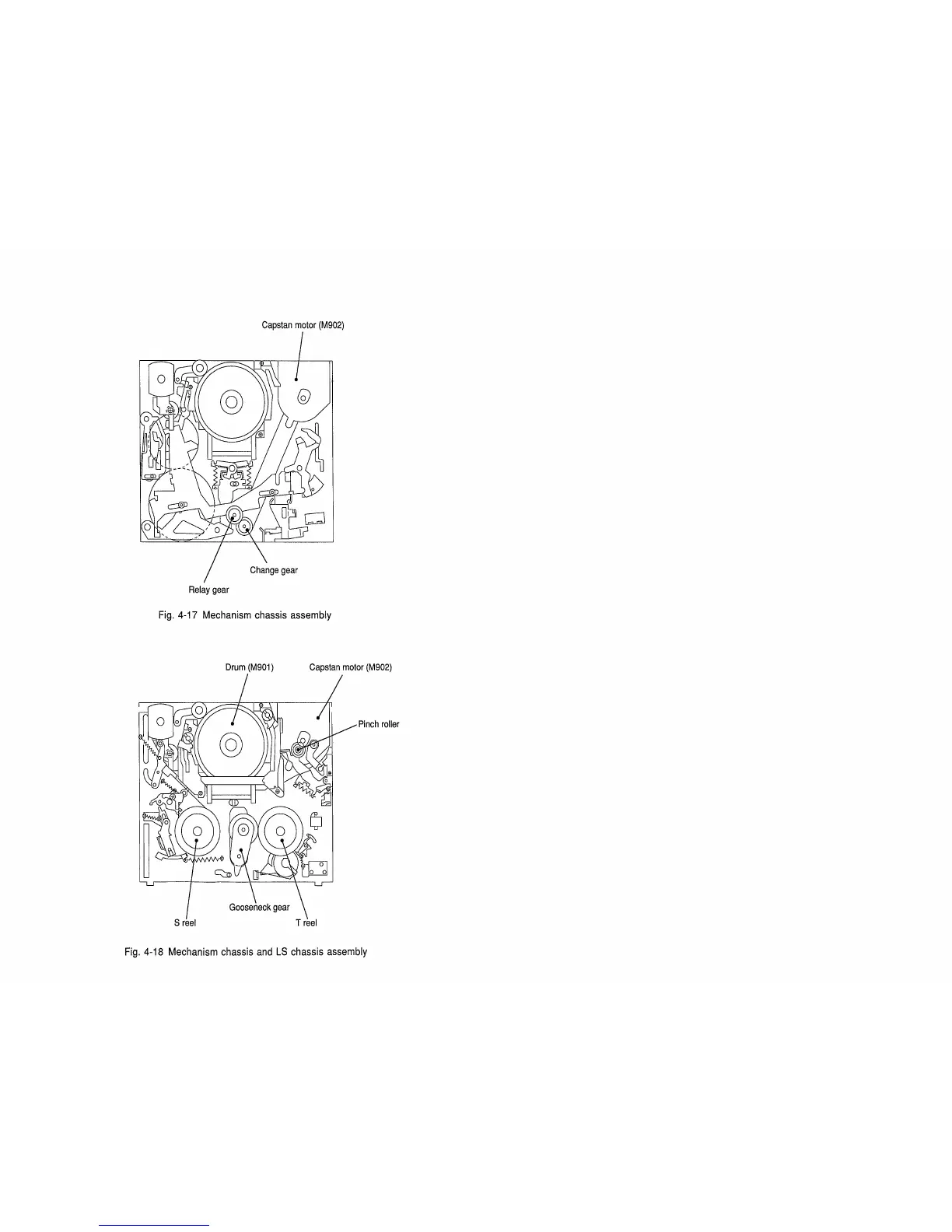

Fig. 4-17 Mechanism chassis assembly
Drum (M901) Capstan motor (M902)
\
Gooseneckgear
m_ L_f
reel
Pinch roller
Fig. 4-18 Mechanism chassis and LS chassis assembly
