Loading motor
(M903)
Drum (M901) Capstan motor (M902)
Gear
Rotary
Tension regulator
plate 1
Tension regulator
plate 2
Cam gear
M slider
Change gear _]7
Relay gear
Timing belt
Pinch press
plate
GL slider

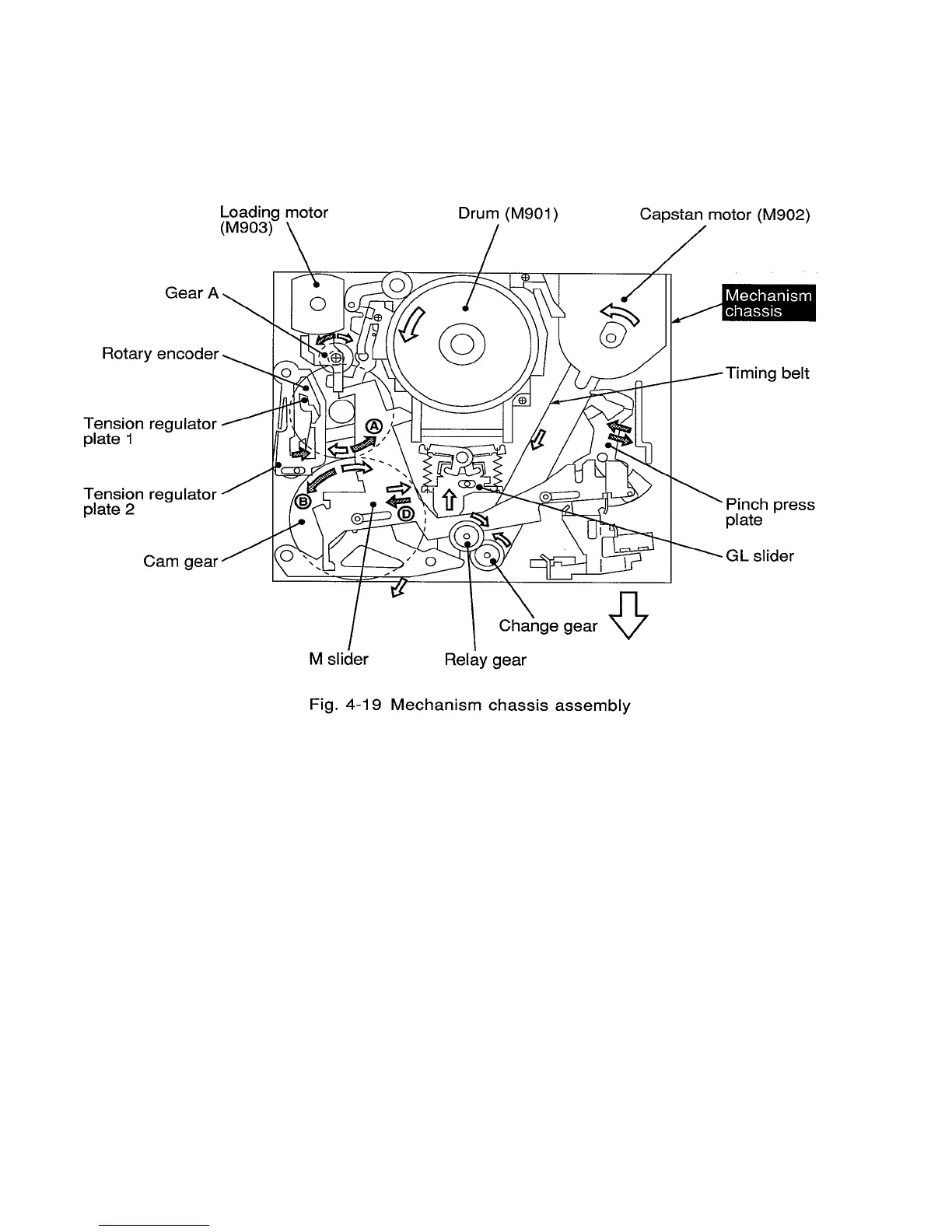

Fig. 4-19 Mechanism chassis assembly
