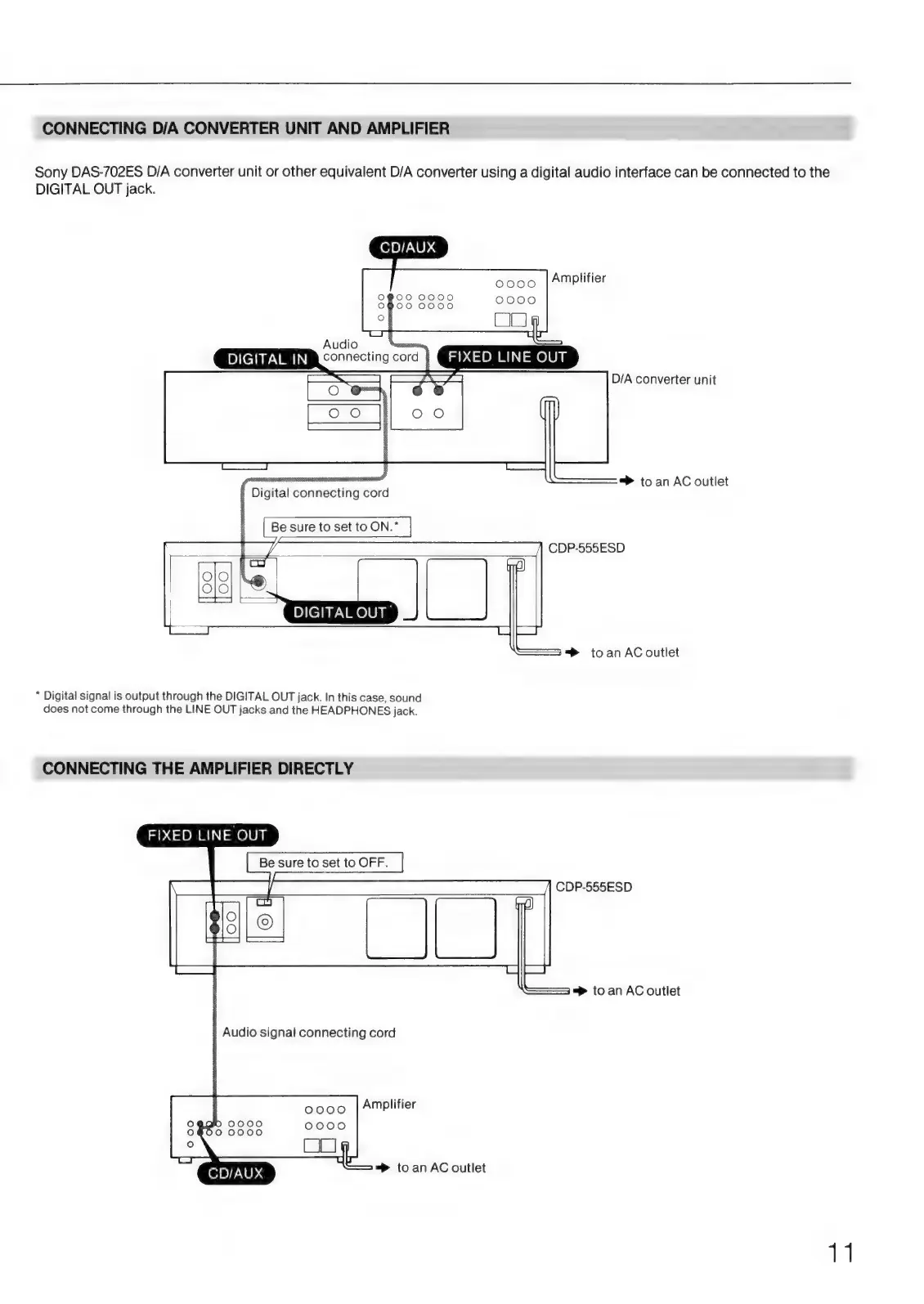

CONNECTING D/A CONVERTER UNIT AND AMPLIFIER
Sony DAS-702ES D/A converter unit or other equivalent D/A converter using a digital audio interface can be connected to the
DIGITAL OUT jack.
CD/AUX
Audio
ord |
DIGITAL IN
D/A converter unit
mn
$
tuanáC
outlet
Digital
connecting
cord
[ Be sure to set to ON.*
CDP-555ESD
= toan AC outlet
* Digital signal is output through the DIGITAL OUT jack. In this case, sound
does not come through the LINE OUT jacks and the HEADPHONES jack.
CONNECTING THE AMPLIFIER DIRECTLY
FIXED LINE OUT
Be sure to set to OFF.
CDP-555ESD
== + to an AC outlet
Audio signal connecting cord
CD/AUX
