12
CDP-CX355

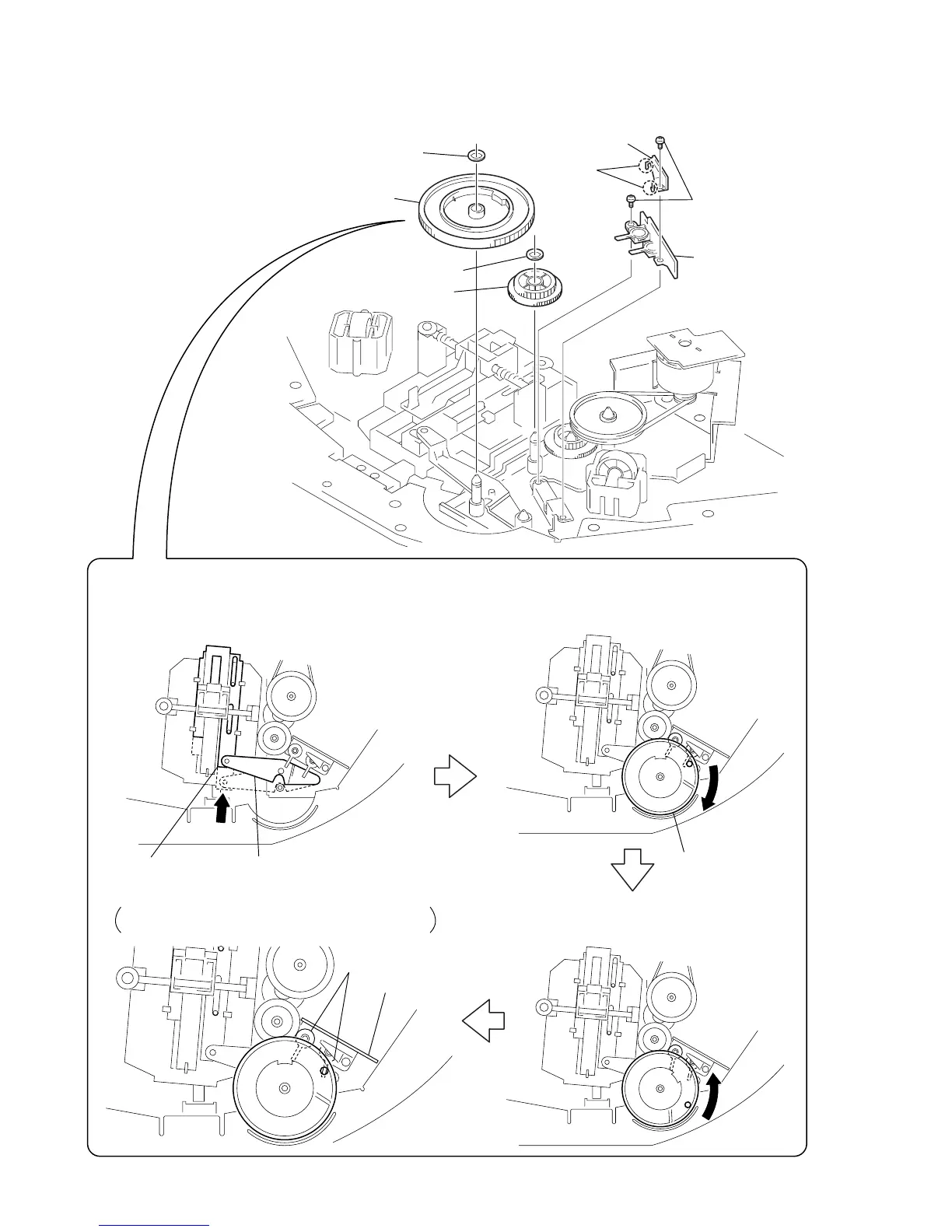

3-8. D. SW Board
5
two screws
(+BTP 2.6 x 6)
8
D. SW board
7
holder (L-SW)
6
two claws
2
gear (door.cam)
gear (door.cam)
4
gear (door.drive)
1
Move the slider (pop-up) and the lever (cam.pu) fully
in the direction of the arrow
A
.
3
When the gear (door.cam) happens to go too deep,
return it to the original position
in the direction of the arrow
C
.
The levers of the two rotary switches on the D. SW board
are shown in the illustration below.
slider (pop-up) lever (cam.pu)
A
B
C
1
washer
3
washer
Precaution during the gear (door.cam) installation
D. SW board
two rotary switches
2
Install the gear (door.cam) in the direction shown
in the illustration and rotate it fully
in the direction of the arrow
B
.
To Next Page
