CDP-CX355

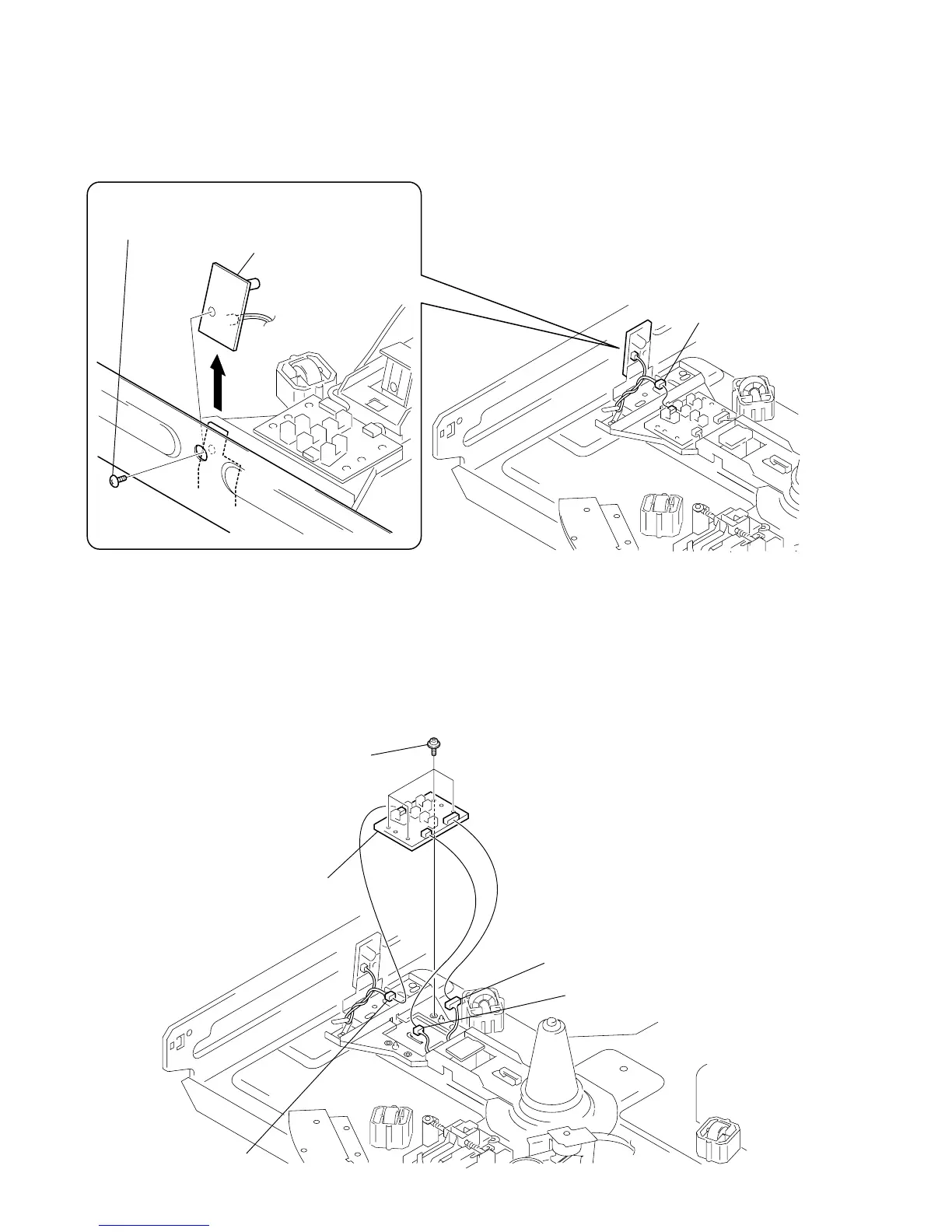

3-11. D. SENS (OUT) Board
1
connector (CN83
)
2
screw (+BVTP 3 x 6)
3
4
D. SENS (OUT) board
3-12. T. SENS Board
1
connector (CN83)
3
connector (CN81)
4
connector (CN82)
2
four screws (+PTPWH 3 x 6)
5
T. SENS board
