Sony CDP-CX355 - Printed Wiring Board - DISPLAY Section

4040
CDP-CX355

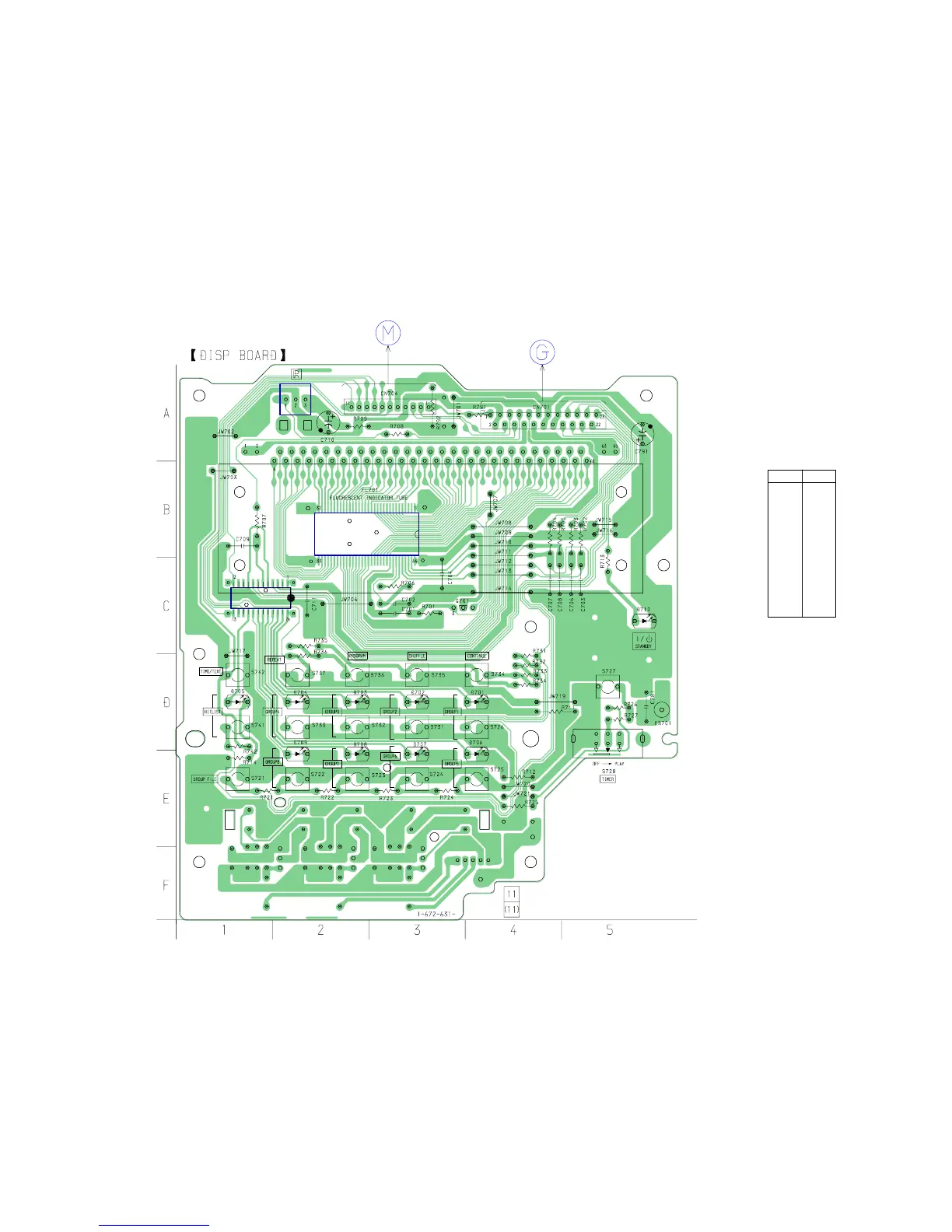

7-11. Printed Wiring Board – DISPLAY Section –
IC703
IC701
IC702
TO
JOG BOARD
CN705
(Page 42)
TO
MAIN BOARD
CN502
(Page 36)
• See page 31 for Circuit Boards Location.
Ref. No. Location
D701 D-4
D702 D-3
D703 D-2
D704 D-2
D705 D-1
D706 E-4
D707 E-3
D708 E-2
D709 E-2
D710 C-5
IC701 B-2
IC702 C-1
IC703 A-2
Q701 C-3
• Semiconductor
Location
