Sony CDP-CX355 Service Manual

57
CDP-CX355

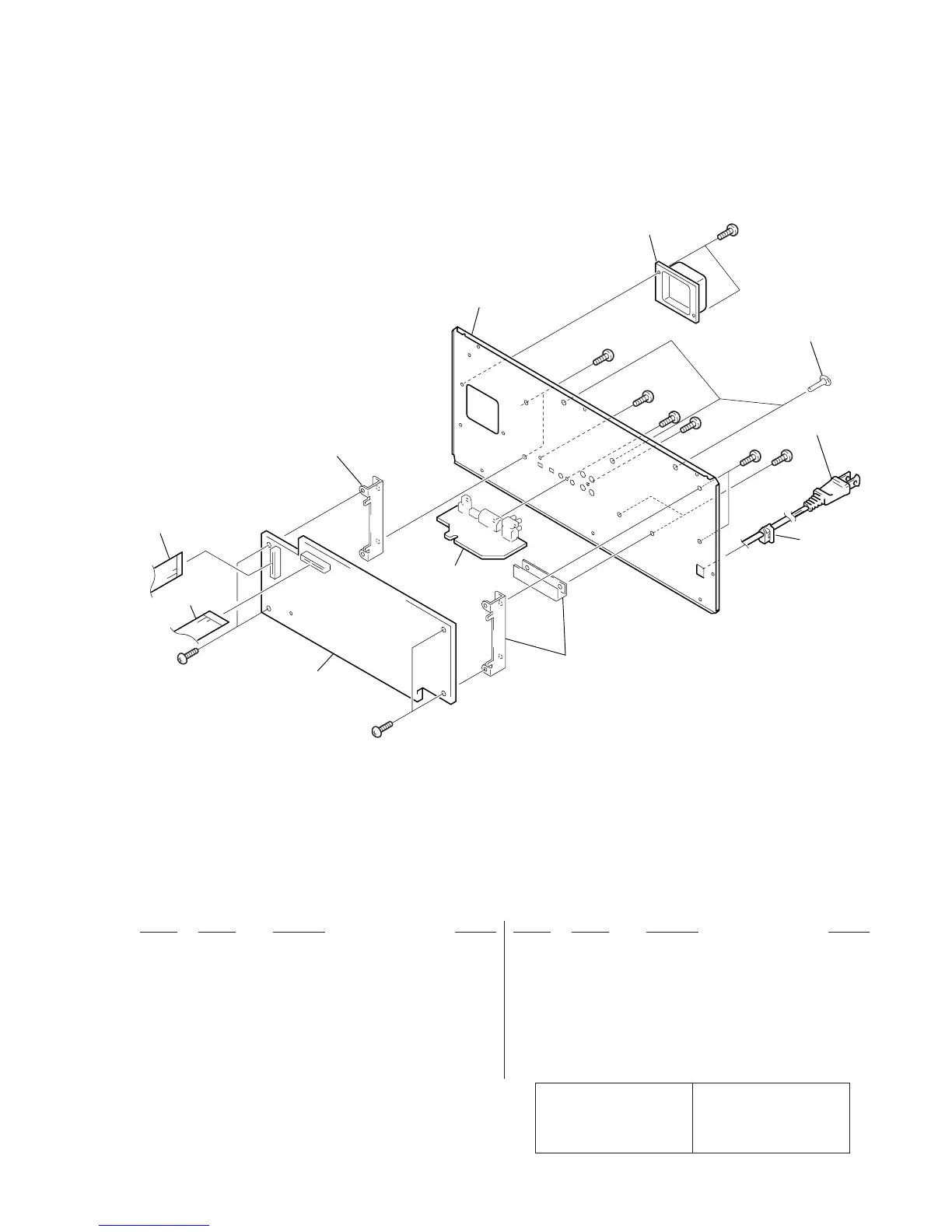

8-4. Back Panel Section
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
152
153
151
155
156
157
#1
#1
#1
#1
#1
CNP901
#1
#1
#1
#1
not supplied
not supplied
not supplied
154
151 A-4727-794-A MAIN BOARD, COMPLETE
152 1-790-420-11 WIRE (FLAT TYPE) (21 CORE)
153 1-773-183-11 WIRE (FLAT TYPE) (23 CORE)
154 1-672-629-12 JACK BOARD
155 4-238-109-01 PANEL, BACK (US)
155 4-238-109-11 PANEL, BACK (CND)
155 4-238-109-21 PANEL, BACK (AEP, UK)
155 4-238-109-32 PANEL, BACK (SP)
155 4-238-109-42 PANEL, BACK (AUS)
155 4-238-109-51 PANEL, BACK (E)”
* 156 4-982-807-01 COVER (FFC)
* 157 3-703-244-00 BUSHING (2104), CORD
0 CNP901 1-696-845-11 CORD, POWER (AUS)
0 CNP901 1-777-071-61 CORD, POWER (AEP, UK, SP)
0 CNP901 1-783-531-31 CORD, POWER (US, CND, E)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par
une marque 0 sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spécifié.
