Sony CDP-XA20ES - Case and Loading Panel Assembly

– 47 –
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE)
↑
Cabinet's Color
• Abbreviation
CND: Canadian SP: Singapore
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of the
electrical parts list.

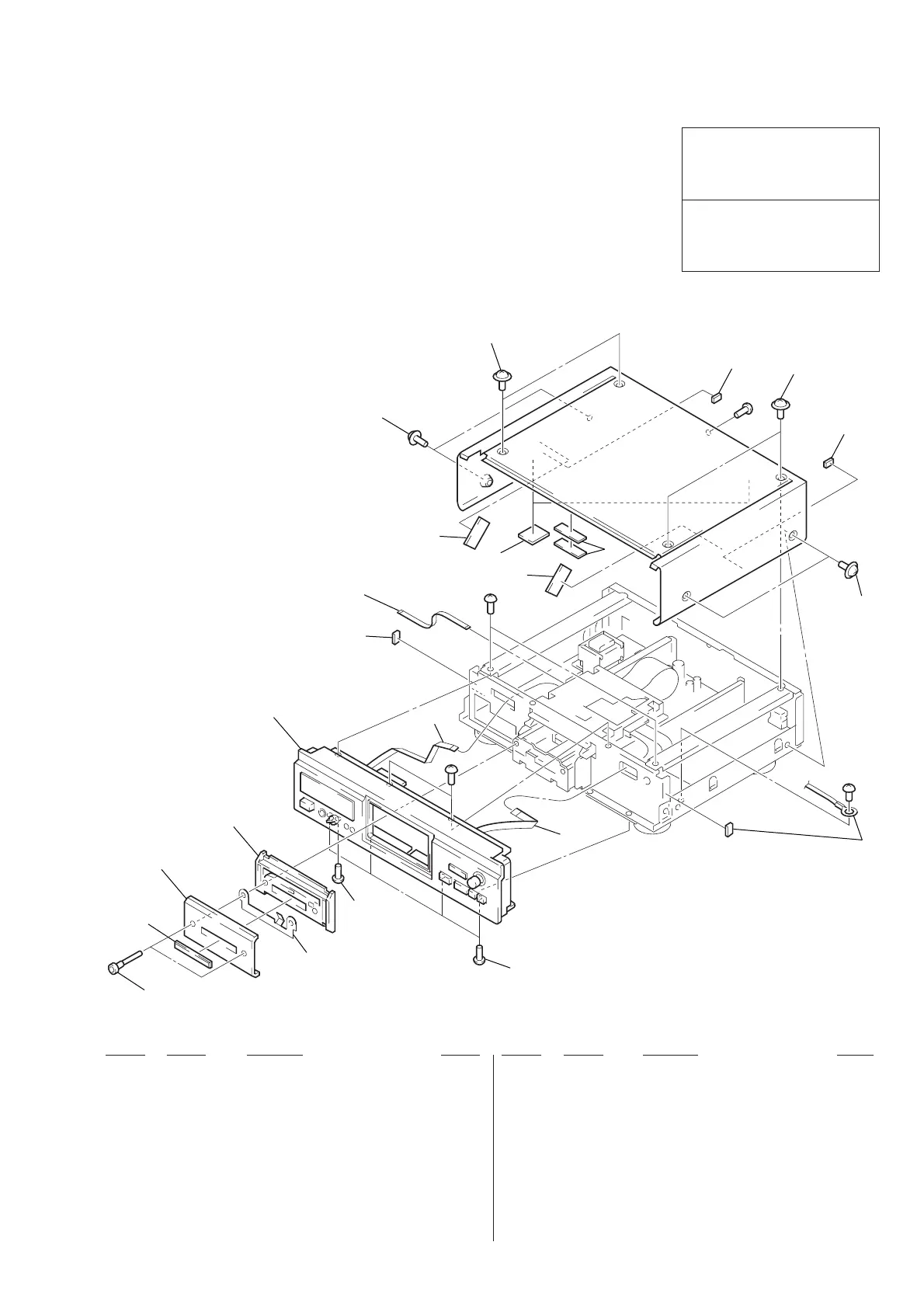

SECTION 7
EXPLODED VIEWS
(1) CASE, LOADING PANEL SECTION
The components identified by mark
! or dotted line with mark ! are
critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque ! sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le neméro spécifié.
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
7 1-782-504-11 WIRE (FLAT TYPE) (11 CORE)
8 4-959-077-01 DAMPER
* 9 4-615-354-01 SPACER
10 3-363-099-01 SCREW (CASE 3 TP2) (BLACK)
10 3-363-099-11 SCREW (CASE 3 TP2) (GOLD) (AEP, SP)
11 4-969-469-01 CASE (BLACK)
11 4-969-469-31 CASE (GOLD) (AEP, SP)
12 1-782-502-11 WIRE (FLAT TYPE) (4 CORE)
13 4-962-329-01 DAMPER
1 3-703-685-21 SCREW (+BV 3X8)
2 4-970-998-21 BOLT (LID), HEXAGON HOLE (GOLD)(AEP, SP)
2 4-970-998-31 BOLT (LID), HEXAGON HOLE (BLACK)
3 4-987-965-01 EMBLEM (FIXED PICKUP) (GOLD) (AEP, SP)
3 4-987-965-11 EMBLEM (FIXED PICKUP) (BLACK)
4 4-986-744-01 PANEL, LOADING (GOLD) (AEP, SP)
4 4-986-744-11 PANEL, LOADING (BLACK)
5 4-986-745-01 BASE, LOADING PANEL (GOLD) (AEP, SP)
5 4-986-745-11 BASE, LOADING PANEL (BLACK)
6 1-782-503-11 WIRE (FLAT TYPE) (7 CORE)
2
3
4
5
1
EXCEPT UK
not supplied
#1
#1
#1
#1
front panel
7
6
8
8
10
10
10
9
10
13
12
not supplied
not supplied
not supplied
not supplied
1
