Sony CDP-XE200 - Back Panel Section

– 27 –

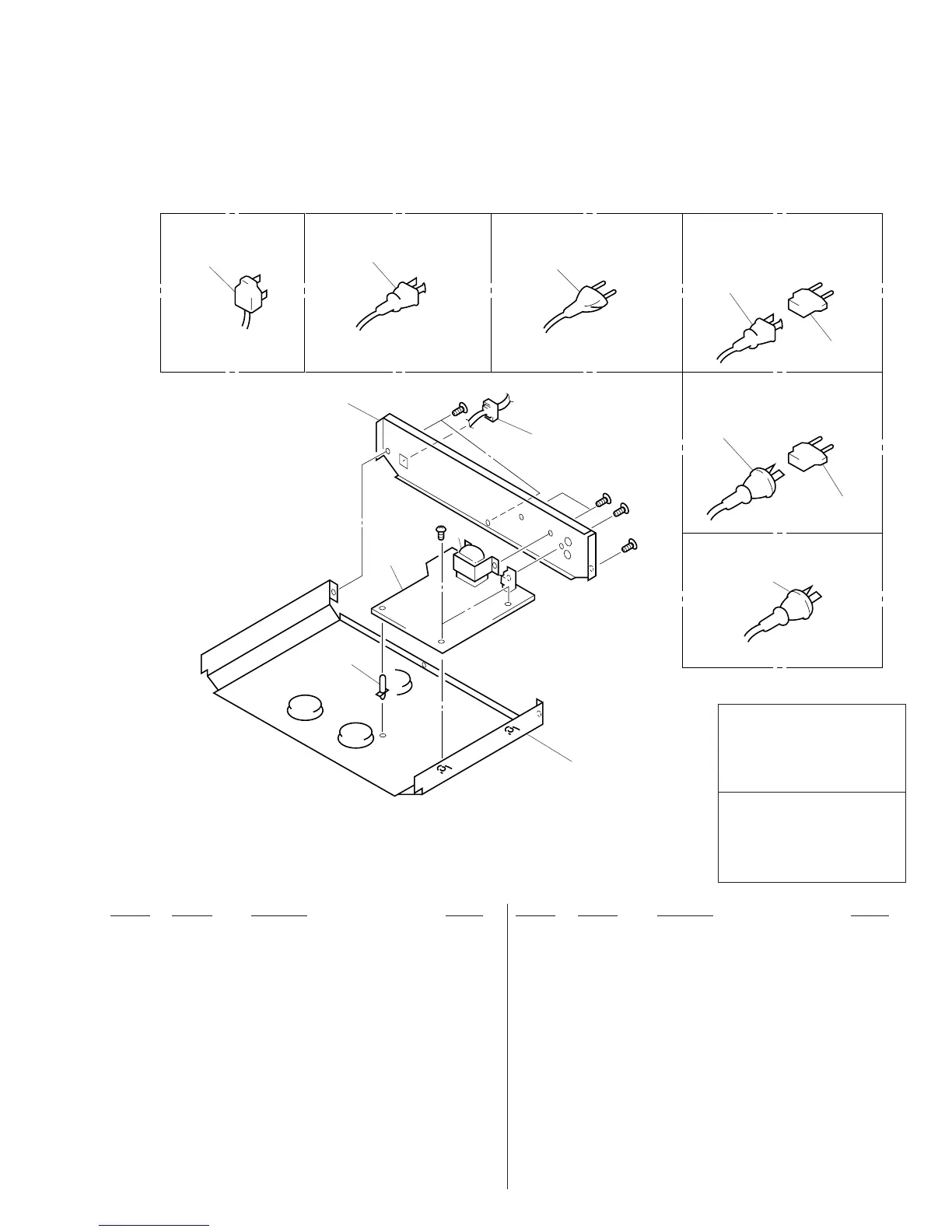

5-2. BACK PANEL SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
UK Model CND Model AEP, G, EE Model E Model
CH Model
AUS Model
CNP901
CNP901
55
56
CNP901
CNP901
CNP901
CNP901
#1
#1
#1
#2
not supplied
T901
51
52
53
54
51 3-703-244-00 BUSHING, CORD (EXCEPT CND,E)
* 51 3-703-571-11 BUSHING (S) (4516), CORD (CND,E)
* 52 4-978-388-21 PANEL, BACK (XE300:AEP,G,EE)
* 52 4-978-388-31 PANEL, BACK (XE300:UK)
* 52 4-978-388-41 PANEL, BACK (XE200:CND)
* 52 4-978-388-51 PANEL, BACK (XE200:AUS)
* 52 4-978-388-61 PANEL, BACK (XE300:AUS)
* 52 4-978-388-81 PANEL, BACK (XE300:CND)
* 52 4-978-388-91 PANEL, BACK (E)
* 52 4-979-971-01 PANEL, BACK (CH)
* 52 4-979-971-11 PANEL, BACK (XE200:UK)
* 52 4-979-971-21 PANEL, BACK (XE200:AEP,G,EE)
* 53 A-4673-743-A MAIN BOARD, COMPLETE (CND)
* 53 A-4673-744-A MAIN BOARD, COMPLETE (E)
* 53 A-4673-745-A MAIN BOARD, COMPLETE (EXCEPT CND,E)
* 54 4-954-051-51 HOLDER, PC BOARD
! 55 1-569-007-11 ADAPTOR, CONVERSION 2P (E)
! 56 1-569-008-11 ADAPTOR, CONVERSION 2P (CH)
! CNP901 1-558-943-81 CORD, POWER (E)
! CNP901 1-558-945-21 CORD, POWER (POLAR.SPT-1) (CND)
! CNP901 1-575-651-21 CORD, POWER (AEP,G,EE)
! CNP901 1-696-845-11 CORD, POWER (AUS)
! CNP901 1-696-907-11 CORD, POWER (UK)
! CNP901 1-696-966-11 CORD, POWER (CH)
! T901 1-423-979-11 TRANSFORMER, POWER (EXCEPT CND,E)
! T901 1-426-621-11 TRANSFORMER, POWER (CND)
! T901 1-426-622-11 TRANSFORMER, POWER (E)
