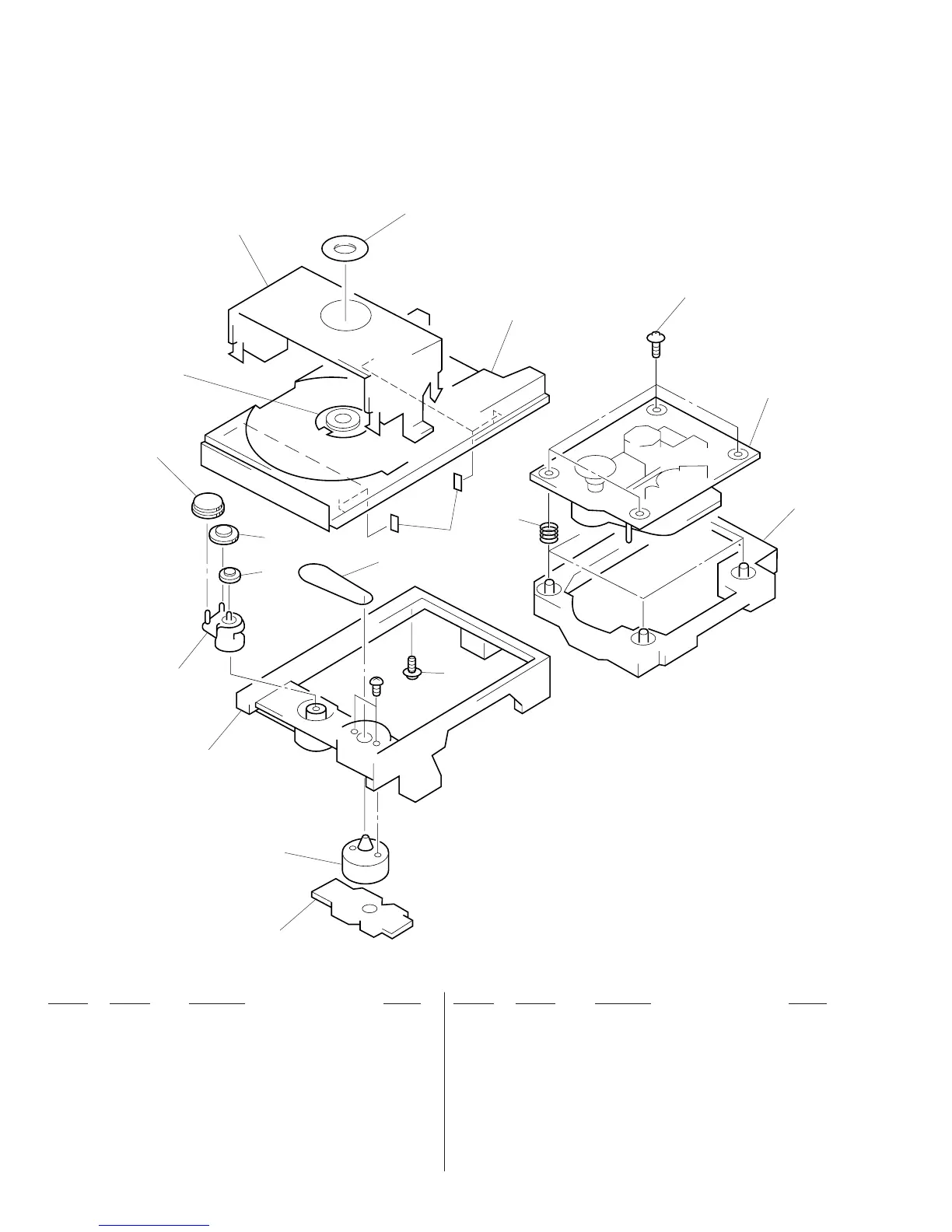

5-3. CD MECHANISM SECTION
(CDM14-5BD20)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
108
110
111
M151
#3
102
105
106
107
103
104
115
101
BU-5BD20
114
112
* 101 1-645-721-11 LOADING BOARD
102 4-933-111-11 CHASSIS (MD)
* 103 4-917-583-21 BRACKET, YOKE
104 4-927-649-01 BELT
105 4-933-109-01 CAM
106 4-927-651-01 PULLEY (S)
107 4-967-268-01 GEAR (C)
108 4-933-107-01 GEAR (PL)
109 4-933-112-11 TABLE, DISC
110 4-933-110-41 HOLDER (MG)
* 111 1-452-538-11 MAGNET (AEP,UK,G,EE)
111 1-452-538-41 MAGNET (CND,E,AUS,CH)
112 4-933-134-01 SCREW (+PTPWH M2.6X6)
113 4-959-996-01 SPRING (932), COMPRESSION
114 4-933-129-01 HOLDER (BU)
115 4-925-315-31 DAMPER
M151 A-4604-363-A MOTOR (L) ASSY (LOADING)
113
109
(including r A)
r A
