Sony CDX-3167 - Servo Board; Roller Assy

– 13 –

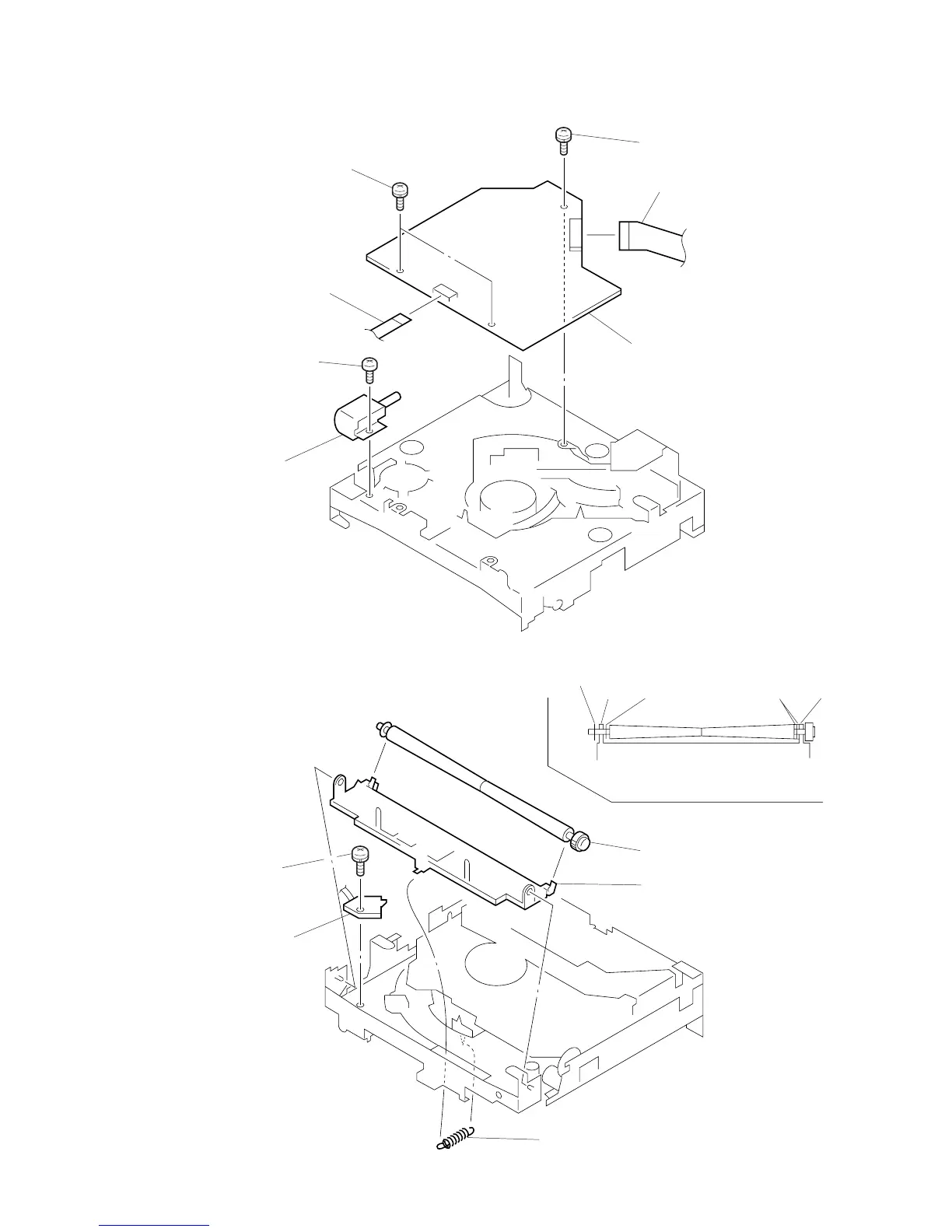

2-10. ROLLER ASSY
• When installing, take note of the positions
arm (roller) and washers. (Fig. 1)
1 tension spring (RA)
2 arm (roller)
3 roller assy
4 PS 2x3
5 LOAD SW board
Fig. 1
washer
arm washer armwashers
4 loading motor assy
6 PS 2x4
2 CN2
7 SERVO board
5 PS 2x4
1 CN3
3 P 2x3
2-9. SERVO BOARD
