Sony CDX-3167 - Disassembly Procedures; Cover and Front Panel Disassembly; CD Mechanism Block Disassembly

– 9 – – 10 –
SECTION 2
DISASSEMBLY
Note : Follow the disassembly procedure in the numerical order given.

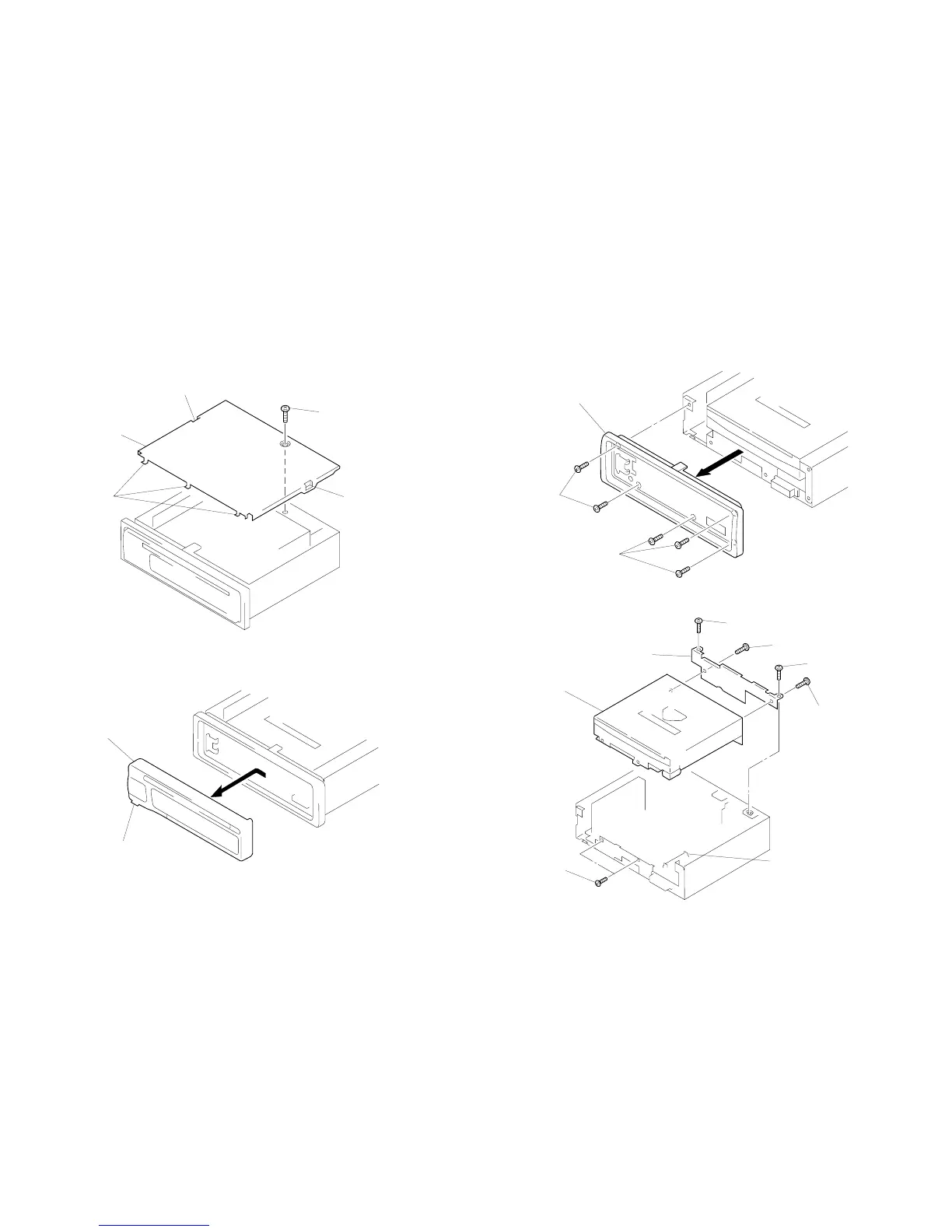

2-1. COVER ASSY
2-2. FRONT PANEL ASSY
1 PTT 2.6x6
2 claw
3 claw
4 claws
2 front panel assy
1 Push the RELEASE button.
5 cover assy
2-3. SUB PANEL
1 PTT 2.6x6
6 PTT 2.6x5
2 PTT 2.6x6
7 PTT 2.6x5
4 CNP700
3 PTT 2.6x5
5 CD mechanism block
8 bracket (M/D)
1 PTT 2.6x6
2 PTT 2.6x6
3 sub panel
2-4. CD MECHANISM BLOCK
