– 42 –
SECTION 5
EXPLODED VIEWS
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
*1X-3371-549-2COVER ASSY
*23-009-349-01BRACKET (M/D)
3X-3373-957-2PANEL (1) ASSY, SUB
4X-3368-104-2LOCK ASSY
*5Y-8283-355-AMAIN BOARD, COMPLETE
*6 3-931-260-01BRACKET (IC)
*7 3-009-353-01HEAT SINK
*8 3-920-529-01BRACKET (REG) (IC)
99-911-844-XXSPACER, MOTOR
*103-009-348-01CHASSIS (MAIN)
113-922-535-11SCREW (+BTT)
121-776-527-11CORD (WITH CONNECTOR) (POWER)
F5011-532-877-11FUSE (BLADE TYPE) (AUTO FUSE) 10A
Q9208-729-019-00TRANSISTOR 2SD2394-G
TU1A-3282-059-ATUNER UNIT
NOTE:
•The mechanical parts with no reference
number in the exploded views are not supplied.
•Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
•-XX and -X mean standardized parts, so
they may have some difference from the
original one.
•Hardware (# mark) list and accessories
and packing materials are given in the
last of this parts list.
The components identified by
mark ! or dotted line with mark.
! are critical for safety.
Replace only with part number
specified.

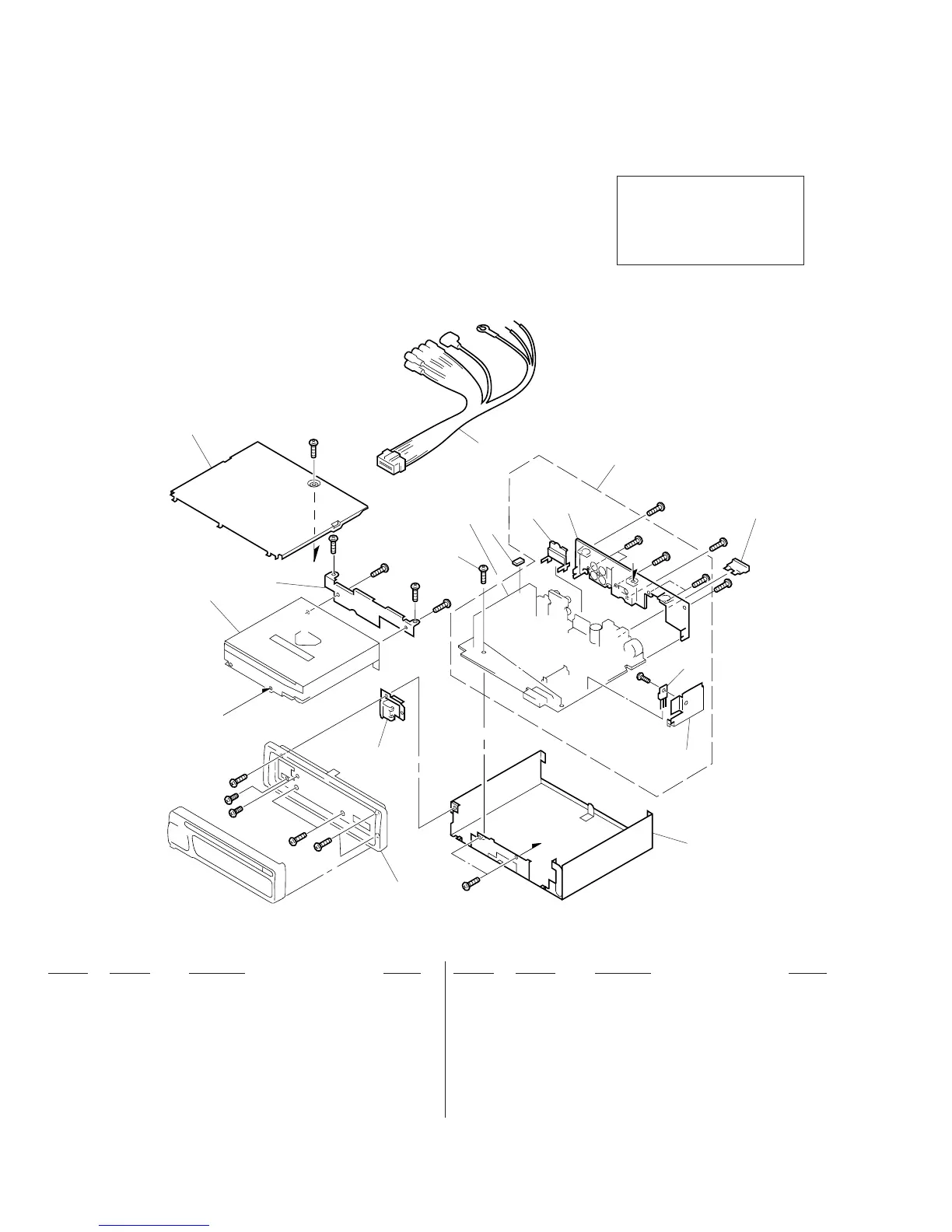

5-1. CHASSIS SECTION
MG-333X-121 (Cód. A-3220-584-A)
#3
2
6
7
#3
#2
#3
#4
#4
#3
#3
#3
5
F501
Q920
#3
8
1
4
3
10
#3
#3
#5
#5
#3
B
B
A
#2
12
#2
11
9
TU1
A
#4
To Next Page
