Sony CDX-3167 - Chassis (OP) (O;S) Assy; Optical Pick-Up Block

– 14 –

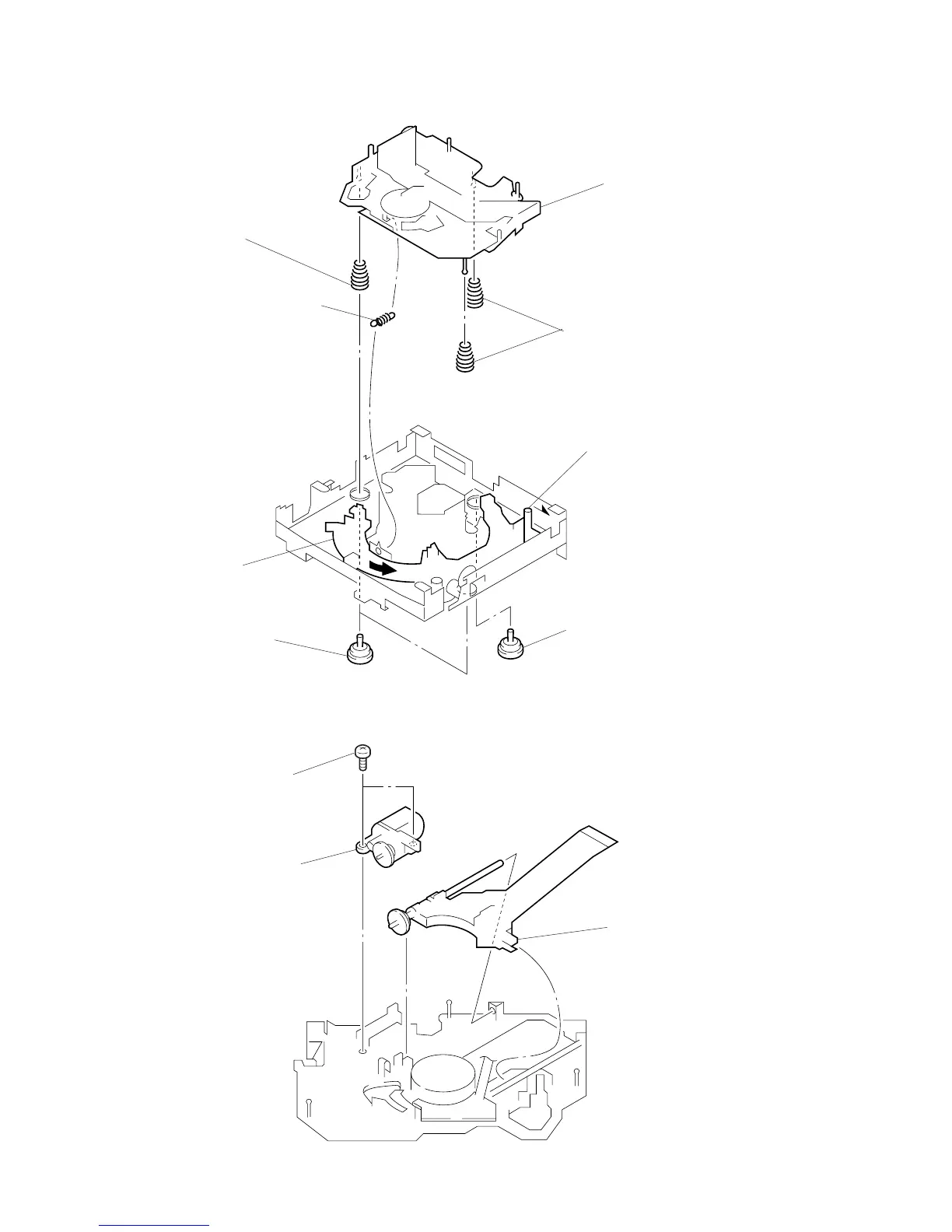

2-11. CHASSIS (OP) (O/S) ASSY
2-12. OPTICAL PICK-UP BLOCK
8 compression spring (FL)
1 tension spring (angle)
5 Turn loading ring in the
direction of the arrow.
2 damper (T)
3 damper (T)
6 chassis (OP) (O/S) assy
4 Fit lever (D) in the
direction of the arrow.
7 compression spring (FL)
3 optical pick-up block
1 P 2x3
2 sled motor assy
