Sony CDX-3167 - Front Panel Section View

– 43 –

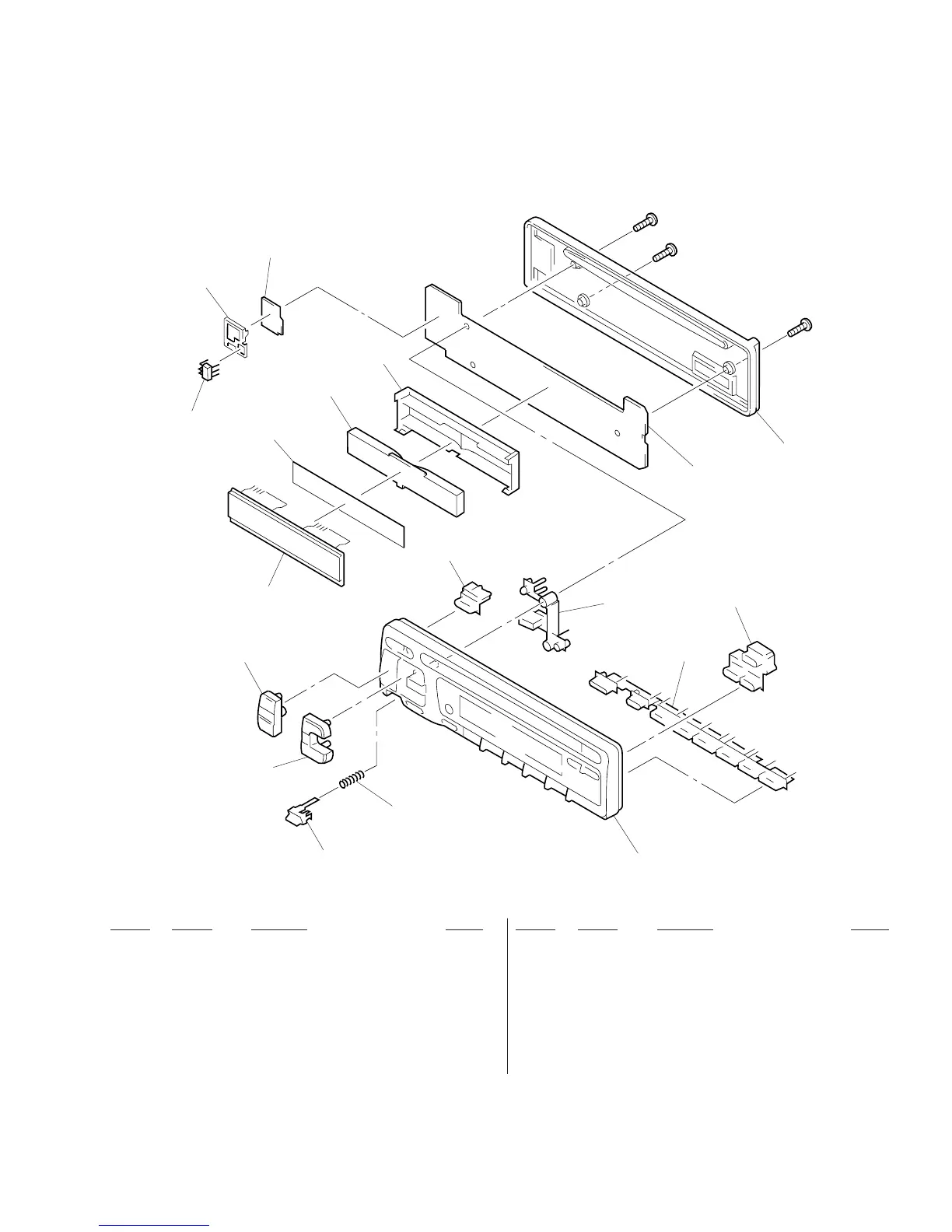

5-2. FRONT PANEL SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
63
CNP802
#6
#6
#6
62
61
60
56
64
not supplied
(DISPLAY board)
51
57
58
59
52
53
54
55
513-009-376-02BUTTON (SEEK/AMS)
523-009-332-01BUTTON (+/-)
533-009-329-01BUTTON (RELEASE)
543-013-634-01SPRING (RELEASE)
55X-3373-956-2PANEL SUB ASSY, FRONT
563-009-334-01BUTTON (SOURCE)
573-009-333-01BUTTON (DSPL)
583-009-331-01BUTTON (EJECT)
593-009-330-11BUTTON (1-6)
*603-009-341-01SHEET (LCD)
*613-009-335-01PLATE (LCD), LIGHT GUIDE
*623-009-337-01HOLDER (LCD)
*633-009-371-01BRACKET (PCB)
643-009-355-02PANEL, FRONT BACK
*CNP802 8-719-019-00PIN, CONNECTOR 3P
LCD800 1-803-140-11DISPLAY PANEL, LIQUID CRYSTAL
LCD800
not supplied
(DISPLAY SUB board)
