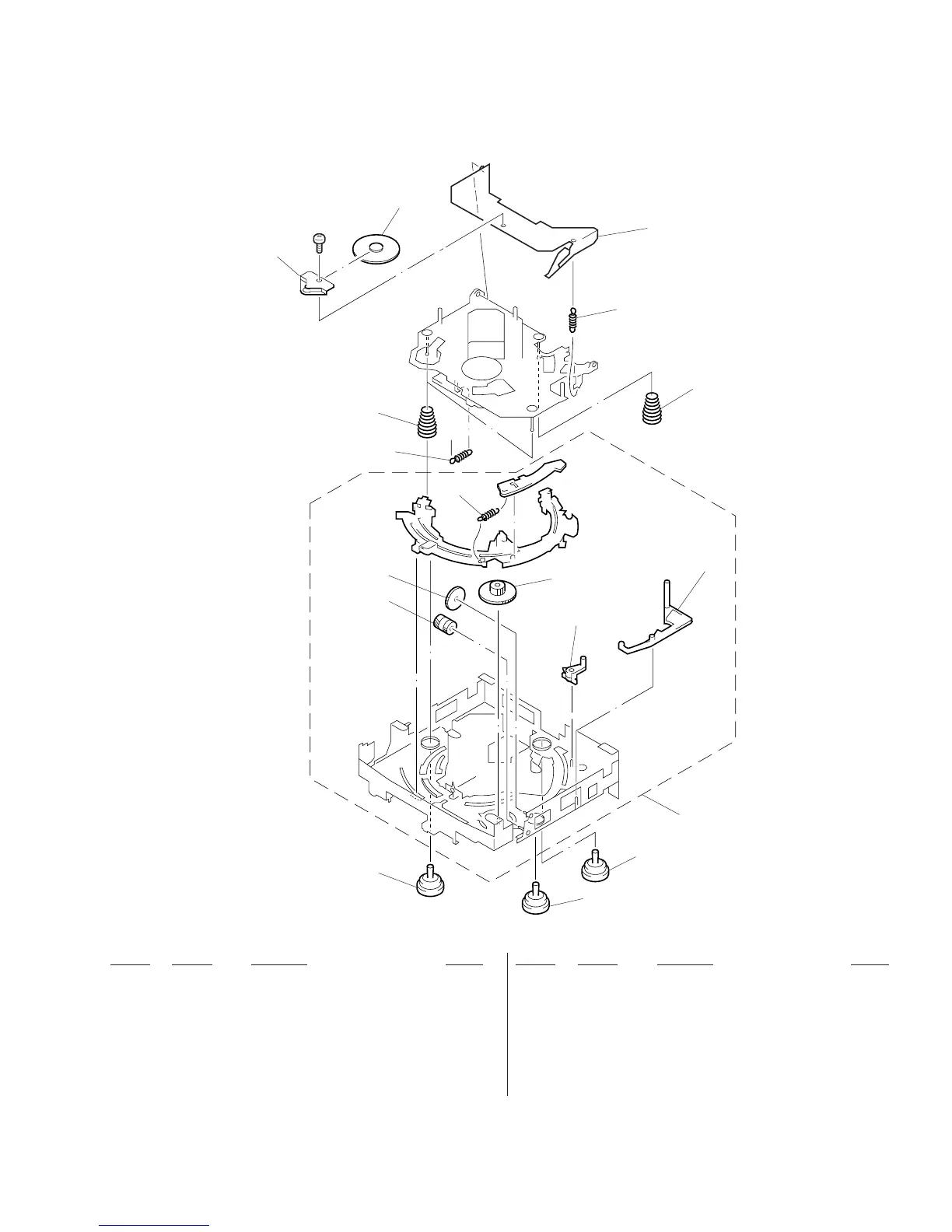

5-4. CD MECHANISM SECTION (2)
(MG-333X-121)
D
#9
155
154
151
156
157
157
158
160
162
163
153
161
159
152
152
152
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
not supplied
D
151 3-931-893-01 ARM, CHUCKING
152 3-931-897-01 DAMPER (T)
153 3-931-879-02 LEVER (D)
* 154 3-913-404-11 RETAINER (DISC)
155 3-931-894-01 BRACKET (CP)
156 3-931-895-01 SPRING (CH), TENSION
157 3-931-898-01 SPRING (FL), COMPRESSION
158 3-931-914-01 SPRING (ANGLE), TENSION
* 159 A-3291-677-A CHASSIS (M) ASSY , COMPLETE
160 3-931-883-01 SPRING (TR), TENSION
161 3-931-881-01 LEVER (LOCK)
162 3-931-882-02 GEAR (MDL)
163 3-007-537-01 WHEEL (U), WORM
