– 18 –

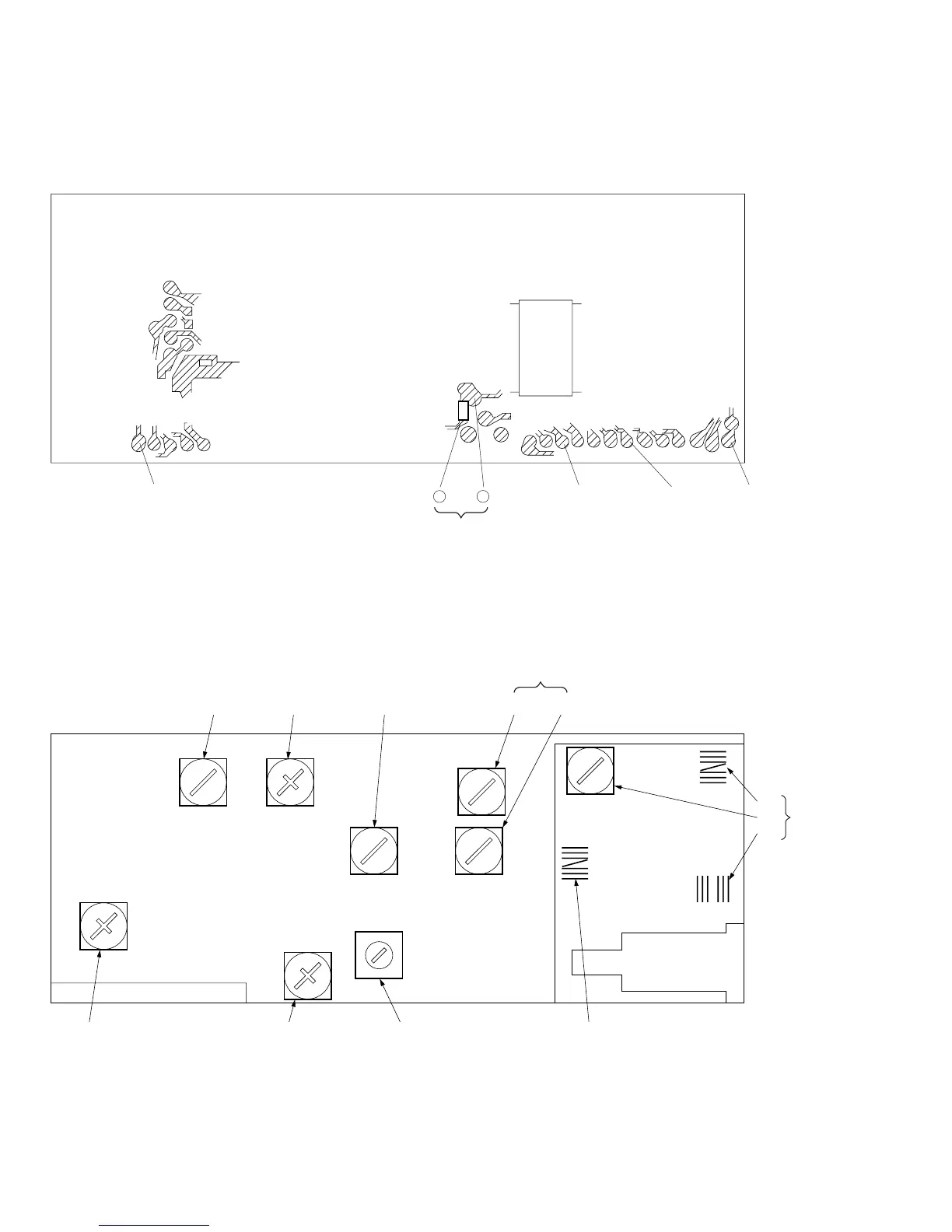

Adjustment Location : tuner unit (TU1)
+
–
FM CENTER
OUT
(Both side
of R32.)
–tuner unit (TU1) (conductor side)–
R32
18
36
19
IC2
1
SEEK
(At FM AUTO SCAN/
STOP LEVEL ADJ,
add the +5 Vdc.)
FM SD
OUT
AM VT
OUT
T2
T3
T1
FM
SENS/IF
ADJ
T4
FM VT
VOLTAGE
ADJ
RV3
FM AUTO
SCAN/STOP
LEVEL ADJ
T5
FM CENTER
ADJ
–tuner unit (TU1)
(component side)–
FM VT
OUT
AM VT
VOLTAGE
ADJ
T9
AM IF
ADJ
T8 T7 T6
AM SENS
ADJ
AM AUTO
SCAN/STOP
LEVEL ADJ
RV4
RV2
FM STEREO
SEPARATION
ADJ
