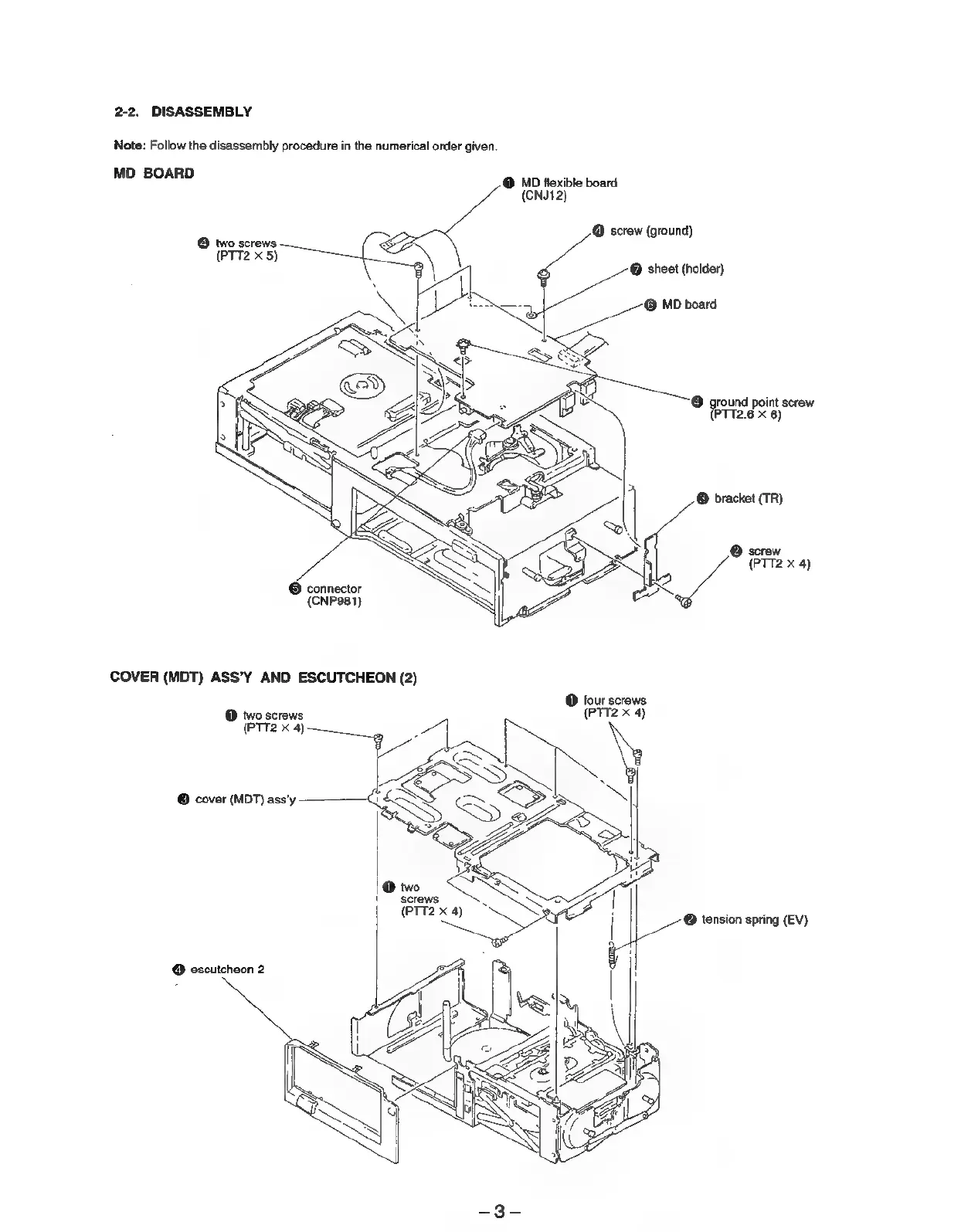

2-2. DISASSEMBLY
Note: Follow the disassembly procedure in the numerical order given.
MD
BOARD
@
MD
flexible
board
(CNJ12
( )
@
two
screws
@
screw
(ground)
(PTT2 x 5)
@ sheet (holder)
@ MD board
@ ground point screw
(PTT2.6 x 6)
bracket (TR)
@ screw
(PTT2 x 4)
RY
SS
|
@
connector
.
(CNP981)
«
COVER (MDT) ASS’Y AND ESCUTCHEON (2)
@ four screws
@ two screws
(PTT2 x 4) ———~»
© cover (MDT) ass'y
@ tension spring (EV)
@ escutcheon 2
