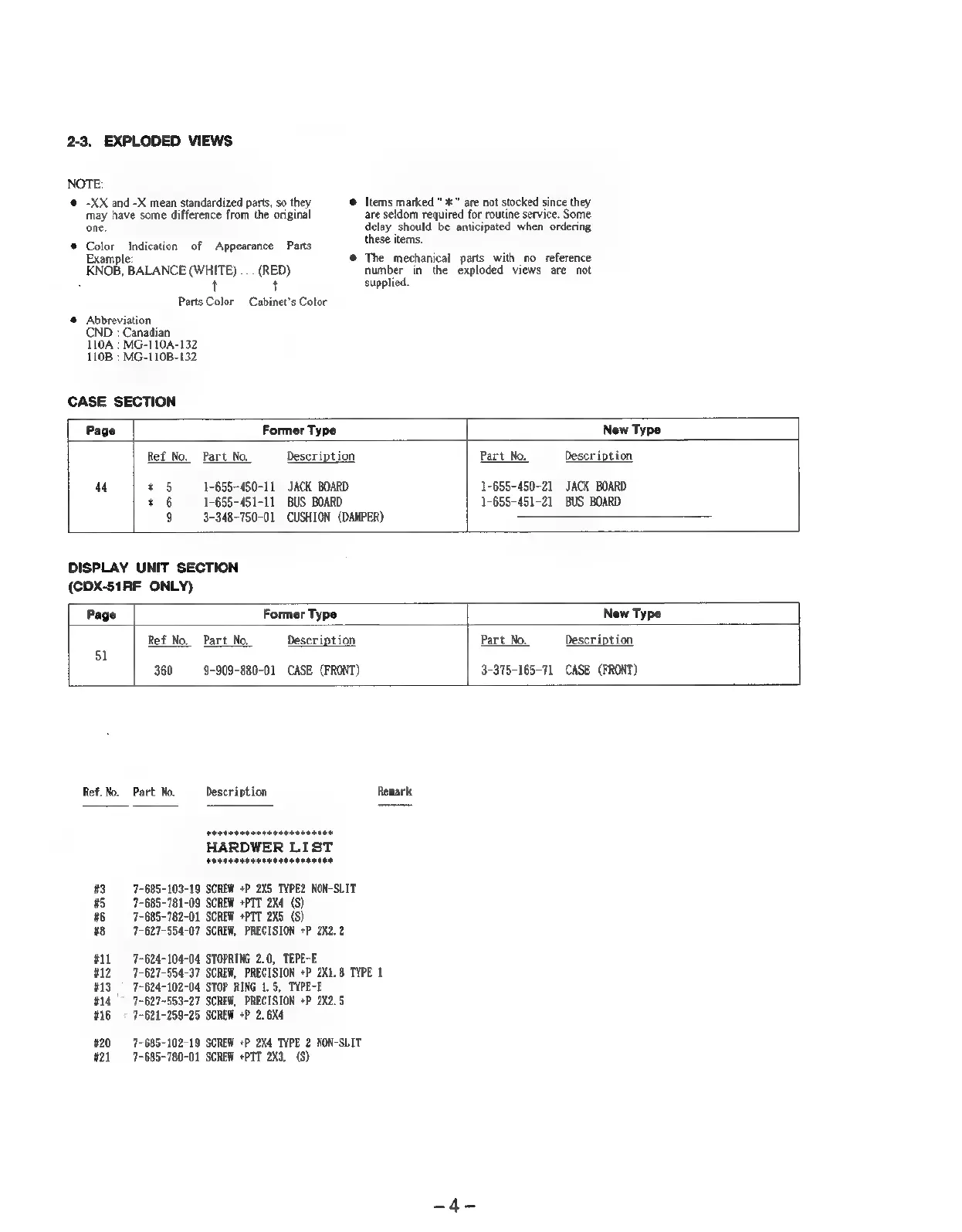

2-3. EXPLODED VIEWS
NOTE:
© -XX and -X mean standardized parts, so they
may have some difference from the original
one
© Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE)... . (RED)
© Items marked “ *” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
@ The mechanical parts with no reference
number in the exploded views are not
+ t supplied
Parts Color Cabinet's Color
© Abbreviation
ND : Canadian
110A : MG-110A-132
110B : MG-110B-132
CASE SECTION
Page Former Type New Type
Ref No. Part No. Description Part No. Description
M4 * 5 1-655-450-11 JACK BOARD 1-655-450-21 JACK BOARD
* 6 1-655-451-11 BUS BOARD 1-655-451-21 BUS BOARD
9 3-348-750-01 CUSHION (DAMPER) ee
DISPLAY UNIT SECTION
(CDX-51RF ONLY)
[Page | Former Type New Type
Ref No. Part No. Description Part No. Description
51
360 9-909-880-01 CASE (FRONT) 3-875-165-71 CASE (FRONT)
Ref.No. Part No. Remark
Description
Seeeeaneneseneeseneeee
HARDWER LIST
pereecereertrrerttirttts
#3 7-685-103-19 SCREW +P 2X5 TYPE2 NON-SLIT
$5 7-685-781-09 SCREW +PTT 2X4 (S)
#6 7-685-782-01 SCREW +PTT 2X5 (S)
#8 7-627-554-07 SCREW, PRECISION +P 2X2. 2
#11 7-624-104-04 STOPRING 2.0, TEPE-E
#12 7-627-554-37 SCREW, PRECISION +P 2X1.8 TYPE 1
#13 © 7-624-102-04 STOP RING 1.5, TYPE-E
#14 —-7-627-553-27 SCREW, PRECISION +P 2X2.5
#16 © 7-621-259-25 SCREW +P 2. 6X4
#20 7-685-102-19 SCREW +P 2X4 TYPE 2 NON-SLIT
#21 7-685-780-01 SCREW +PTT 2X3, (S)
