SECTION 4
EXPLODED VIEWS
Ref. No. Part No. Description Remark

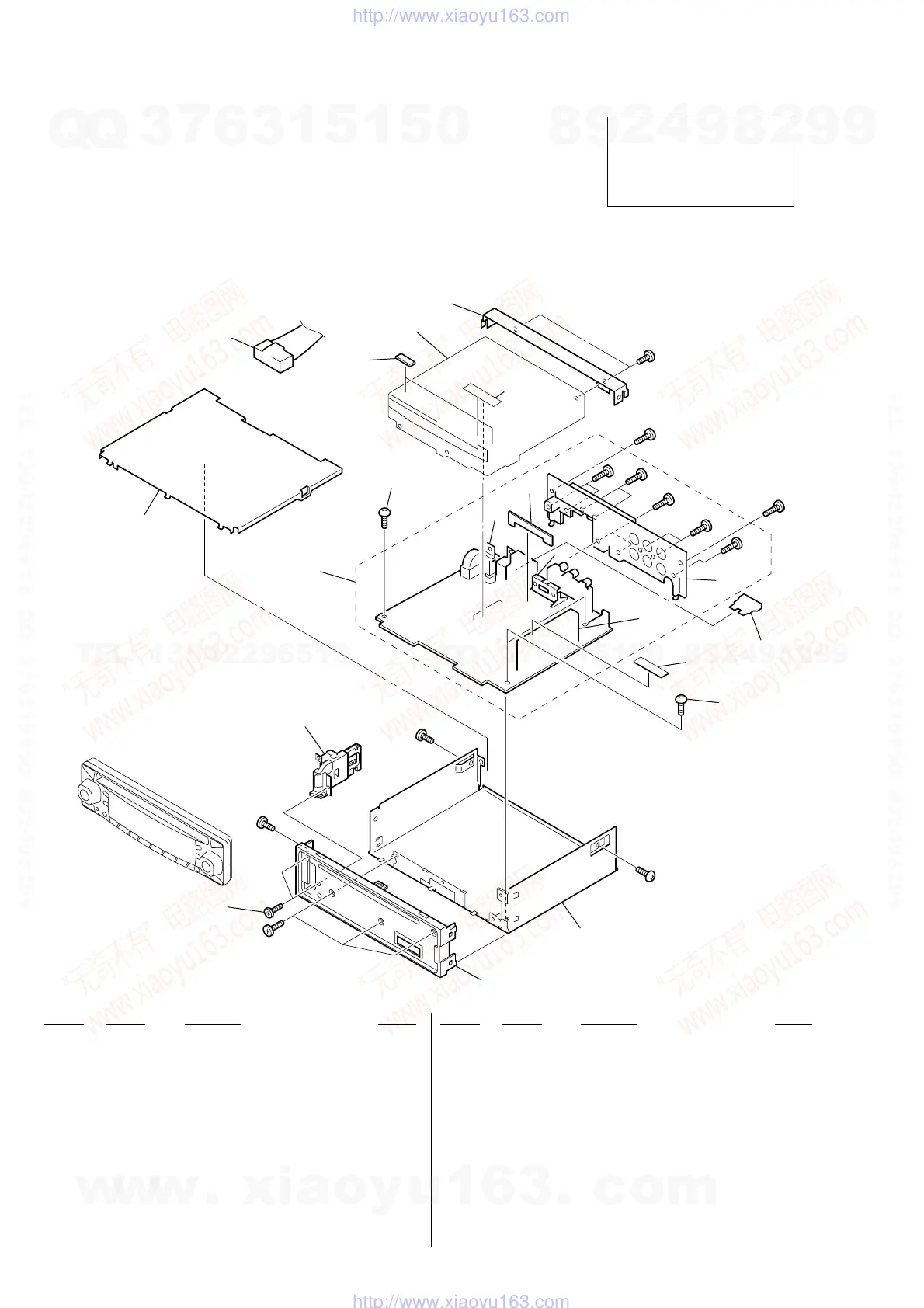

4-1. CHASSIS SECTION
Ref. No. Part No. Description Remark
NOTE:
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Color Indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE) ... (RED)
Parts Color Cabinet’s Color
• Accessories are given in the last of this
parts list.
RR
* 1 3-224-612-01 CHASSIS (CD)
2 3-224-309-21 COVER
3 1-776-207-82 CORD (WITH CONNECTOR) (POWER) (E)
3 1-776-527-61 CORD (WITH CONNECTOR) (ISO) (POWER)
(AEP,UK)
* 4 3-024-285-01 CUSHION (RUBBER)
* 5 3-041-173-11 BRACKET (CD)
6 3-922-535-11 SCREW (+BTT)
7 A-3283-260-A MAIN BOARD, COMPLETE (CA600)
7 A-3283-288-A MAIN BOARD, COMPLETE (CA600X)
8 3-236-932-01 HEAT SINK (6 PIN)
* 9 3-019-565-01 BRACKET (IC)
10 1-683-930-11 SPEAKER BOARD
11 3-041-261-11 BRACKET (TR)
* 12 3-048-259-01 SHEET (E)
13 X-3380-594-3 LOCK ASSY (S)
14 X-3381-269-1 PANEL (1) ASSY, SUB
15 3-231-472-01 SCREW (+B 2X4)
16 3-223-913-11 LABEL (OP CAUTION)
F901 1-532-877-11 FUSE (BLADE TYPE) (AUTO FUSE) 10A
TU601 A-3220-812-A TUNER UNIT (TUX-020)
#1 7-685-792-09 SCREW +PTT 2.6X6 (S)
#2 7-685-793-09 SCREW +PTT 2.6X8 (S)
#3 7-685-795-09 SCREW +PTT 2.6X12 (S)
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
