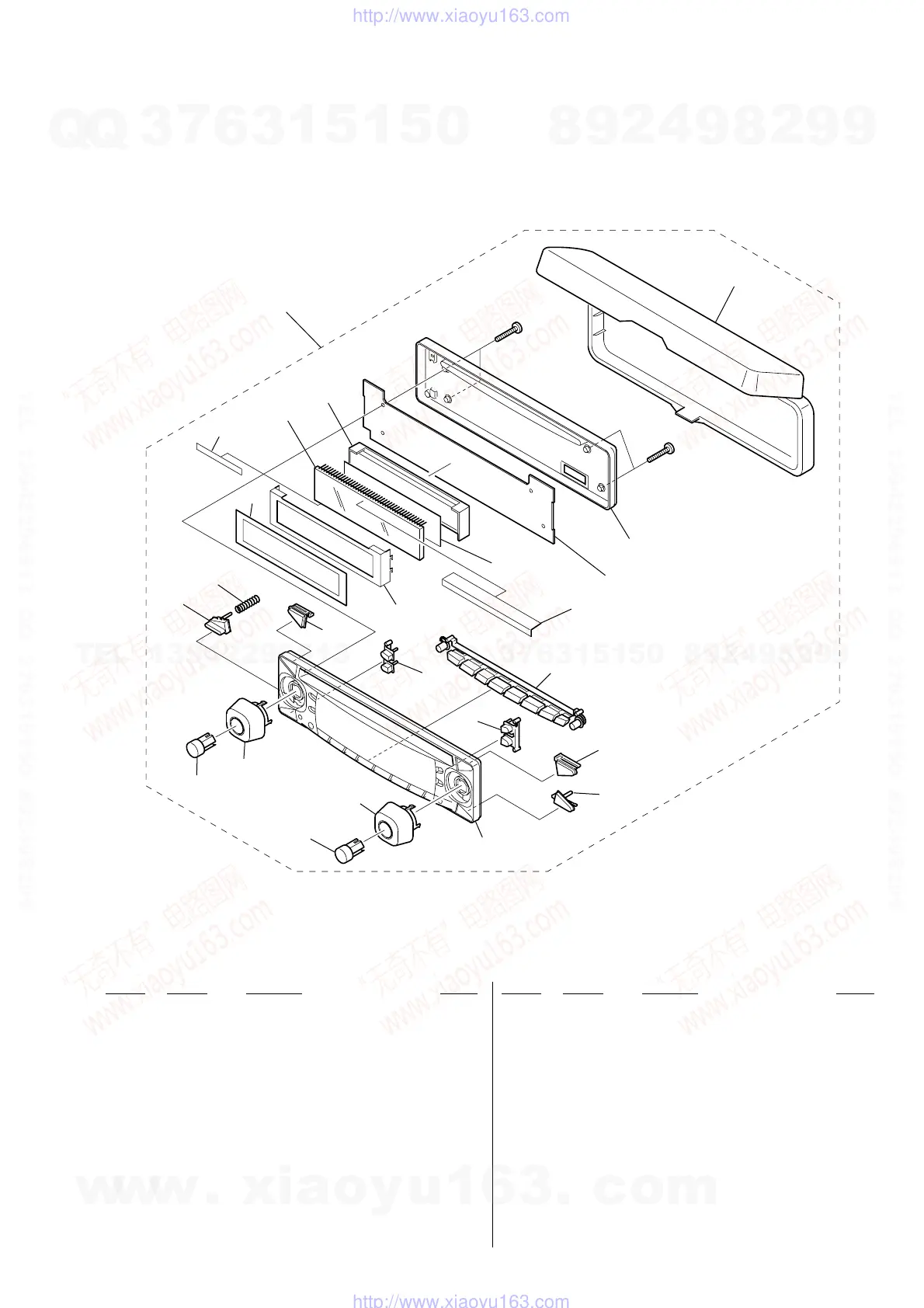

4-2. FRONT PANEL SECTION
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
51 X-3381-643-1 PANEL (S) ASSY, FRONT (CA600)
51 X-3381-644-1 PANEL (S) ASSY, FRONT (CA600X)
52 3-236-909-01 BUTTON (OFF)
53 3-236-912-01 BUTTON (EJECT)
54 3-236-908-11 BUTTON (MBP)
55 3-236-910-11 BUTTON (1-6)
56 3-236-905-01 BUTTON (D-BASS)
57 X-3381-356-1 RING (SEEK) ASSY
58 3-236-904-01 BUTTON (SOURCE)
59 X-3381-355-1 RING (VOL) ASSY
60 3-236-911-01 BUTTON (RELEASE)
61 3-229-774-01 SPRING (RELEASE)
62 3-236-907-01 BUTTON (MODE)
63 3-236-906-01 BUTTON (SEL)
64 3-236-921-01 PLATE (LCD), GROUND
* 65 3-229-751-01 SHEET (LCD.UP)
66 3-236-920-01 SHEET (LCD), DIFFUSION
67 X-3381-357-1 HOLDER (LCD) ASSY
68 3-236-902-01 PANEL, FRONT BACK
69 X-3380-054-2 CASE ASSY (for FRONT PANEL)
70 A-3337-076-A PANEL COMPLETE ASSY, FRONT (CA600)
70 A-3337-077-A PANEL COMPLETE ASSY, FRONT (CA600X)
* 71 3-227-293-01 SHEET (LCD)
72 3-236-926-01 CUSHION (LCD)
LCD501 1-804-623-11 DISPLAY PANEL, LIQUID CRYSTAL (CA600)
LCD501 1-804-623-21 DISPLAY PANEL, LIQUID CRYSTAL (CA600X)
#4 7-685-106-19 SCREW +P 2X10 TYPE2 NON-SLIT
