Sony CDX-CA850X - 2 Disassembly; Sub Panel Assy; CD Mechanism Block; Main Board

1010
CDX-CA850/CA850X/CA860X
4 ground point screw
(PTT 2.6x6)
5 ground point screws
(PTT 2.6x6)
1 PTT 2.6x4
6 MAIN board
3 PTT 2.6x
4
2 PTT 2.6x4
4 CN401
5 CD mechanism block
7 bracket (CD)
3
6 PTT 2.6x4
1 PTT 2.6x
4
2 PTT 2.6x4
1 PTT 2.6x6
2 PTT 2.6x6
4 two claws
3 claw
6 sub panel assy
5 CN701

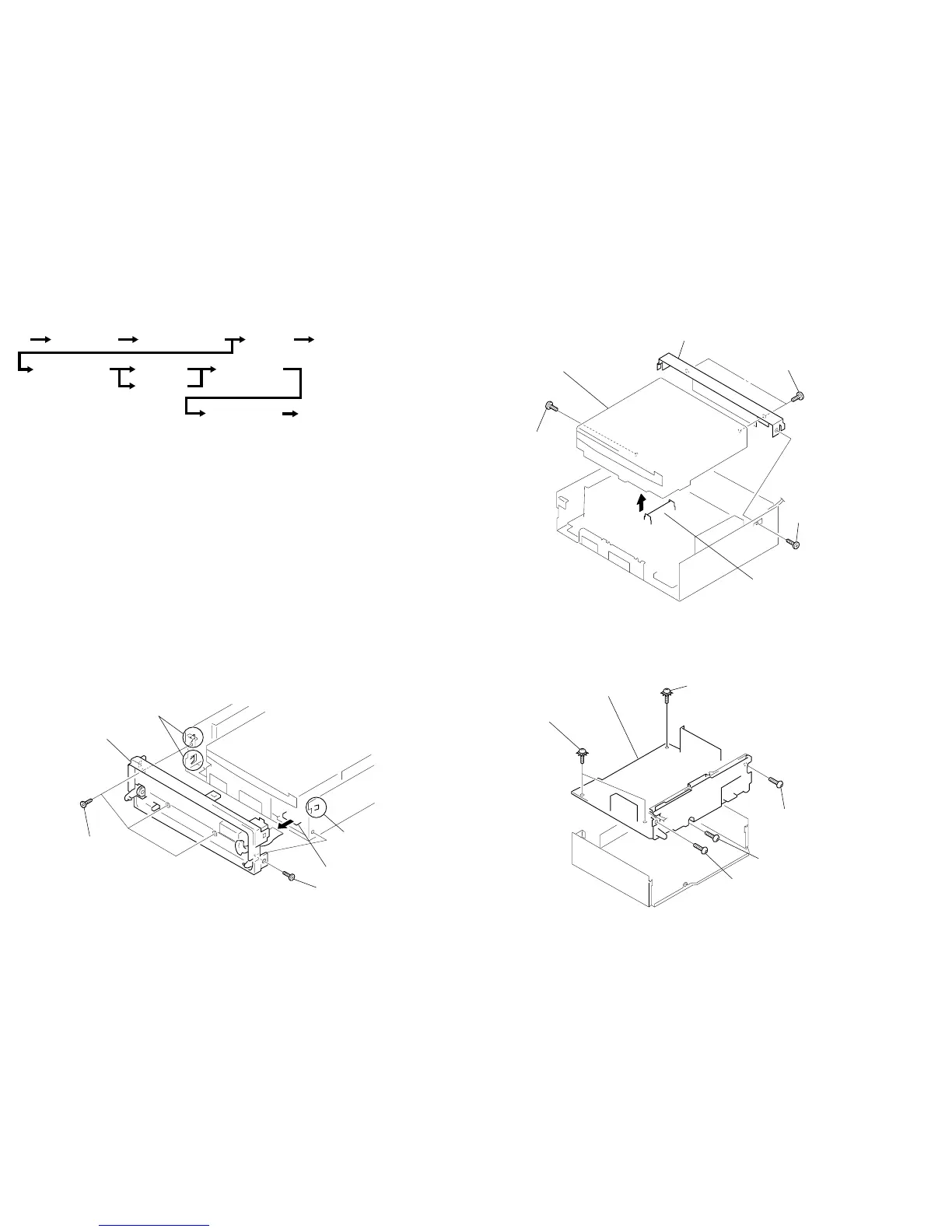

SECTION 2
DISASSEMBLY
Note : This equipment can be removed using the following procedure.
Note : Follow the disassembly procedure in the numerical order given.
2-1. SUB PANEL ASSY
2-2. CD MECHANISM BLOCK
2-3. MAIN BOARD
Set Sub Panel Assy CD Mechanism Block
Chassis (T) Assy lever Section
Servo Board
Arm Roller Assy
Chassis (OP) Assy Optical Pick-up Block
Main Board Heat Sink
