Sony CDX-CA850X - Schematic Diagram -Key Section

41 41
CDX-CA850/CA850X/CA860X
IC B/D
(Page 39)
Note:
• Voltage is dc with respect to ground under no-signal
(detuned) condition.
no mark : FM
• Refer to page 27 for Waveforms.

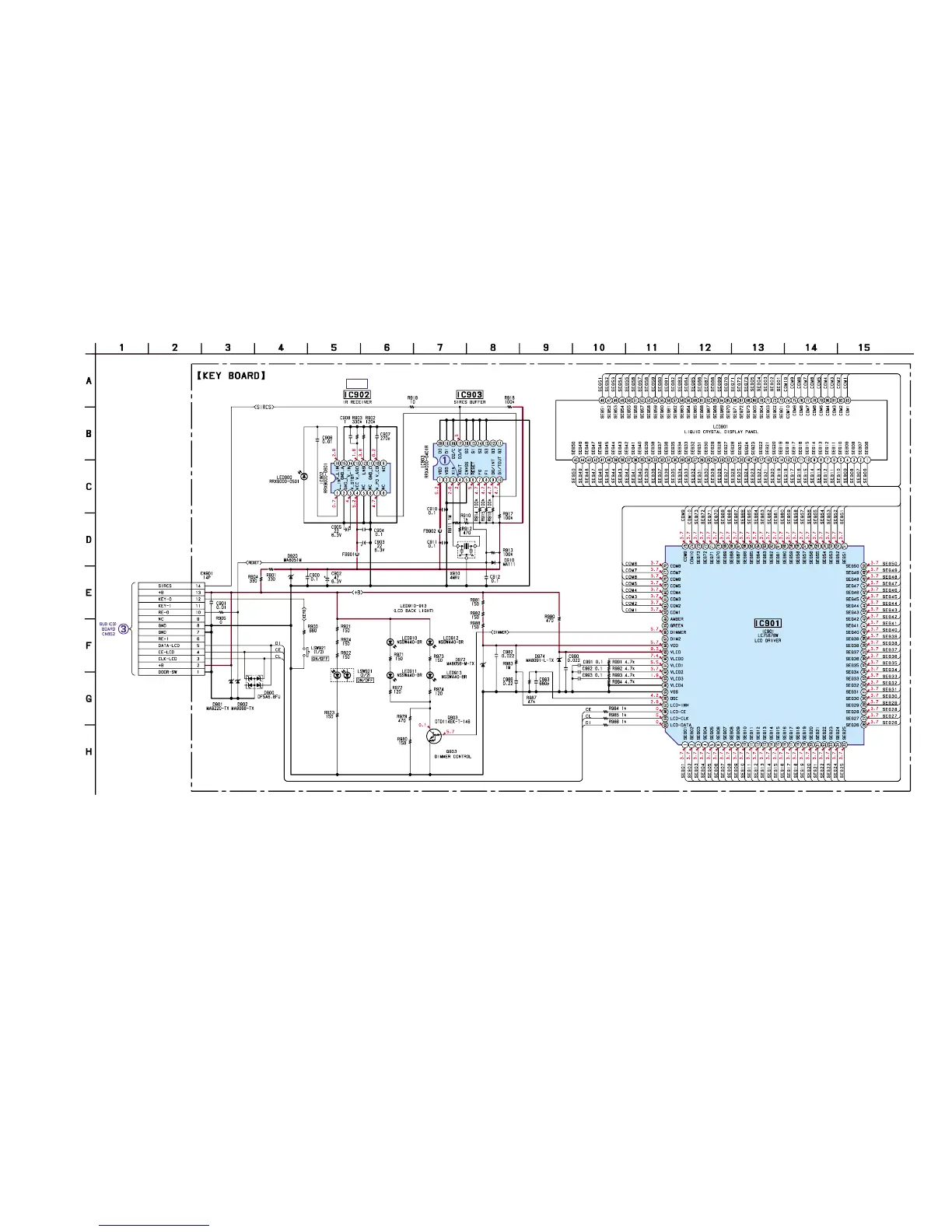

3-17. SCHEMATIC DIAGRAM — KEY SECTION — • Refer to page 43 for IC Block Diagrams.
