CDX-CA850/CA850X/CA860X

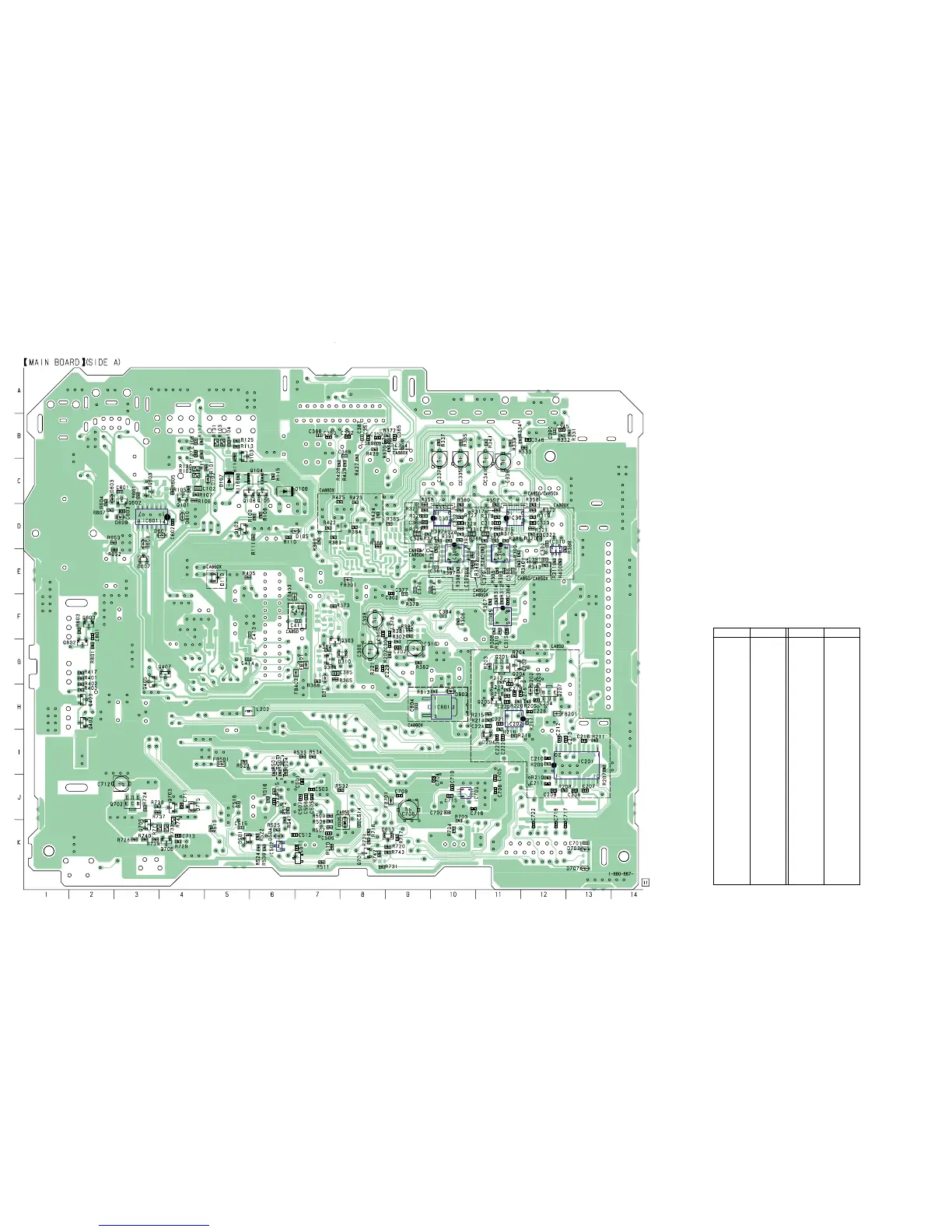

3-9. PRINTED WIRING BOARDS — MAIN SECTION —
CA860X
D102 C-5
D105 D-7
D106 C-7
D107 C-5
D110 E-5
D202 G-12
D203 G-12
D204 I-11
D310 G-8
D311 H-7
D501 K-5
D504 K-6
D505 K-7
D601 D-4
D603 C-2
D607 E-3
D608 D-3
D609 D-3
D610 D-4
D653 K-9
D703 K-13
D707 K-13
D715 J-4
D802 H-10
IC201 I-13
IC202 H-11
IC302 D-11
IC303 D-10
IC305 F-11
IC308 E-11
IC309 E-10
IC310 D-12
IC502 K-6
IC601 D-3
IC702 J-10
IC801 H-10
Q101 C-4
Q102 D-5
Q103 B-5
Q104 C-6
Q105 C-6
Q106 C-5
Q201 G-11
Q202 G-12
Q204 G-11
Q205 H-11
Q207 H-12
Q303 G-8
Q304 G-7
Q402 H-2
Q403 H-2
Q405 G-3
Q407 G-4
Q602 C-3
Q603 C-3
Q701 K-8
Q702 J-3
Q703 J-4
Q705 K-3
Q706 K-4
Q802 G-2
Q803 F-2
Ref. No. Location
• Semiconductor Location
Ref. No. Location
