Sony CDX-CA850X - Front Panel Section

47
CDX-CA850/CA850X/CA860X

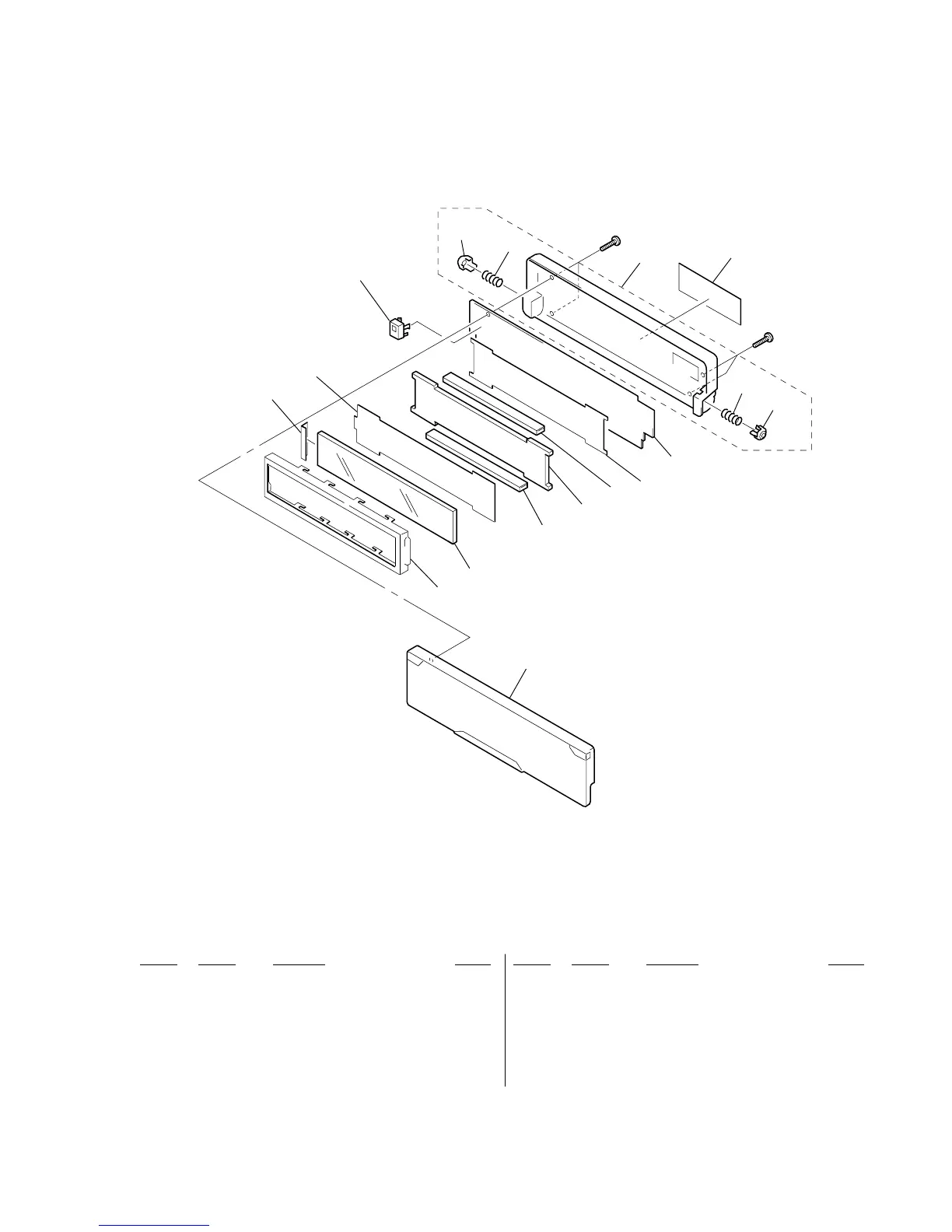

4-2. FRONT PANEL SECTION
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
not supplied
(KEY board)
not
supplied
LCD901
not
supplied
#8
#8
51
52
53
54
56
62
56
55
57
58
58
59
60
51 X-3380-575-1 PANEL ASSY, FRONT
* 52 3-227-279-01 PLATE (LCD), GROUND
* 53 3-230-625-01 SHEET
* 54 3-227-283-01 SHEET (ILLUMINATOR)
* 55 3-227-278-01 PLATE (LCD), LIGHT GUIDE
56 1-694-780-11 CONDUCTIVE BOARD, CONNECTION
* 57 3-227-284-01 SHEET (REFLECTOR)
58 3-031-319-01 SPRING (BEARING)
59 X-3380-118-1 PANEL ASSY, FRONT BACK
60 3-227-286-01 PLATE (FBP), ORNAMENTAL (CA850)
60 3-227-286-11 PLATE (FBP), ORNAMENTAL (CA850X)
60 3-227-286-21 PLATE (FBP), ORNAMENTAL (CA860X)
* 62 3-227-280-01 CASE (IR-T), SHIELD
LCD901 1-804-308-11 DISPLAY PANEL, LIQUID CRYSTAL
