Sony CDX-CA850X - Arm Roller Assy; Chassis (OP) Assy

13
CDX-CA850/CA850X/CA860X
1 tension spring (KF1)
8 compression spring (FL)
7 chassis (OP) assy
9 compression spring (FL)
2 tension spring (KR1)
5 Fit lever (D) in the
direction of the arrow.
3 damper (T)
4 damper (T)
6 Turn loading ring in the
direction of the arrow.
3 PS 2x3
4 LOAD board
1 tension spring (RA2)
2 arm roller assy
Fig. 1
retaining ring (roller)
arm
arm
washer(RA)
washer(RA)
bearing (roller)
bearing (roller)

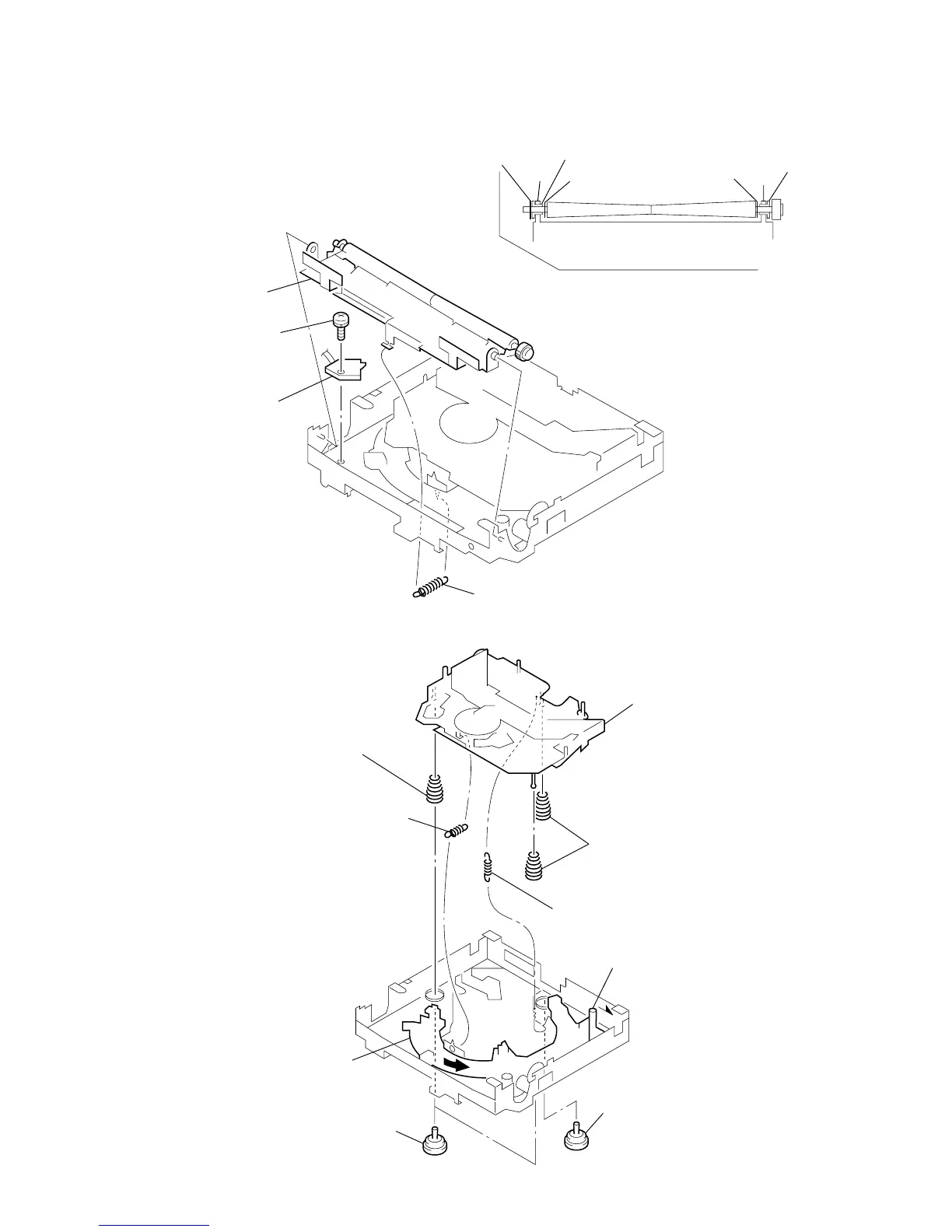

2-9. CHASSIS (OP) ASSY
2-8. ARM ROLLER ASSY
• When installing, take note of the positions
arm (roller) and washers. (Fig. 1)
