61
CDX-CA850/CA850X/CA860X
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
< CONNECTOR >
CN852 1-794-064-12 SOCKET, CONNECTOR 14P
< DIODE >
D851 8-719-078-81 DIODE DF5A6.8FU(TE85R)
D852 8-719-078-81 DIODE DF5A6.8FU(TE85R)
LED851 8-719-082-38 LED CL-270SR-C-TS (INSERT MARK)
< SWITCH >
LSW851 1-771-883-11 SWITCH, TACTILE (WITH LED) (Z)
< RESISTOR >
R855 1-219-286-11 METAL CHIP 680 2% 1/16W
R856 1-219-286-11 METAL CHIP 680 2% 1/16W
*************************************************************
MISCELLANEOUS
***************
9 1-776-207-72 CORD (WITH CONNECTOR) (POWER)
(CA850X/CA860X)
9 1-776-527-71 CORD (WITH CONNECTOR) (ISO) (POWER)
(CA850)
24 1-792-195-11 CABLE, FLEXIBLE FLAT (14 CORE)
201 X-3378-598-1 CHASSIS (OP) ASSY (including M901)
207 1-659-880-11 MOTOR FLEXIBLE BOARD
0 210 8-820-103-03 PICK-UP, OPTICAL KSS-720A/K1RP
212 1-676-707-21 PICK-UP FLEXIBLE BOARD
F901 1-532-877-11 FUSE (BLADE TYPE) (AUTO FUSE) 10A
M902 A-3291-674-A MOTOR ASSY, SLED (SLED)
M903 A-3315-039-A MOTOR SUB ASSY, LD (LOADING)
*************************************************************
ACCESSORIES & PACKING MATERIALS
********************************
1-476-546-31 REMOTE COMMANDER (RM-X113) (CA850)
1-476-546-41 REMOTE COMMANDER (RM-X112)
(CA850X/CA860X)
1-476-589-11 REMOTE COMMANDER (RM-X5S)
3-020-953-01 LABEL (MODE) (for RM-X5S)
3-229-196-11 MANUAL, INSTRUCTION (ENGLISH,FRENCH,
DUTCH,ITALIAN,GERMAN) (CA850)
3-229-196-21 MANUAL, INSTRUCTION (ENGLISH,SPANISH,
SWEDISH,PORTUGUESE,GREEK,RUSSIAN)
3-229-198-11 MANUAL, INSTRUCTION (ENGLISH,FRENCH,
SPANISH) (CA850X/CA860X)
3-229-199-11 MANUAL, INSTRUCTION, INSTALL (ENGLISH,
FRENCH,SPANISH) (CA850X/CA860X)
3-229-200-11 MANUAL, INSTRUCTION, INSTALL (ENGLISH,
FRENCH,DUTCH,ITALIAN,GERMAN)
(CA850)
3-229-200-21 MANUAL, INSTRUCTION, INSTALL (ENGLISH,
SPANISH,SWEDISH,PORTUGUESE,
GREEK,RUSSIAN)
3-230-549-01 LID, BATTERY CASE (for RM-X112/X113)
X-3378-490-1 CASE (PANEL) ASSY (for FRONT PANEL)
*************************************************************
**************
HARDWARE LIST
**************
#1 7-685-790-01 SCREW +PTT 2.6X4 (S)
#2 7-685-792-09 SCREW +PTT 2.6X6 (S)
#3 7-621-772-20 SCREW +B 2X5
#4 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
#5 7-685-794-09 SCREW +PTT 2.6X10 (S)
#6 7-685-793-09 SCREW +PTT 2.6X8 (S)
#7 7-685-797-09 SCREW +PTT 2.6X16 (S)
#8 7-685-105-19 SCREW +P 2X8 TYPE2 NON-SLIT
#9 7-627-553-37 SCREW, PRECISION +P 2X3 TYPE3
#10 7-627-553-17 SCREW, PRECISION +P 2X2 TYPE3
#11 7-628-253-00 SCREW +PS 2X4
#12 7-627-850-28 SCREW, PRECISION +P 1.4X3
#13 7-628-253-15 SCREW +PS 2X5
*************************************************************

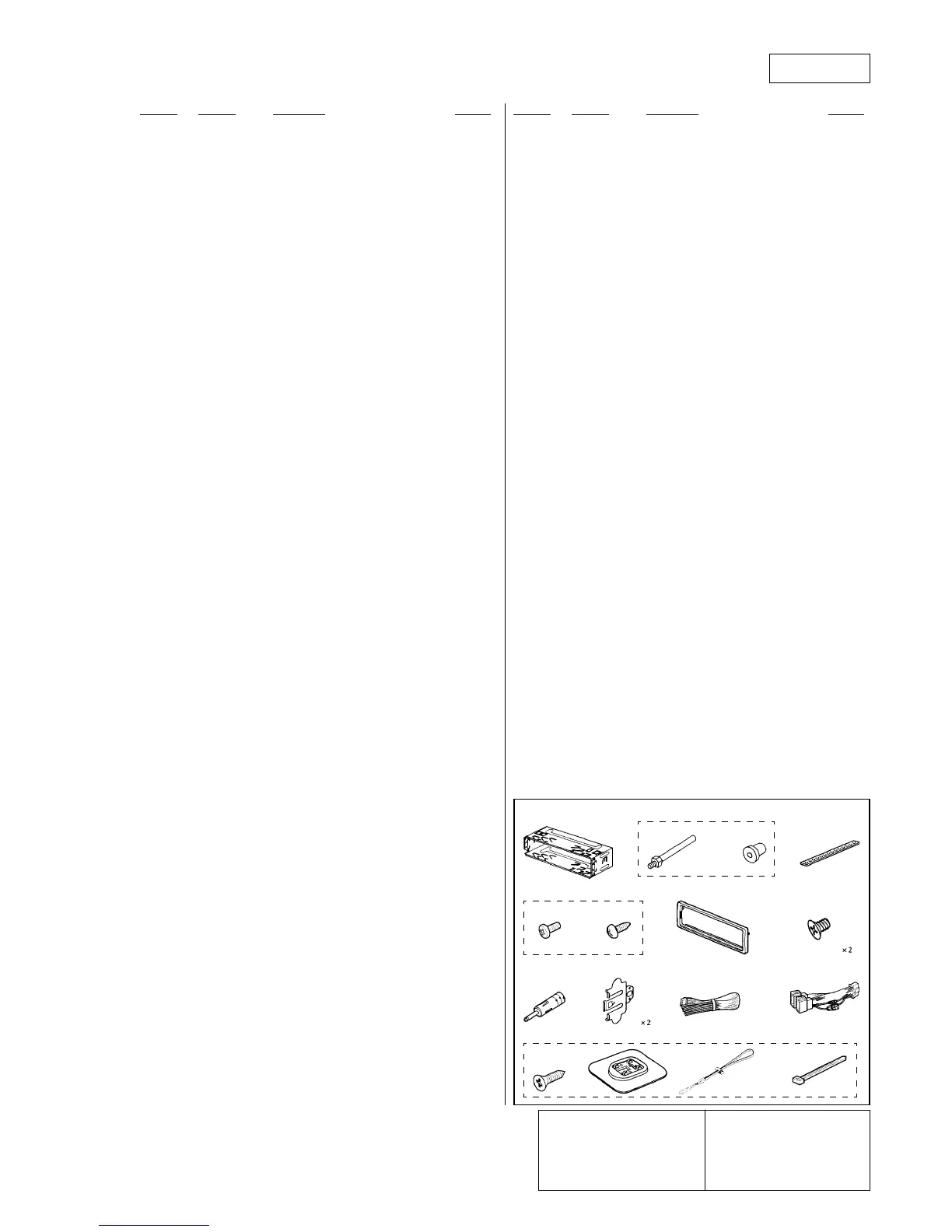

PARTS FOR INSTALLATION AND CONNECTIONS
***************************************
251 X-3373-602-1 FRAME ASSY
252 3-386-828-01 SCREW, FITTING (CA850)
253 3-349-410-01 BUSHING (CA850)
254 X-3366-405-1 SCREW ASSY (EXP), FITTING (CA850)
255 3-924-961-01 SUPPORT (ND), FITTING (CA850X/CA860X)
256 7-682-160-01 SCREW +P 4X6 (CA850X/CA860X)
257 X-3368-725-1 SCREW ASSY, FITTING (CA850X/CA860X)
258 3-040-979-01 COLLAR
259 3-934-325-01 SCREW, +K (5X8) TAPPING
260 1-465-459-21 ADAPTOR, ANTENNA (CA850)
261 3-041-000-01 SPRING, FITTING
262 1-776-207-72 CORD (WITH CONNECTOR) (POWER)
(CA850X/CA860X)
263 1-776-527-71 CORD (WITH CONNECTOR) (ISO) (POWER)
(CA850)
264 7-685-248-14 SCREW +KTP 3X12 TYPE4 (for RM-X5S)
265 3-231-381-01 STRAP (ROTARY COMMANDER) (for RM-X5S)
* 266 3-671-893-00 CLAMP (LOW TYPE) (for RM-X5S)
267 X-3373-432-1 BRACKET ASSY (for RM-X5S)
SUB (CD)
252
251
257
253
262260
254
256
255
258 259
263261
267
265 266264
To Next Page
