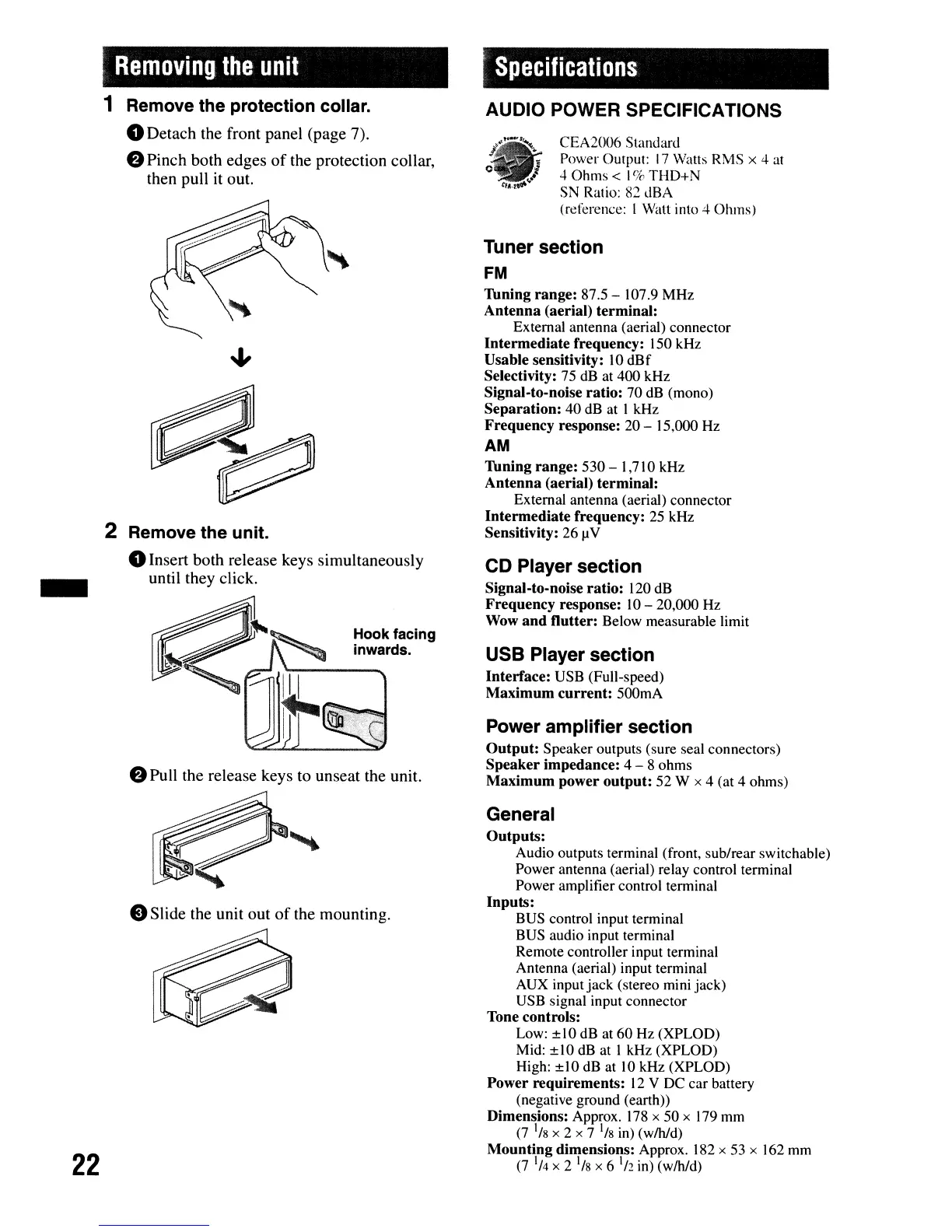

Removing
the
unit
1 Remove the protection collar.
oDetach the front panel (page 7).
ePinch both edges
of
the protection collar,
then pull it out.
2 Remove the unit.
oInsert both release keys simultaneously
until they click.
Hook facing
inwards.
ePull the release keys to unseat the unit.
Specifications
AUDIO POWER SPECIFICATIONS
CEA2006
Standard
Power Output:
17
Watts RMS x 4 at
4
Ohms
< 1% TI-ID+N
SN Ratio: 82 lIBA
(reference: I Watt into 4
Ohms)
Tuner section
FM
Thning
range:
87.5 - 107.9
MHz
Antenna
(aerial)
terminal:
External antenna (aerial) connector
Intermediate
frequency:
150 kHz
Usable
sensitivity:
10
dBf
Selectivity: 75 dB at 400
kHz
Signal-to-noise
ratio:
70
dB (mono)
Separation:
40
dB at I kHz
Frequency
response:
20 - 15,000 Hz
AM
Thning
range:
530
- 1,710 kHz
Antenna
(aerial)
terminal:
External antenna (aerial) connector
Intermediate
frequency:
25
kHz
Sensitivity:
26
~V
CD
Player section
Signal-to-noise
ratio:
120 dB
Frequency
response:
10 - 20,000
Hz
Wow
and
flutter:
Below measurable limit
USB Player section
Interface:
USB (Full-speed)
Maximum
current:
500mA
Power amplifier section
Output:
Speaker outputs (sure seal connectors)
Speaker
impedance:
4 - 8
ohms
Maximum
power
output:
52 W x 4 (at 4
ohms)
22
eSlide the unit out
of
the mounting.
General
Outputs:
Audio outputs terminal (front, sub/rear switchable)
Power antenna (aerial) relay control terminal
Power amplifier control tenninal
Inputs:
BUS control input terminal
BUS
audio input terminal
Remote controller input terminal
Antenna (aerial) input terminal
AUX input
jack
(stereo mini jack)
USB signal input connector
Tone
controls:
Low: ±IO dB at
60
Hz
(XPLOD)
Mid: ±IO dB at 1 kHz (XPLOD)
High: ±IO dB at 10 kHz (XPLOD)
Power
requirements:
12
V
DC
car
battery
(negative ground (earth))
Dimensions:
Approx. 178 x 50 x 179
mm
(7 '/8 x 2 x 7 '/8 in) (w/h/d)
Mounting
dimensions:
Approx. 182 x 53 x 162
mm
(7 '/4 x 2 '/8 x 6 '/2 in) (w/h/d)
