Sony CDX-L410 - Front Panel Section

29
CDX-L410

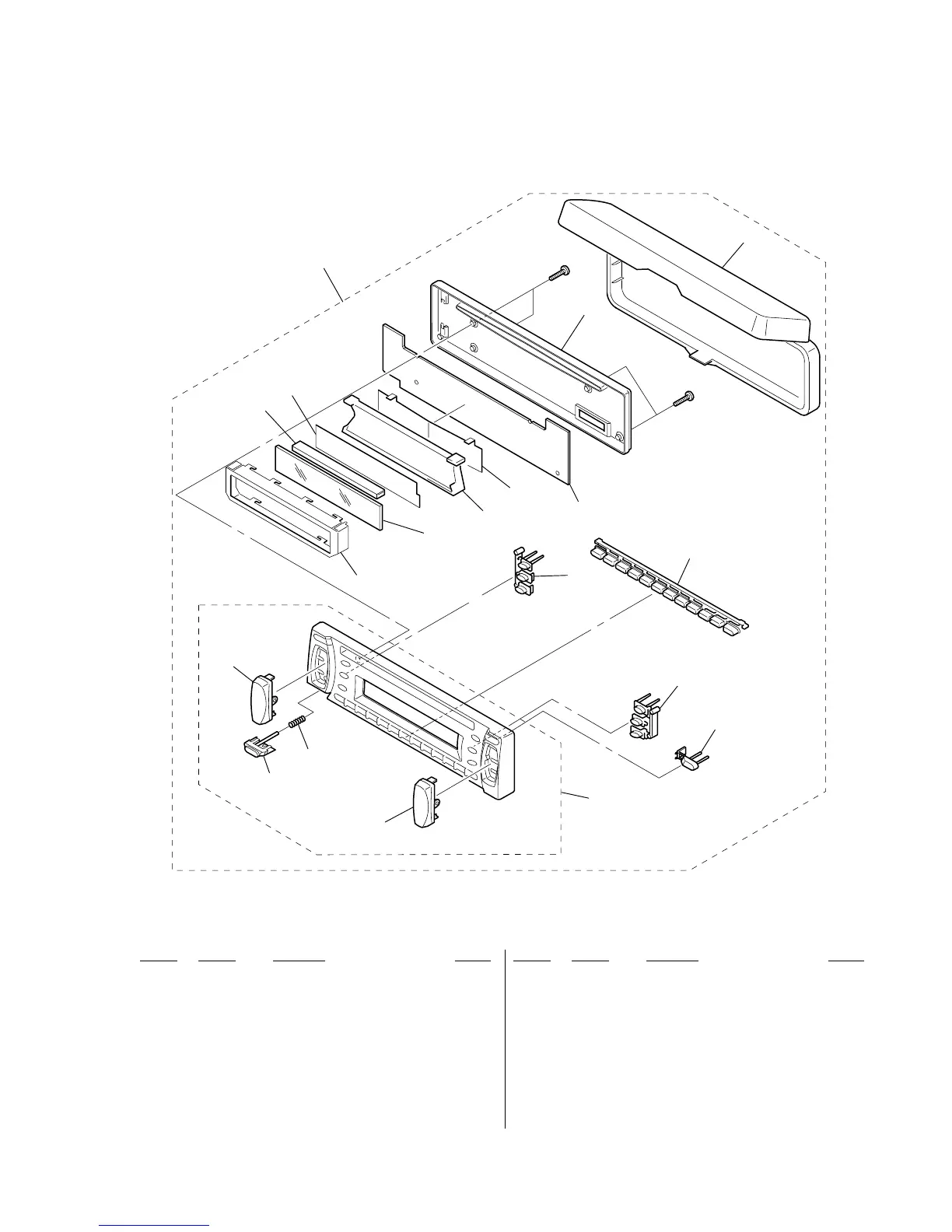

4-2. FRONT PANEL SECTION
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
51 X-3381-288-1 PANEL SUB ASSY, FRONT
52 3-224-869-11 BUTTON (RELEASE/U)
53 3-231-816-01 SPRING (RELEASE)
54 3-235-389-01 BUTTON (W) (+/–)
55 3-235-383-11 BUTTON (EJECT)
56 3-235-390-01 BUTTON (W) (S/A)
57 3-235-385-01 BUTTON (R)
58 3-235-384-01 BUTTON (L)
59 3-225-123-01 BUTTON (PRESET/CE)
60 3-235-382-01 PLATE (LCD), GROUND
61 1-694-781-11 CONDUCTIVE BOARD, CONNECTION
62 3-235-387-11 ILLUMINATOR (LCD)
63 3-235-381-01 PLATE (LCD), LIGHT GUIDE
64 3-235-388-01 REFLECTOR (LCD)
65 3-235-380-01 PANEL (CD), FRONT BACK
66 X-3378-490-2 CASE (PANEL) ASSY (for FRONT PANEL)
* 67 A-3307-999-A PANEL COMPLETE ASSY, FRONT (AMBER)
* 67 A-3337-001-A PANEL COMPLETE ASSY, FRONT (GREEN)
LCD901 1-804-625-11 DISPLAY PANEL, LIQUID CRYSTAL
#6 7-685-106-19 SCREW +P 2X10 TYPE2 NON-SLIT
#6
#6
not supplied
(KEY board)
LCD901
59
60
61
62
63
64
65
66
67
51
52
53
56
54
55
57
58
