Sony CDX-L410 - CD Mechanism Section (3)

9
CDX-L410
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

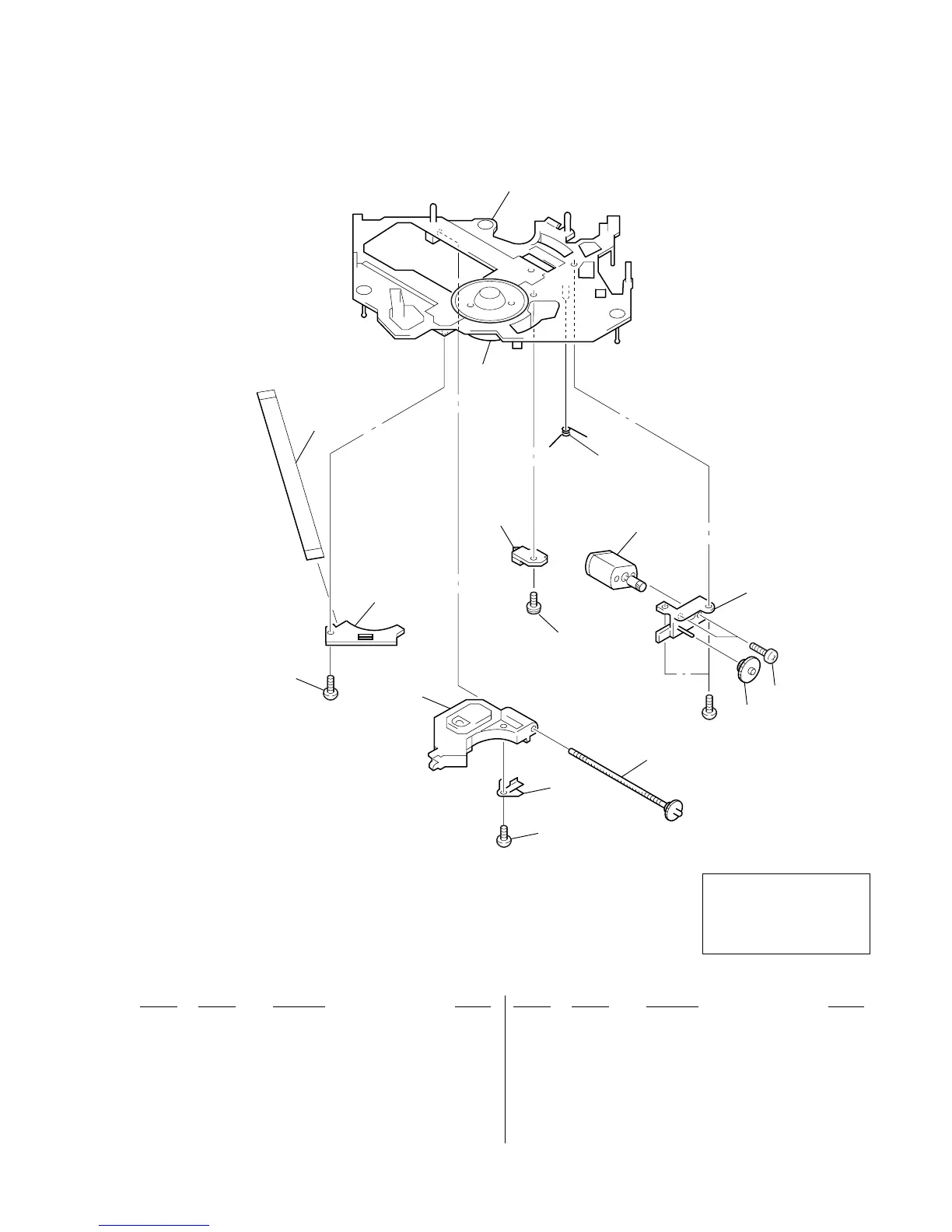

3-3. CD MECHANISM SECTION (3)
(MG-393XA-121//Q)
(MG-393XC-121//Q)
201 X-3378-598-3 CHASSIS (OP) ASSY (including M901)
202 3-043-494-01 SPRING (SL), TORSION
203 3-040-170-01 BASE (DRIVING)
204 3-040-419-01 GEAR (MIDWAY)
205 A-3291-669-A SHAFT (FEED) ASSY
206 3-025-743-01 SPRING (FEED), LEAF
207 1-683-665-11 MOTOR FLEXIBLE BOARD
208 3-909-607-01 SCREW
0 209 8-820-103-11 OPTICAL PICK-UP KSS-720A/C-RP (MG-393XA)
0 209 8-820-165-06 OPTICAL PICK-UP KSS-721A/C-RP (MG-393XC)
210 3-338-737-01 SCREW (2X3), +PS
211 3-241-673-01 SCREW (SM), SPECIAL
212 3-909-607-01 SCREW (MG-393XC)
212 7-627-553-37 SCREW, PRECISION +P 2X3 TYPE3 (MG-393XA)
M902 A-3291-674-A MOTOR ASSY, SLED (SLED)
#7 7-627-553-37 SCREW, PRECISION +P 2X3 TYPE3
M902
M901
#7
206
212
210
208
209
205
204
211
203
202
207
201
not supplied
(SUB (CD) board)
not
supplied
(LIMIT board)
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
