TABLE OF CONTENTS
1. Schematic Diagram –CD Mechanism Section– ...................... 3
2. Printed Wiring Boards –CD Mechanism Section– .................. 4
3. Exploded Views ....................................................................... 7
3-1. CD Mechanism Section (1) ................................................. 7
3-2. CD Mechanism Section (2) ................................................. 8
3-3. CD Mechanism Section (3) ................................................. 9
4. Electrical Parts List................................................................ 10
CDX-L410
THIS NOTE IS COMMON FOR PRINTED WIRING
BOARDS AND SCHEMATIC DIAGRAMS.
(In addition to this, the necessary note is
printed in each block.)
for schematic diagram:
• All capacitors are in µF unless otherwise noted. pF: µµF
50 WV or less are not indicated except for electrolytics
and tantalums.
• All resistors are in Ω and
1
/
4
W or less unless otherwise
specified.
•%: indicates tolerance.
•
f
: internal component.
• C : panel designation.
• A : B+ Line.
• Power voltage is dc 14.4V and fed with regulated dc power
supply from ACC and BATT cords.
•Voltages are taken with a VOM (Input impedance 10 MΩ).
Voltage variations may be noted due to normal produc-
tion tolerances.
•Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal produc-
tion tolerances.
• Circled numbers refer to waveforms.
• Signal path.
J : CD
for printed wiring boards:
• X : parts extracted from the component side.
• Y : parts extracted from the conductor side.
•
a
: Through hole.
• : Pattern from the side which enables seeing.
(The other layer’s patterns are not indicated.)
Note: The components identified by mark 0 or dotted line
with mark 0 are critical for safety.
Replace only with part number specified.
Caution:
Pattern face side: Parts on the pattern face side seen from the
(Side B) pattern face are indicated.
Parts face side: Parts on the parts face side seen from the
(Side A) parts face are indicated.
• (( )) : Refer to page of Service manual.

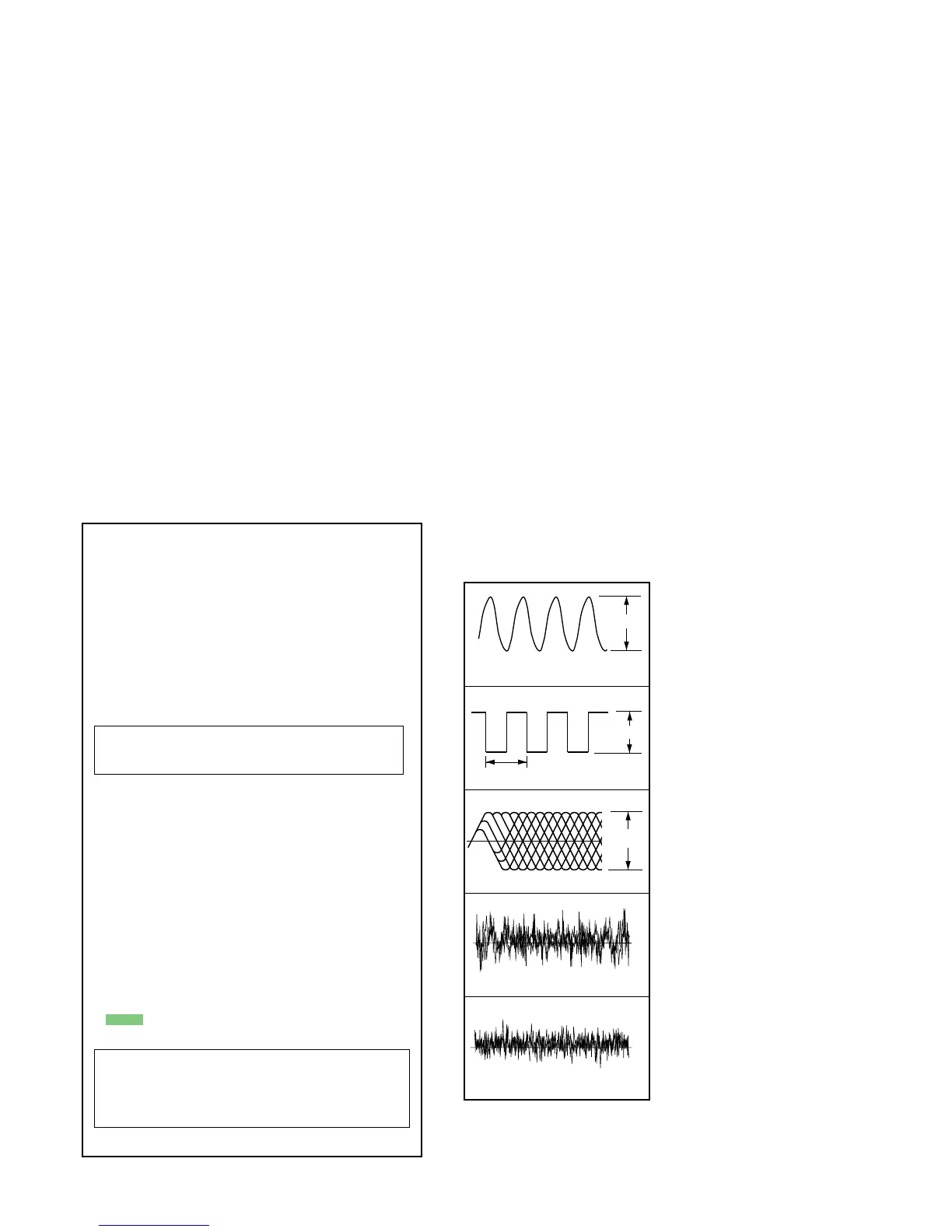

• Waveforms
— Servo Board —
(MODE: CD PLAY)
1
2
3
IC1
ts
(PACK)
IC1
uj
(RFO)
1.5Vp-p
4
Approx. 100mVp-p
IC1
oa
(FEO)
0V
5
Approx. 100mVp-p
IC1
od
(TEO)
1.8Vp-p
16.9344MHz
IC1
wd
(XTAL)
5Vp-p
0V
3.3msec
To Next Page
