Sony CDX-L410 - 3 Exploded Views; CD Mechanism Section (1)

7
CDX-L410
3. EXPLODED VIEWS
NOTE:
• The mechanical parts with no reference
number in the exploded views are not supplied.
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.

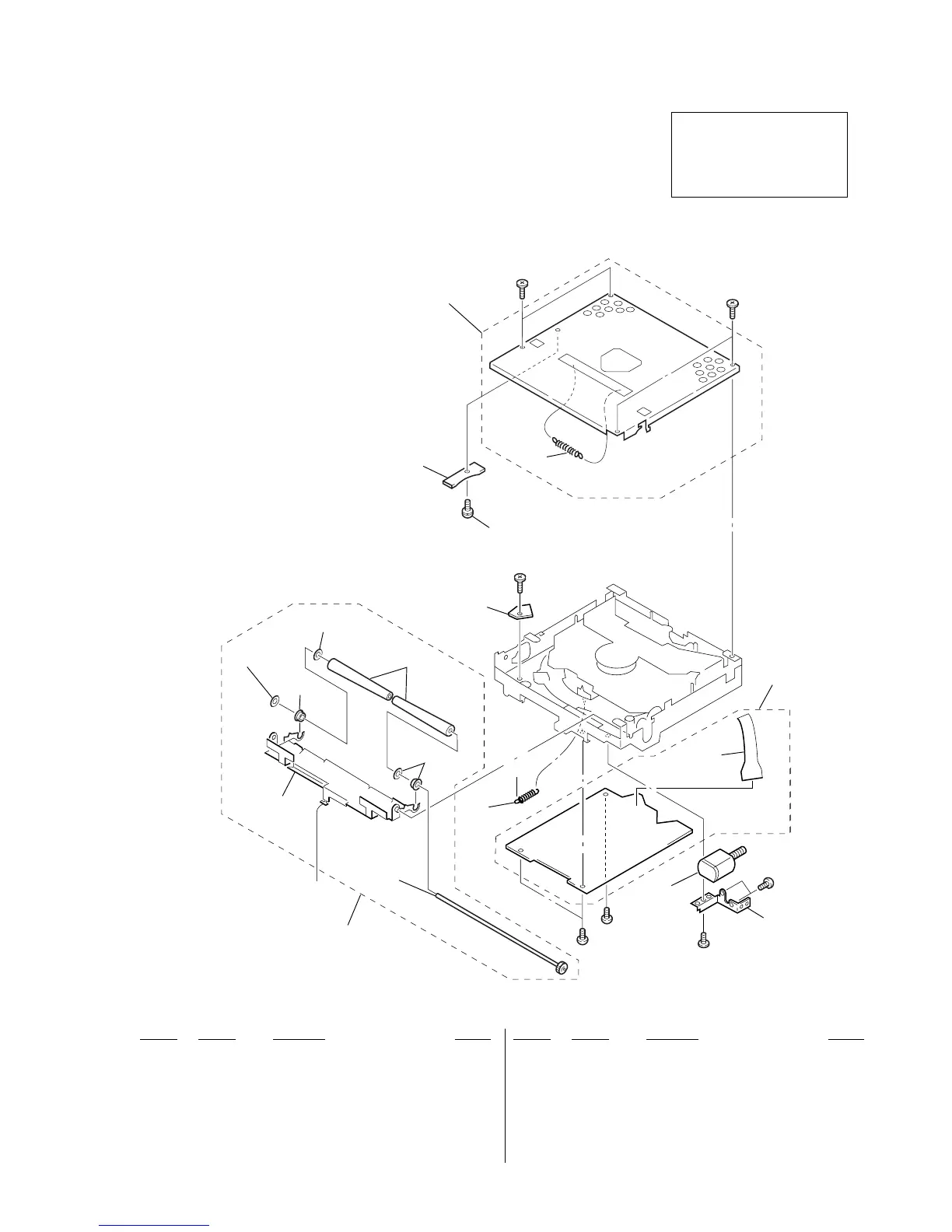

3-1. CD MECHANISM SECTION (1)
(MG-393XA-121//Q)
(MG-393XC-121//Q)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
101 A-3315-247-B CHASSIS (T.U) ASSY
102 3-931-909-01 SPRING (LR), TENSION
103 3-931-913-11 RING (ROLLER), RETAINING
104 3-338-737-01 SCREW (2X3), +PS
105 A-3315-040-A ROLLER ASSY, ARM
106 A-3283-270-A SERVO BOARD, COMPLETE
107 1-683-666-12 PICK-UP FLEXIBLE BOARD
* 108 3-039-629-02 BRACKET (MOTOR)
109 3-225-784-01 SPRING (RA3), TENSION
110 3-933-152-03 ROLLER (S)
M903 A-3315-039-A MOTOR SUB ASSY, LD (LOADING)
#7 7-627-553-37 SCREW, PRECISION +P 2X3 TYPE3
#8 7-627-553-17 SCREW, PRECISION +P 2X2 TYPE3
#9 7-685-781-09 SCREW +PTT 2X4 (S)
101
102
104
105
103
109
106
110
108
107
#7
#7
#9
#9
#7
#8
M903
C
C
not supplied
not supplied
not supplied
(DISC IN board)
not supplied
(LOAD board)
not supplied
not supplied
not
supplied
#9
• Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
