Sony CDX-L410 - CD Mechanism Section (3)

32
CDX-L410

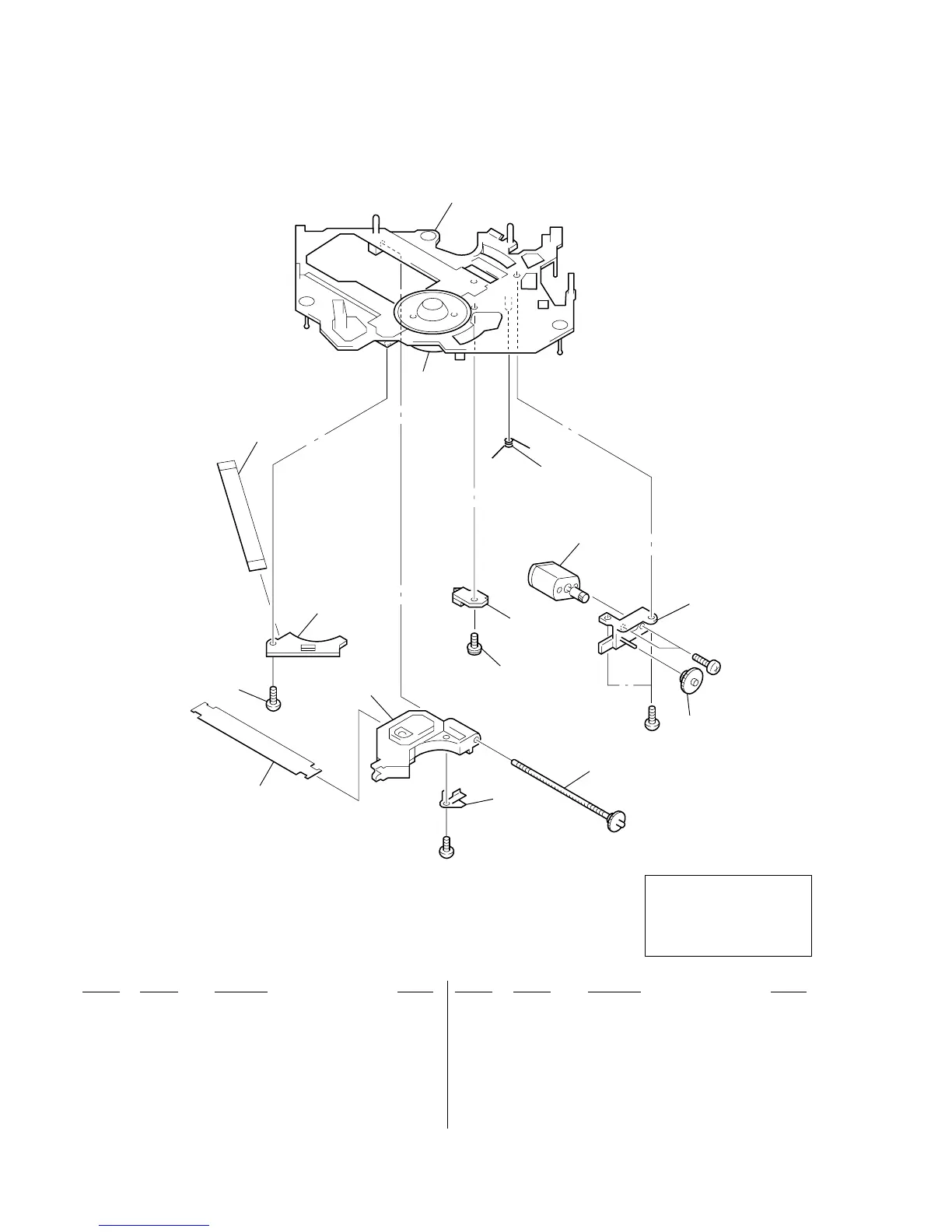

4-5. CD MECHANISM SECTION (3)
(MG-393X-121//Q)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
201 X-3378-598-2 CHASSIS (OP) ASSY (including M901)
202 3-043-494-01 SPRING (SL), TORSION
203 3-040-170-01 BASE (DRIVING)
204 3-040-419-01 GEAR (MIDWAY)
* 205 1-659-835-12 LIMIT BOARD
206 3-338-737-01 SCREW (2X3), +PS
207 1-659-880-11 MOTOR FLEXIBLE BOARD
* 208 1-659-834-11 SUB BOARD
209 3-909-607-01 SCREW
0 210 8-820-103-11 PICK-UP, OPTICAL KSS-720A/C-RP
211 3-025-743-01 SPRING (FEED), LEAF
212 1-676-707-21 PICK-UP FLEXIBLE BOARD
213 A-3291-669-A SHAFT (FEED) ASSY
M902 A-3291-674-A MOTOR ASSY, SLED (SLED)
#7 7-627-850-28 SCREW, PRECISION +P 1.4X3
#9 7-627-553-37 SCREW, PRECISION +P 2X3 TYPE3
M902
#9
#9
#7
212
211
209
210
213
208
205
206
204
203
202
207
201
M901
The components identified by
mark 0 or dotted line with mark.
0 are critical for safety.
Replace only with part number
specified.
